Volvo V50 Wiring Diagram

TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 23
Relays

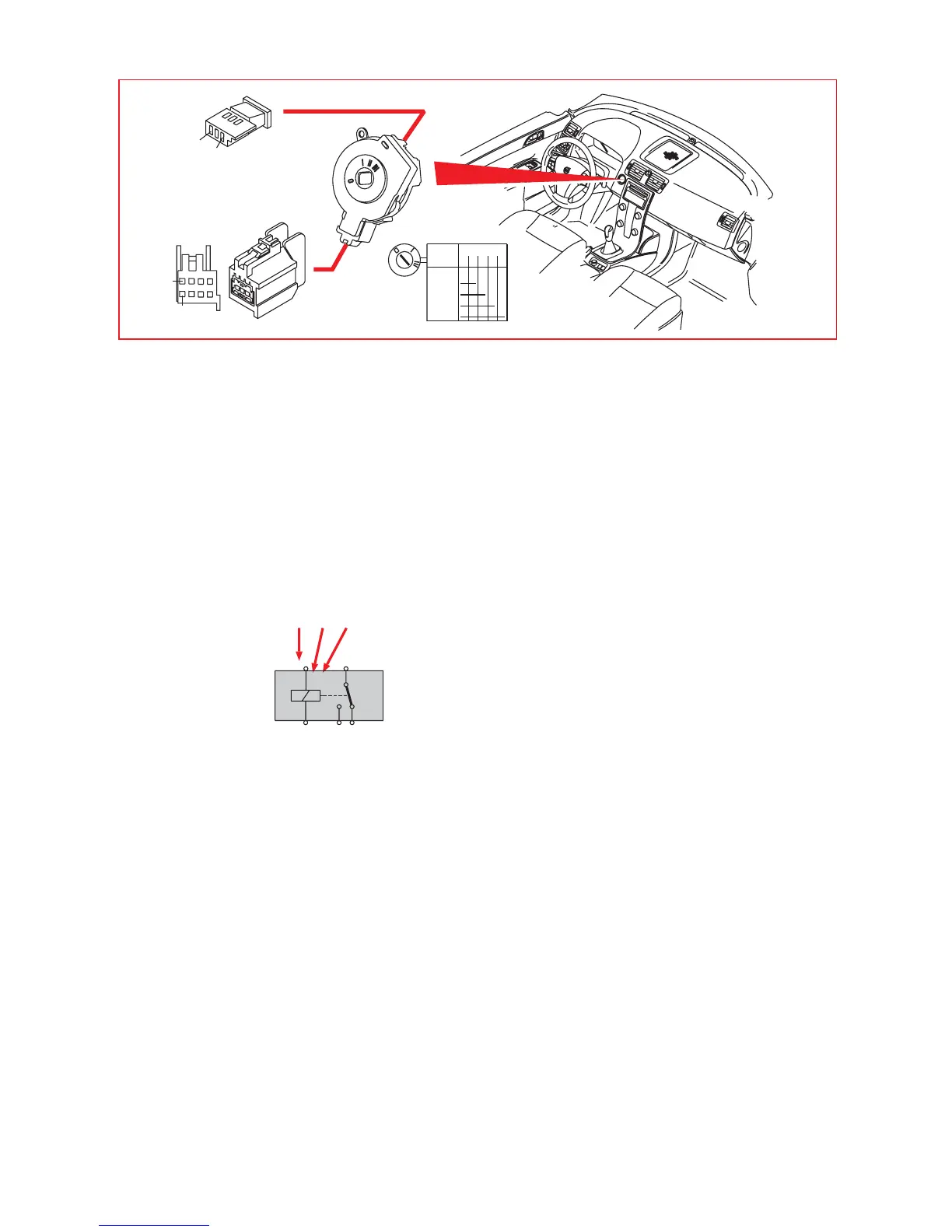

Ignition switch and relays
B
A
Position
Key Out
0
II
I
III
X
Terminal
30 S X 15
X
XX
X
XX
XX
X
XX
X
50
X
4
8
1
3
G030193
Relays, general
The diagram indicates two or three different designations for the relay’s position. This
is described below.
A = Corresponds to the position on the back
of the relay box (wiring side)
B = Corresponds to the position on the relay.
C = An old designation that may be found on
the relay
ABC
4
2(85)
3
5(87)
2
1(86)
4(87a)
5
3(30)
1
