Volvo V50 Wiring Diagram

TP 39129202 C30/S40 (04-)/V50/C70 (06-) 2009 12
F30
F11
F8
F17
F15
F7
F13
F16
F9
F18
F14
F12
F10
F6
F5
F4
F3
F2
F1
F24 F21 F20 F22
F31
F25
F32
F33
F34
F35
F36
F29
F19
F28
F27 F26 F23
G030187

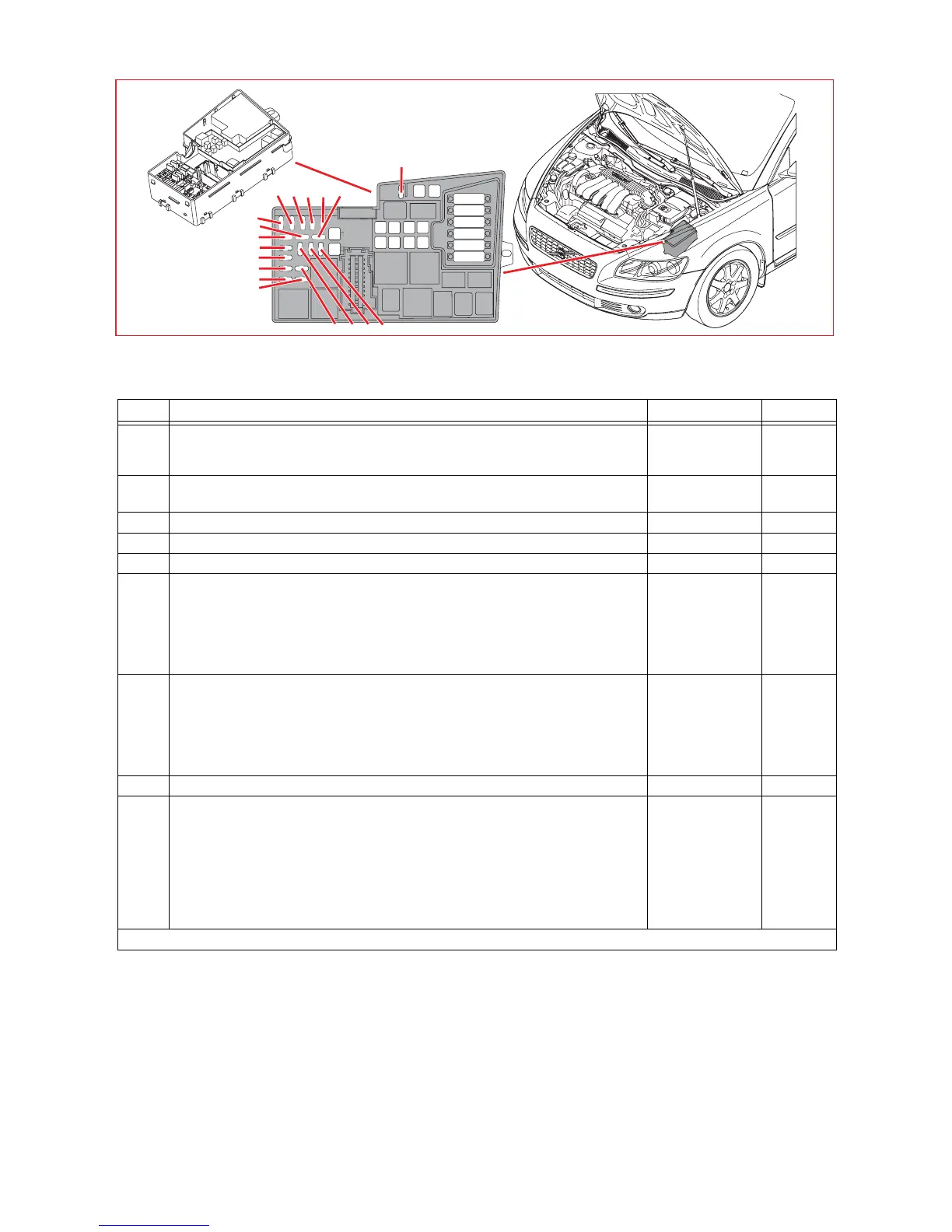

Fuses
Distribution box in engine compartment F11-F18
15/31 Distribution box in engine compartment
No. Fuse function via A
F11 2/182 Relay, headlight washer motor
4/59 Convertible Roof Module (CRM), C70
6/104 Pump, high pressure headlight washer
-
-
2/182
20
F12 2/82 Relay, heated rear window
9/2 Rear window defroster
-
2/82, 16/141
30
F13 6/25 Starter motor 2/35 30
F14 4/110 Trailer Module (TRM) - 40
F15 4/59 Convertible Roof Module (CRM), C70 30
F16 2/159 Infotainment relay, S40/V50/C30
16/105 Audio module (AUD), S40/V50/C30
F22 Fuse, engine compartment distribution box, S40/V50/C30
F43 Fuse in the Central Electronic Module (CEM), S40/V50/C30
F64 Fuse in the Central Electronic Module (CEM), S40/V50/C30
F65-F67 Fuses in the Central Electronic Module (CEM), S40/V50/C30
-
-
-
-
-
2/159
30
F16 2/159 Infotainment relay, C70
16/105 Audio module (AUD), C70
F22 Fuse, engine compartment distribution box, C70
F43 Fuse in the Central Electronic Module (CEM), C70
F64 Fuse in the Central Electronic Module (CEM), C70
F65-F67 Fuses in the Central Electronic Module (CEM), C70
-
-
-
-
-
2/159
40
F17 6/1 Wiper Motor Module (WMM) - 30
F18 2/80 Relay, reversing light
2/89 Relay, interior lighting
4/56 Central Electronic Module (CEM)
F46-F47 Fuses in the Central Electronic Module (CEM)
F56-F57 Fuses in the Central Electronic Module (CEM)
F79 Fuse in the Central Electronic Module (CEM)
F81-F83 Fuses in the Central Electronic Module (CEM)
F86 Fuse in the Central Electronic Module (CEM)
-
-
-
2/89
-
2/80
-
2/89
40
continues
