TP 39129202 C30/S40 (04-)/V5
0/C70 (06-) 2009
121
Group 37 Wiring and fuses

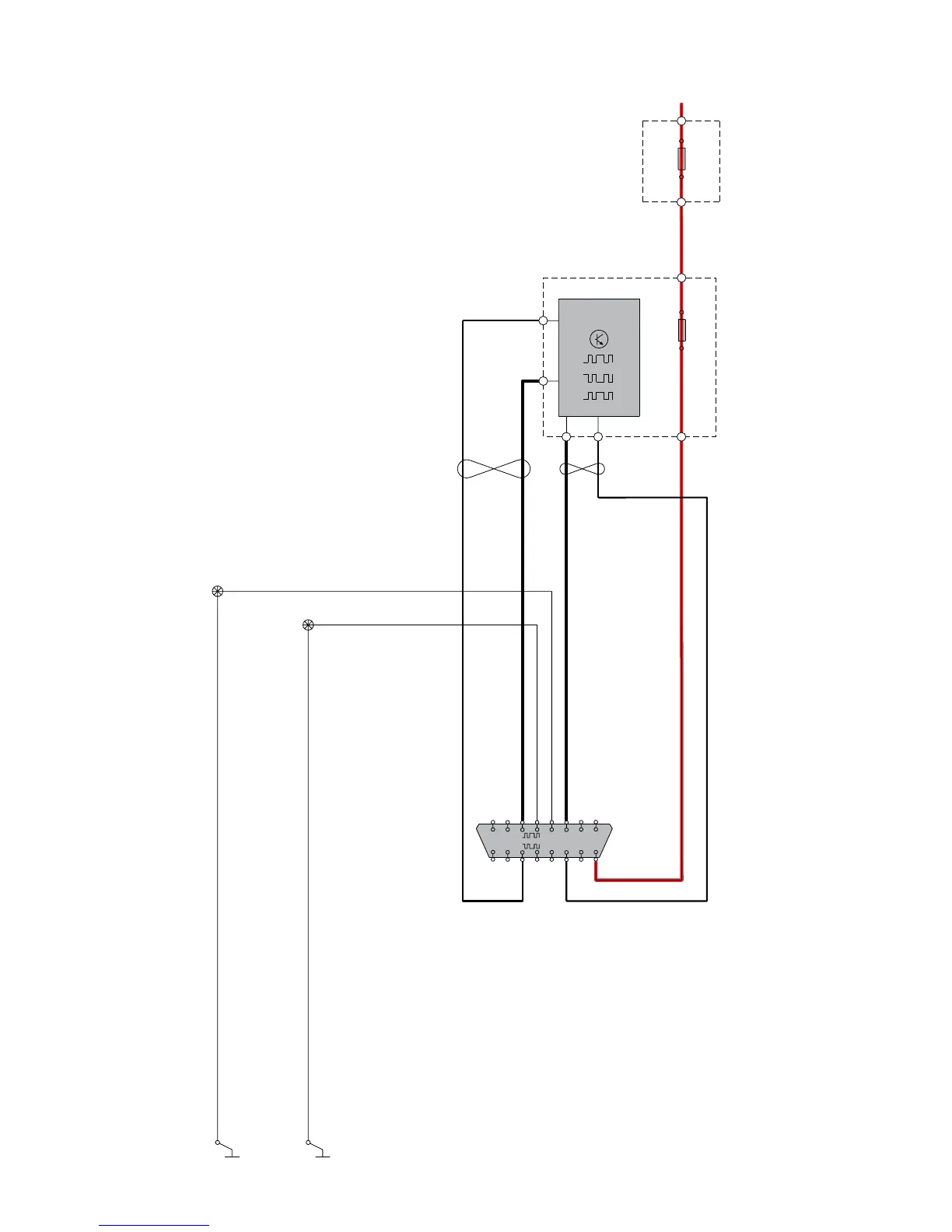

Diagnostics system
3
17/13
14
11
4/56
CEM
B:12
B:1
1
B:16
B:15
31/83
BU-RD
BU-RD
OG
GY
-RD
GY
-RD
45
6
16
BK
HISPEED
CAN
CAN
LOSPEED
2
F57
1
30+
2
1
F18
E:21
A:4
63/5
31/6
BK
63/6
BK-OG
BK
LIN
RD-YE
15/31
G030045
120
122
Table of Contents
Default Chapter
1
Wiring Diagram
1
Vehicles with SRS (Airbag)/Sips Bag/IC
2
(Inflatable Curtain)
2
Table of Contents
3
Abbreviations
6
How to Use the Wiring Diagrams 1:2
7
How to Use Wiring Diagrams 2:2
8
Electrical Distribution 1:2
9
Fuses
11
Distribution Box in Engine Compartment F1-F10
11
Distribution Box in Engine Compartment F11-F18
12
Distribution Box in Engine Compartment F20-F31
13
Distribution Box in Engine Compartment F32-F34
14
Distribution Box in Engine Compartment F35-FH1
15
Central Electronic Module (CEM) F43-F48
16
Central Electronic Module (CEM) F49-F61
17
Central Electronic Module (CEM) F62-F69
18
Central Electronic Module (CEM) F73-F85
19
Fuses in the Central Electronic Module (CEM) F86
20
Battery PF1-PF2
21
Fuses in Holder
22
Relays
23
Ignition Switch and Relays
23
Distribution Box in Engine Compartment R2-R14
24
Central Electronic Module (CEM) R15-R18
25
Central Electronic Module (CEM) R1-R11B
26
Other Relays
27
Ground Connections Overview
28
31/3 - 31/10 Cont
29
31/12 - 31/66 Cont
31
Ground Connections in Chassis
36
Control Modules Overview of Locations
37
Overview of Designations
38
Central Electronic Module (CEM) 1:2
39
Data Communication, Low Speed CAN 1:2
41
Data Communication, High Speed CAN
43
Data Communication most
44
Data Communication LIN 1:2
45
Start Control Module (SCU)
47
Accessory Electronic Module (AEM)
48
Group 23 Fuel System Engine Management System, 4-Cyl. 1.6L 1:2
49
Tp 39129202 C30/S40 (04-)/V50/C70 (06-)
49
Engine Management System, 4-Cyl. 1.8L & 2.0L 1:2
51
Engine Management System, 5-Cyl. 1:2
53
Engine Management System, 5-Cyl. Turbo 1:2
55
Engine Management System, Diesel, 4-Cyl. 1.6L 1:2
57
Engine Management System, Diesel, 4-Cyl. 2.0L 1:2
59
Engine Management System, Diesel, 4-Cyl. 2.0L MPS6 1:2
61
Engine Management System, Diesel, 5-Cyl. 2.4L 1:3
63
Emission Control, 4-Cyl. 1.6L
66
Emission Control, 4-Cyl. 1.8L & 2.0L
67
Emission Control, 5-Cyl
68
Emission Control, 5-Cyl. Turbo
69
Group 26 Cooling System Cooling Fan
70
Group 27 Engine Controls Cruise Control, 4-Cyl
71
Cruise Control, 5-Cyl
72
Group 32 Alternator and Voltage Regulator Power Supply, 4-Cyl
73
Power Supply, 5-Cyl
74
Group 33 Starting System Starting System, 4-Cyl
75
Starting System, 5-Cyl
76
Group 35 Lighting High and Low Beam
77
Active Headlight (Bi-Xenon®) S40/V50
78
High and Low Beam (Bi-Xenon®) C30/C70
79
Running Lights/ Parking Lights, Tail Lights S40/V50
80
Running Light/Parking Light, Tail Lights (Bi-Xenon®) S40/V50
81
S40/V50
81
Running Lights/ Parking Lights, Tail Lights C30/C70
82
Running/Parking Lights, Tail Lights (Bi-Xenon®) C30/C70
83
C30/C70
83
Brake Light S40/V50
84
Brake Lights C30/C70
85
Reversing Lights S40/V50
86
Reversing Lights C30/C70
87
Fog Lights S40/V50
88
Fog Lights C30/C70
89
Fog Lights LHD Japan S40/V50
90
Fog Lights LHD Japan C30/C70
91
Follow-Me-Home Lighting
92
Interior Lighting C30/S40/V50 1:2
93
Interior Lighting C70 1:2
95
Instrument and Control Illumination
97
Auxiliary Lights
98
Group 36 Additional Electrical Equipment
99
Direction Indicators and Hazard Warning Flashers S40/V50
99
S40/V50
99
Direction Indicator and Hazard Warning Flashers (Bi-Xenon®) S40/V50
100
Direction Indicators and Hazard Warning Flashers C30/C70
101
C30/C70
101
Direction Indicator and Hazard Warning Flashers
102
(Bi-Xenon®) C30/C70
102
Windshield Wiper/Washer
103
Headlight Washer
104
Rear Window Wiper/Washer C30/V50
105
Rain Sensor
106
Keyless Vehicle C30/S40/V50 1:2
107
Keyless Vehicle C70 1:2
109
Parking Assistance
111
Electronic Immobilizer/ Steering Column Lock Module (SCL)
112
Horn
113
Anti-Theft Alarm C30
114
Anti-Theft Alarm S40/V50
115
Anti-Theft Alarm C70
116
Alcolock
117
Accessory Electronic Module (AEM)
118
Group 37 Wiring and Fuses
119
Outlet C30/S40/V50
119
Outlet C70
120
Diagnostics System
121
Tow Hitch Cable Harness, 4-Pin S40/V50
122
Tow Hitch Cable Harness, 4-Pin C30/C70
123
Tow Hitch Cable Harness, 7-Pin S40/V50
124
Tow Hitch Cable Harness, 7-Pin C30/C70
125
Tow Hitch Cable Harness, 13-Pin S40/V50/C70
126
Tow Hitch Cable Harness, 13-Pin C30
127
USB Control Module (AUU)
128
Group 38 Instruments Driver Information Module
129
Seat Belt Reminder C30/S40/V50
130
Seat Belt Reminder C70
131
Group 39 Other
132
Audio C30/S40/V50
132
Audio C70
133
Audio High Performance/Premium Sound C30/S40/V50 1:2
134
Audio High Performance/Premium Sound C70 1:2
136
Cellular Phone 1:2
138
Tp 39129202 C30/S40 (04-)/V50/C70 (06-)
138
Multimedia & Traffic Information
140
Satellite Radio
141
Subwoofer
142
Navigation System, Portable
143
Bluetooth
144
Bluetooth Handsfree, Internal Amplifier
145
Bluetooth Handsfree, External Amplifier
146
Bluetooth Handsfree & AUU, Internal Amplifier
147
Bluetooth Handsfree & AUU, External Amplifier
148
Bluetooth Handsfree with AEM, Internal Amplifier, LHD
149
Bluetooth Handsfree with AEM, Internal Amplifier, RHD
150
Bluetooth Handsfree with AEM, External Amplifier, LHD
151
Bluetooth Handsfree with AEM, External Amplifier, RHD
152
Group 43 Transmission Automatic Transmission AW55-51
153
Transmission M66
154
Automatic Transmission MPS6
155
Differential Electronic Module (DEM), S40/V50
156
Group 59 Brake System Brake Control System & STC
157
Brake Control System & DSTC
158
Group 64 Steering Electronic Power Steering
159
Group 83 Doors and Openings
160
Central Locking, Front Doors C30/S40/V50
160
Central Locking, Rear Doors S40/V50
161
Central Locking C70
162
Central Locking, Trunk Lid/Tailgatec30
163
Central Locking, Trunk Lid/Tailgates40/V50
164
Central Locking, Trunk Lid/Tailgatec70
165
Central Locking, Storage Compartment C70
166
Child Safety Lock S40/V50
167
Central Locking, Fuel Filler Flap
168
Signal Receiver, Central Locking C30/S40/V50
169
Signal Receiver, Central Locking C70
170
Power Windows, Front Doors C30/S40/V50
171
Power Windows C70
172
Power Windows, Rear Doors S40/V50
173
Power Sunroof C30/S40/V50
174
Power Roof C70
175
Group 84 Exterior Decorative Elements, Etc
176
Power Door Mirrors C30/S40/V50
176
Power Door Mirrors C70
177
Heated Door Mirrors
178
Heated Rear Window
179
Blind Spot Information System
180
Group 85 Interior Equipment
181
Power Driver's Seat with Memory Function
181
Lhd S40/V50
181
Power Driver's Seat with Memory Function
182
Rhd S40/V50
182
Power Driver's Seat with Memory Function LHD C30/C70
183
Power Driver's Seat with Memory Function RHD C30/C70
184
Power Passenger Seat with Memory Function LHD C30/C70
185
Power Passenger Seat with Memory Function RHD C30/C70
186
Power Driver's Seat LHD S40/V50
187
Power Driver's Seat RHD S40/V50
188
Power Passenger Seat LHD S40/V50
189
Power Passenger Seat RHD S40/V50
190
Heated Seats
191
Group 87 Climate Control System Climate Control System, 4-Cyl. Gasoline 1:2
192
Climate Control System, Diesel 1.6L & 2.0L 1:2
194
Climate Control System, 5-Cyl. 1:2
196
Climate Control System PTC Element
198
Parking Heater, Auxiliary Heater
199
Relay, Electric Engine Heater
200
Electric Engine Heater Flexifuel
201
Group 88 Internal Equipment Supplemental Restraint System (SRS) C30/S40/V50 1:2
202
Supplemental Restraint System (SRS) C70 1:2
204
Remote Garage Opening
206
Auto-Dimming Rearview Mirror
207
Connectors
208
Branching Points
250
Tp 39129202 C30/S40 (04-)/V50/C70 (06-)
250
Routing of Harnesses in the Car Engine Harness, Gasoline 4-Cyl. 1.6
262
Engine Harness, Gasoline 4-Cyl. 1.8
262
Engine Harness, Gasoline 5-Cyl
263
Engine Harness, Gasoline 5-Cyl. Turbo
263
Engine Harness, Diesel 1.6L
264
Engine Harness, Diesel 2.0L
264
Engine Harness, Diesel 2.4L
265
Engine Compartment Harness, 4-Cyl
266
Engine Compartment Harness, 5-Cyl
266
Dashboard Harness, LHD
267
Dashboard Harness, RHD
267
Floor Harness, C30 LHD
268
Floor Harness, C30 RHD
269
Floor Harness, S40 LHD
270
Floor Harness, S40 RHD
271
Floor Harness, V50 LHD
272
Floor Harness, V50 RHD
273
Floor Harness, C70 LHD
274
Floor Harness, C70 RHD
275
Roof Harness, C30
276
Roof Harness, S40
276
Roof Harness, V50
277
Roof Harness, C70
277
Tunnel Harness, C30/S40/V50
278
Tunnel Harness, C70
278
Driver's Door Harness, C30
279
Passenger Door Harness, C30
279
Driver's Door Harness, S40/V50
280
Passenger Door Harness, S40/V50
280
Driver's Door Harness, C70
281
Driver's Door Harness Supplement, C70
281
Passenger Door Harness, C70
282
Passenger Door Harness Supplement, C70
282
Rear Door Harness, Right S40/V50
283
Left, Rear Door Harness S40/V50
283
Rear Side Panel Harness, Left C70
284
Right, Rear Side Panel Harness C70
284
Trunk Lid/Tailgate Harness, C30
285
Trunk Lid/Tailgate Harness, S40
285
Trunk Lid/Tailgate Harness, V50
286
Trunk Lid/Tailgate Harness, C70
286
Component Illustrations
287
Index 1:2
343
Table of Contents
344
List of Components 1:7
345
Other manuals for Volvo V50
Owner's Manual
322 pages
User Manual
225 pages
Specifications
3 pages
Brochure
35 pages
Brochure & Specs
40 pages
Quick Guide
8 pages
Operating Manual
99 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Volvo V50 and is the answer not in the manual?
Ask a question
Volvo V50 Specifications
General
Brand
Volvo
Model
V50
Category
Automobile
Language
English
Related product manuals
Volvo 2009 V50
286 pages
Volvo 2010 V50
292 pages
Volvo V50 2004
208 pages
Volvo 2011 V50
8 pages
Volvo V50 2010
310 pages
Volvo V50 2012
348 pages
Volvo V50 2.4/140 (B5244S5)
2 pages
Volvo V70
430 pages
Volvo V60
422 pages
Volvo V70R
250 pages
Volvo 2002 V70
123 pages
Volvo 2001 V70
122 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
