SVS-200 Installation, Operation and Maintenance
IMPORTANT INFORMATION – SAVE THESE INSTRUCTIONS
20153-W-03-01 12 Webasto Charging Systems, Inc.
Installation / Line Voltage Changeover Instructions
Remove the screws and open the front door of the SVS-300.
1. Locate the AC Input Terminal Block. Refer to Figure 4- 3.
2. Bring utility wires from the Utility Distribution Panel through conduit, and route them to the AC
Input Terminal Block and the Chassis Grounding Connector.
NOTE: The grounding wire should have insulation that is green or green with yellow stripe.
3. Ensure good electrical connection by tightening all the screws properly.
4. Close the front door prior to switching on the utility power.

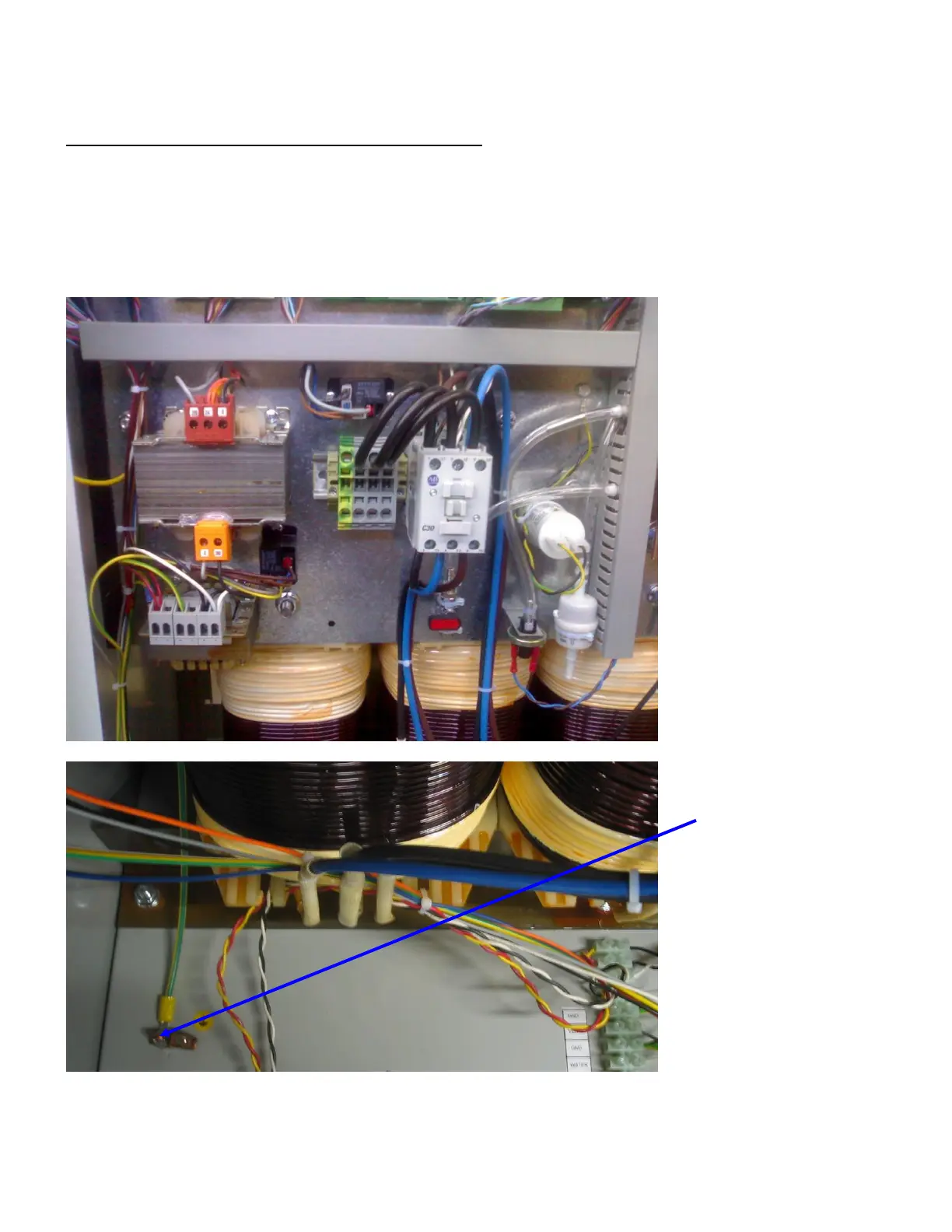

Figure 4- 3 AC Input Terminal Block
Figure 4- 4 Location of Chassis Ground Connector
