5.10.7.1 Setting the Reduced Rate Charge Configuration
From the “Reduced Charge Rate Setup” screen, press <enter> to display the Reduced Rate
Enable status. Press <enter> again to enable editing. Use the <up> and <down> buttons to
toggle between “ON” and “OFF” and press <enter> to accept edits. Use the <select> button to
cycle through the remaining screens. Edit the time and current limit parameters using the
<enter>, <up>, and <down> buttons. Once editing is complete, use the <clear> button repeatedly
to return to the top-level screen.

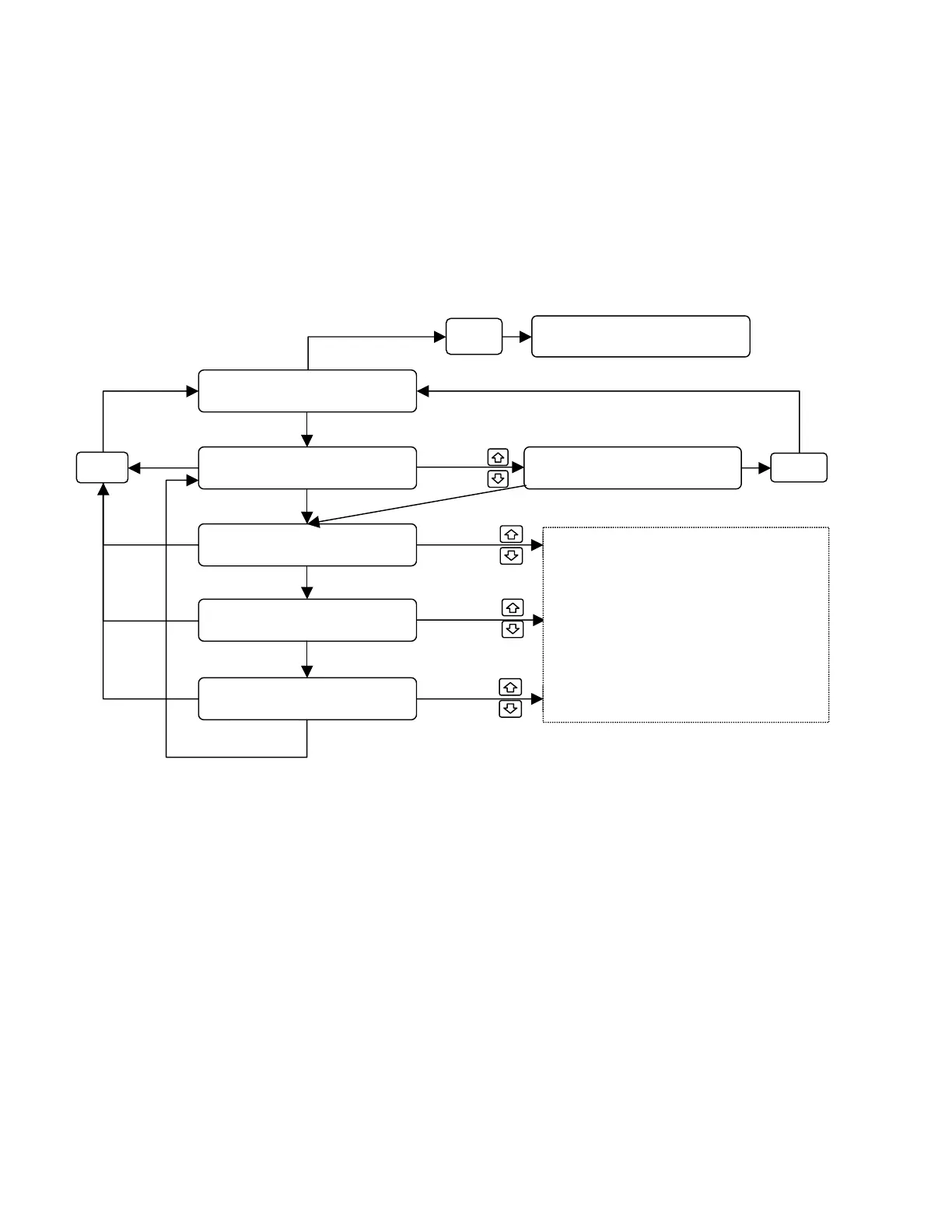

Figure 5- 18 Reduced Charge Rate Setup Screens
5.10.8 Temperature Readout Selection
Allows the user to set the battery temperature display format to either degrees Fahrenheit or
Celsius.
From the “Temperature Readout Selection” screen, press <enter> to display the current format.
Press <enter> again to enable editing. Use the <up> and <down> arrows to select the desired
format for the temperature display and press <enter> to save your configuration. Press <clear> to
exit.
Reduced Chr End time
05:00
Reduced Charge Rate
Setup
CLEAR
ENTER
Reduced Rate Enable:
OFF
Reduced Chr Start time
00:00
Reduced Charge Cur Lim
020 Amps/100Amphrs
ENTER
ENTER
ENTER
ENTER
Press ENTER and use the UP and
DOWN arrow buttons to set the
parameter to the appropriate value.
Press ENTER again to accept the
selection made.
Press CLEAR to retain the original
value
Reduced Rate Enable:
ON
CLEAR
CLEAR
Charger Configuration
SELECT
SELECT
SELECT
SELECT
SELECT
