2. To set public offset, do the following:

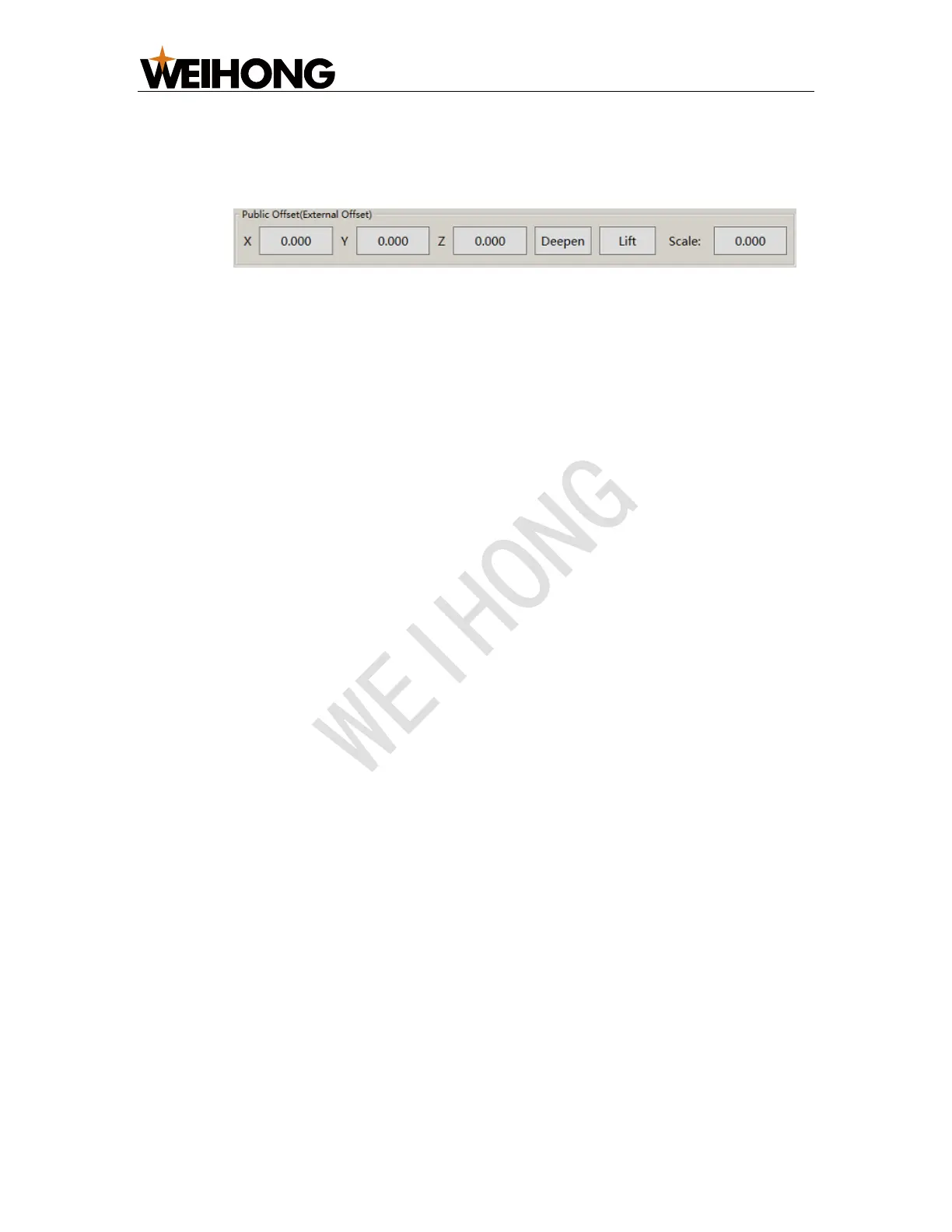

1. To set public offset for X-axis/Y-axis, click the input box of related axis
and set a value:
2. To set public offset for Z-axis, do one of the following:
• Click the input box of Z-axis and set a value.
• Click the input box of Scale, set a value and do one of the
following:
– Click Deepen. The workpiece origin of Z-axis moves down
the corresponding distance.
– Click Lift. The workpiece origin of Z-axis moves up the
corresponding distance.
3.1.4. HD List Window
This window includes the following interfaces:
• Local interface
It shows the list of local program files under the root directory D:\NcFiles.
• USB interface
It shows the list of program files from removable flash disks both under the
root directory and subdirectory folders.
• Wizard interface
You can generate program files from the following program wizards:
– Cir. Contour
– Cir. Pocket
– Rect.Contour
– Rect.Pocket
In conclusion, in this window, you can access various program files, stored in the
system and in removable flash disks and generated from wizard.
