4. CCD Operations
To execute CCD operations, do the following:
1. Switch to CCD Setting window.
2. Set camera
3. Debug CCD and the machine
4. Set CCD and the workpiece
5. Execute other operations
4.1. Set the Camera
This operation mainly contains setting the following two parameters:
• Exposure
• Gain
To set the camera, do the following:
1. Switch to Param interface.
2. Check Setting ON.

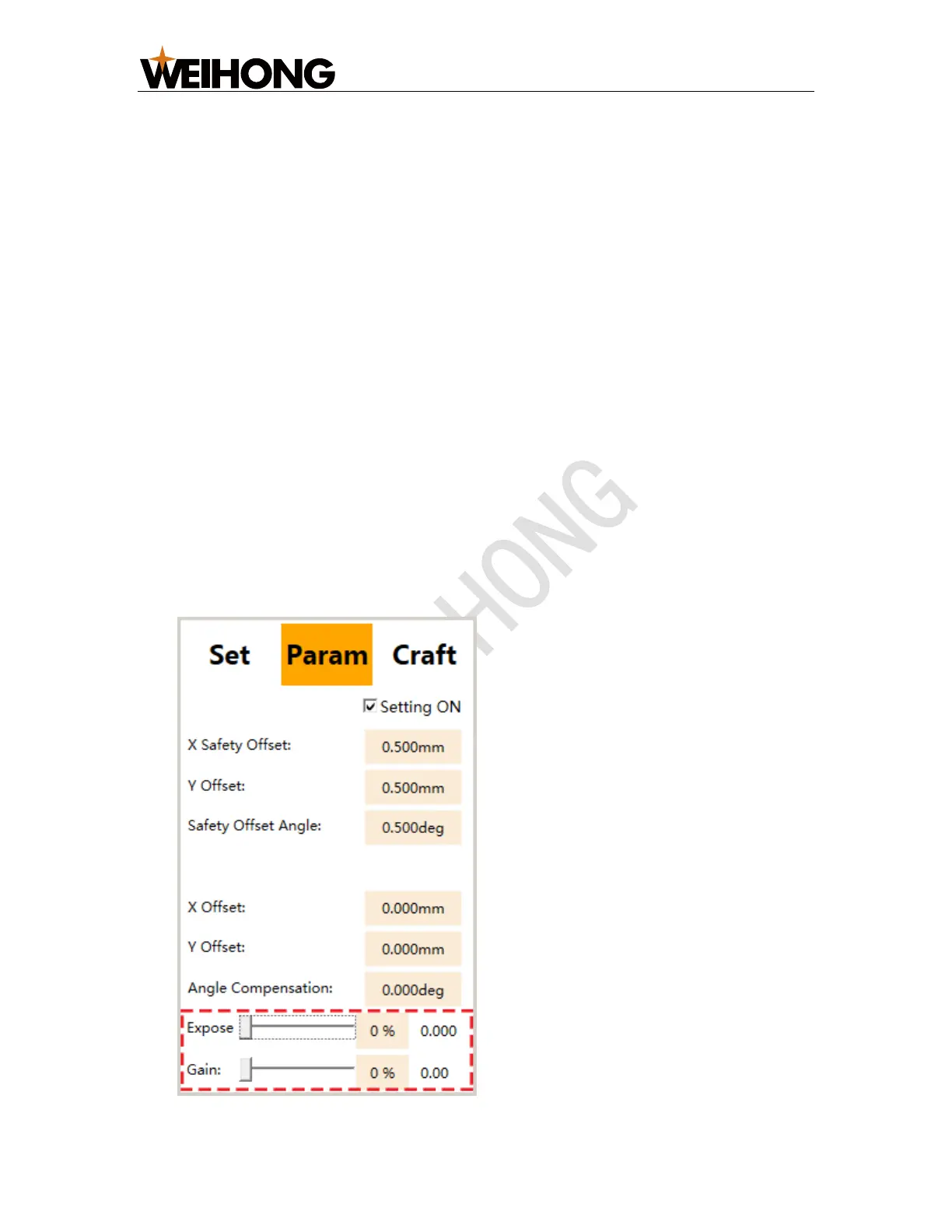

3. Drag the slider to adjust the percentages of Expose and Gain:
