2. Check Setting ON and enter the manufacturer password.
3. Check Set Work Zero by CCD Center to enable set the workpiece origin by
CCD center.
4.4.5. Set Safety offset
In actual machining, the hollowed-out area on the workpiece is quite small. If the
workpiece is tiled, direct machining may damage the workpiece. Thus, it is
necessary to set safety offset.
The range of the safety offset and its angle is decided by the dimension of the
hollowed-out area.
To set safety offset, do the following:

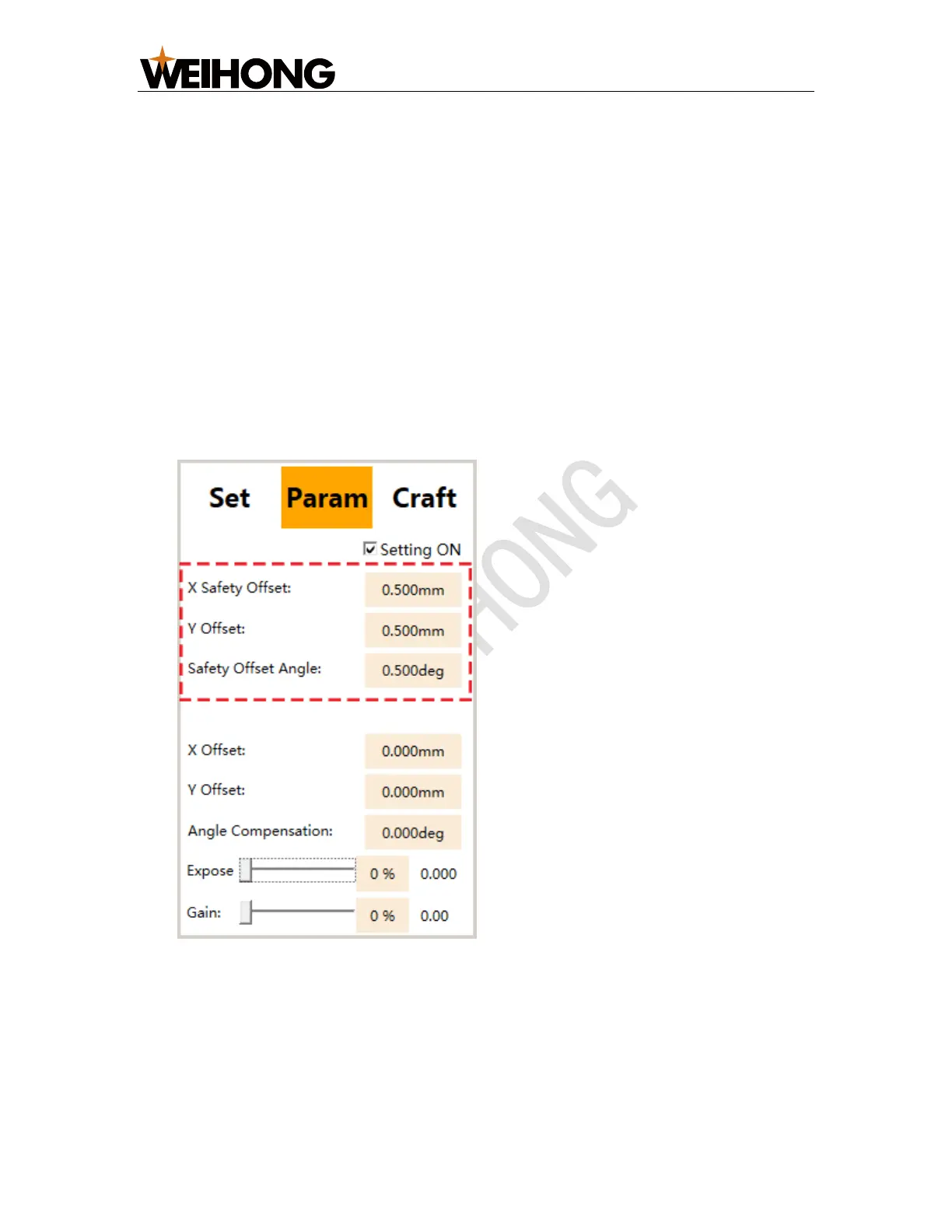

1. Switch to Param page and check Setting ON:
2. Modify the following parameters:
– X Safety Offset
– Y Safety Offset
– Safety Offset Angle
