5.6. What are the Differences between Simulation and Actual
Machining?
The main differences are as follows:
• Tool nose is used in actual machining; while view center of the camera is used
to simulate along tool path in simulation.
• Z-axis moves along tool path in actual machining; while Z-axis moves at the
focal height in simulation.
Before actual machining, it is recommended to execute simulation to check all
settings.
5.7. What Are the Requirements for the Selected Feature Points
in Measuring Magnification?
The feature point must be unique in the camera view.

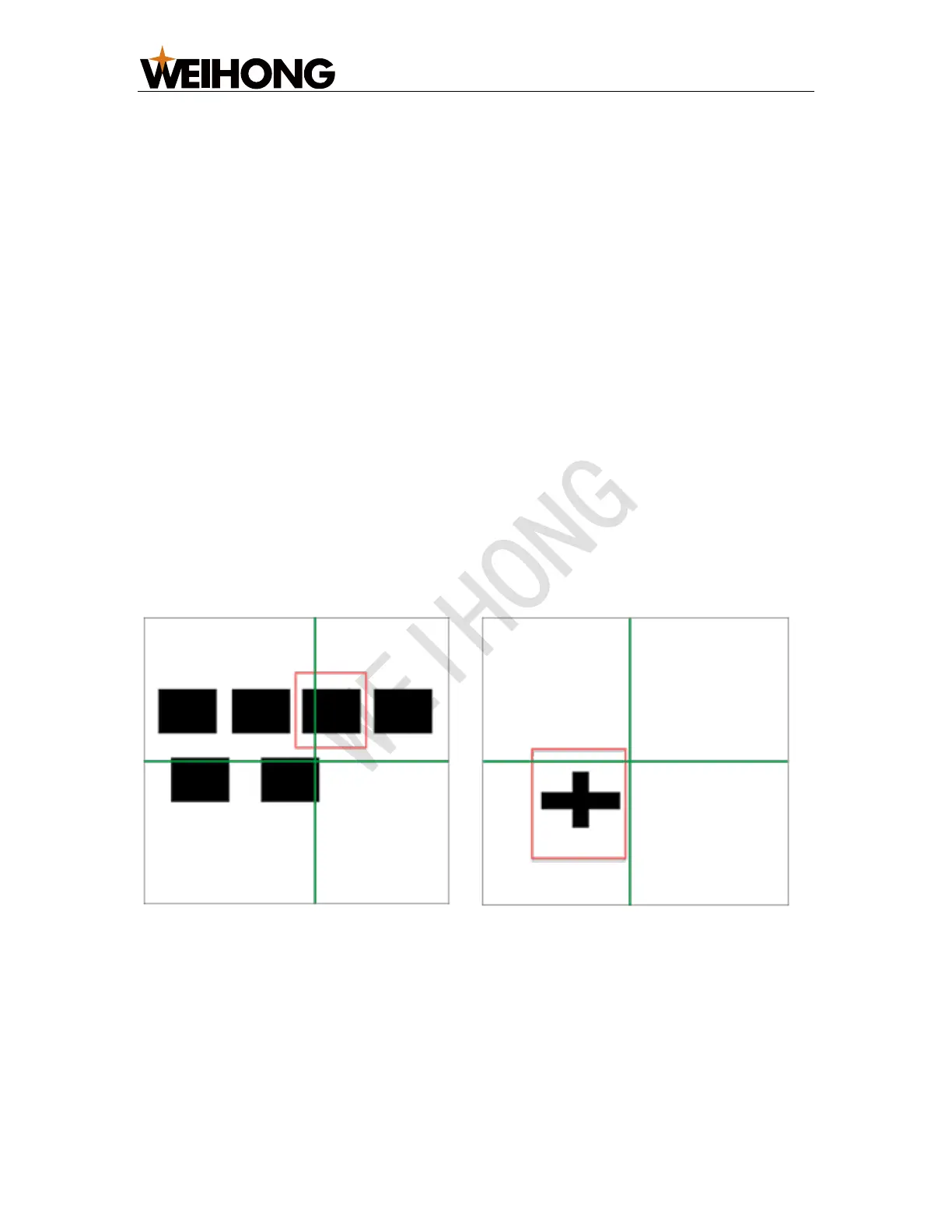

Example
In the figure below, the rectangle in the left is not unique in the view, so it cannot be
set as a feature point to measure magnification; the cross in the right is unique in
the view, so it can be set as a feature point to measure magnification.
