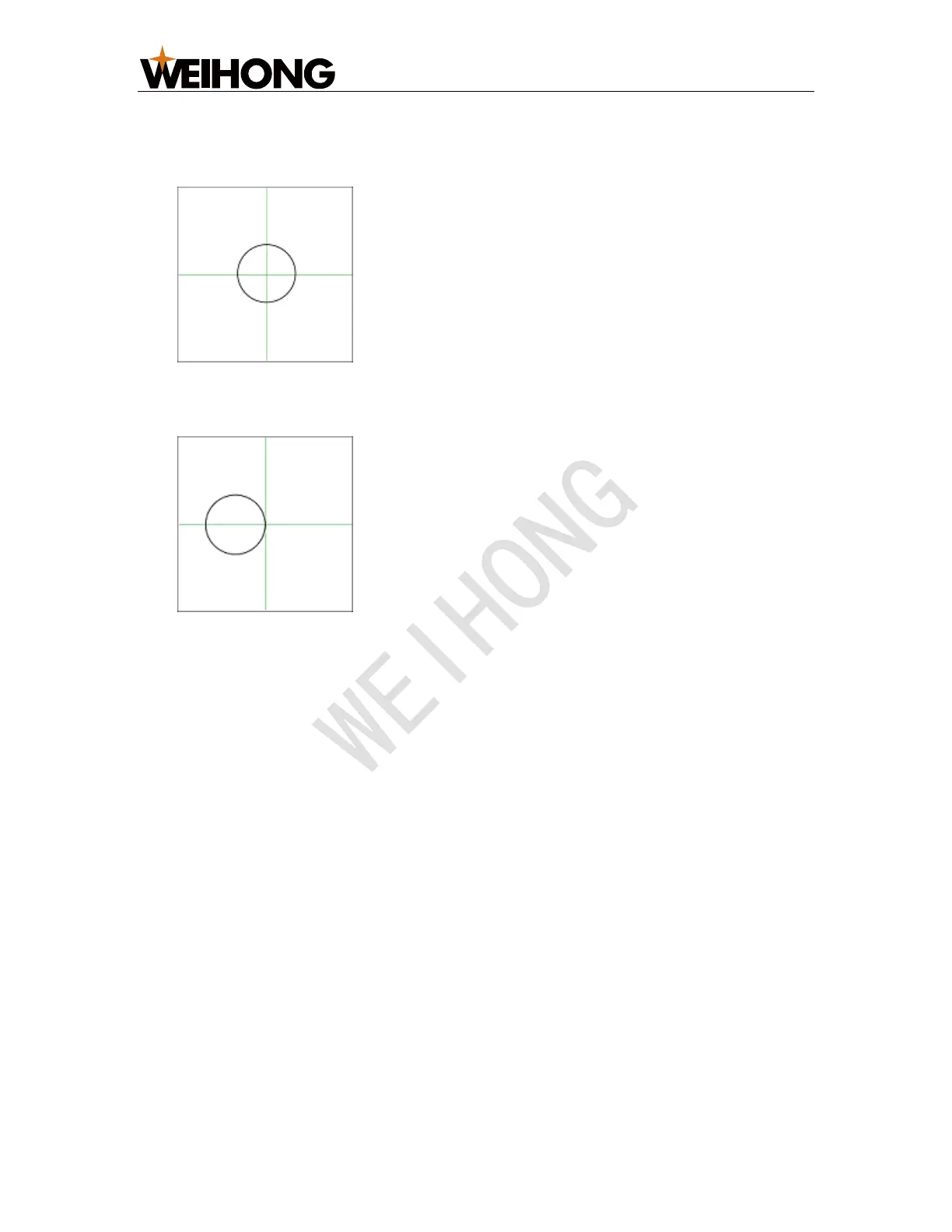

7. Move a tool radius in X-axis direction.
At this time, the coordinate in X-axis direction is the position of the circle center:
Repeat the step to check the setting of tool radius. If it is set correctly, the CCD
center should be on the other side of the tangent position:
8. Repeat steps 6 and 7 to find the center position in Y-axis direction.
9. Click Set Offset to set the offset.
4.3. Set CCD and the Workpiece
To set CCD and the workpiece, do the following:
1. Set image matching mode
2. Shoot
3. Edit a template
