WEIHONG NCStudio V12 User Manual

上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
36 / 47

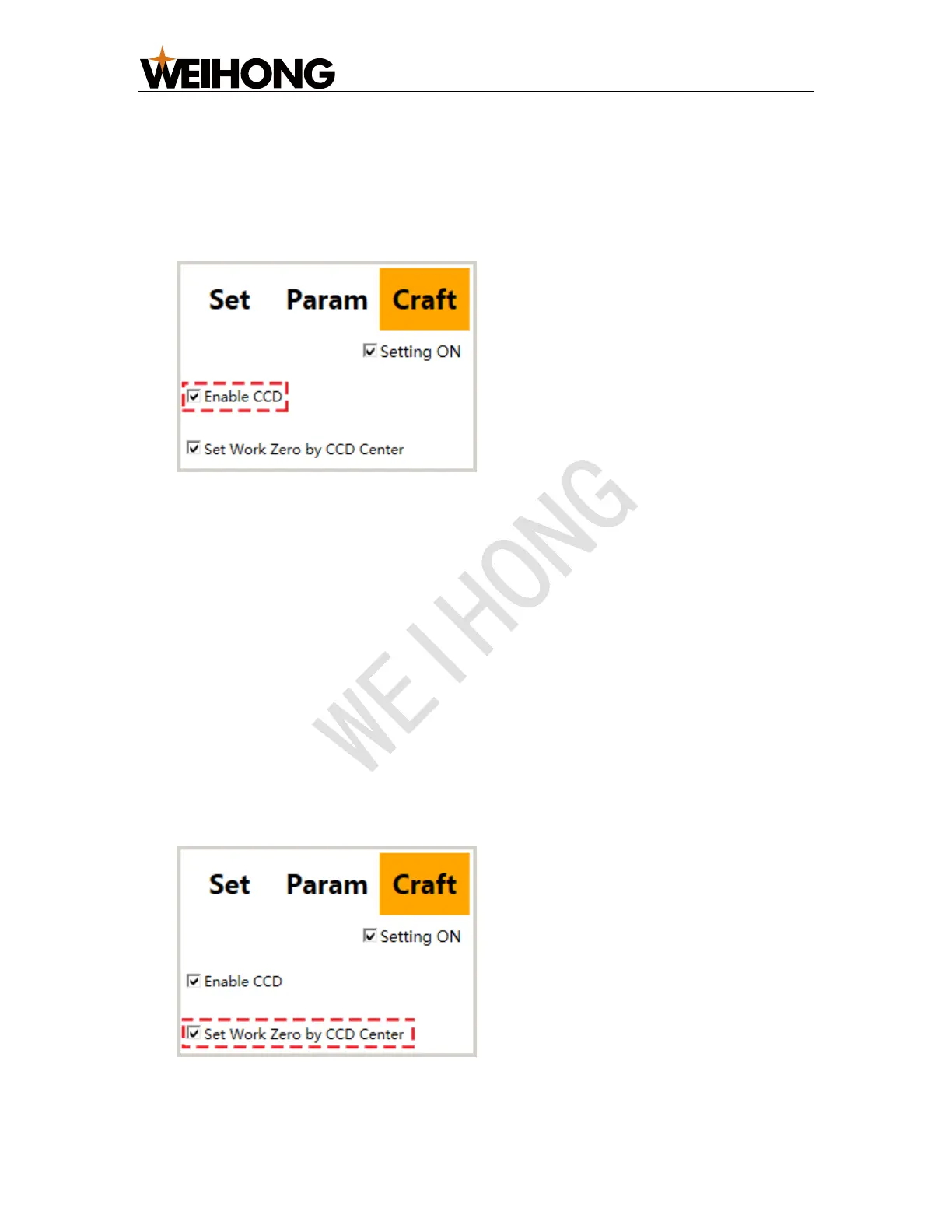

4.4.3. Enable CCD
You can choose whether to enable CCD according to machining technics.
To enable CCD, do the following:
1. Switch to Craft page:
2. Check Setting ON and enter the manufacturer password.
3. Check Enable CCD to enable CCD.
4.4.4. Set the Workpiece Origin by CCD Center
There are two methods to set the workpiece origin:
• By tool nose
• By CCD center
This ways is only suitable to shooting with two points. For other shooting
methods, the workpiece origin is reset based on shooting results.
To set the workpiece origin by CCD center, do the following:
1. Switch to Craft page:
