To set Z-axis depth compensation,do the following:
1. Switch to Craft page and check Setting ON.

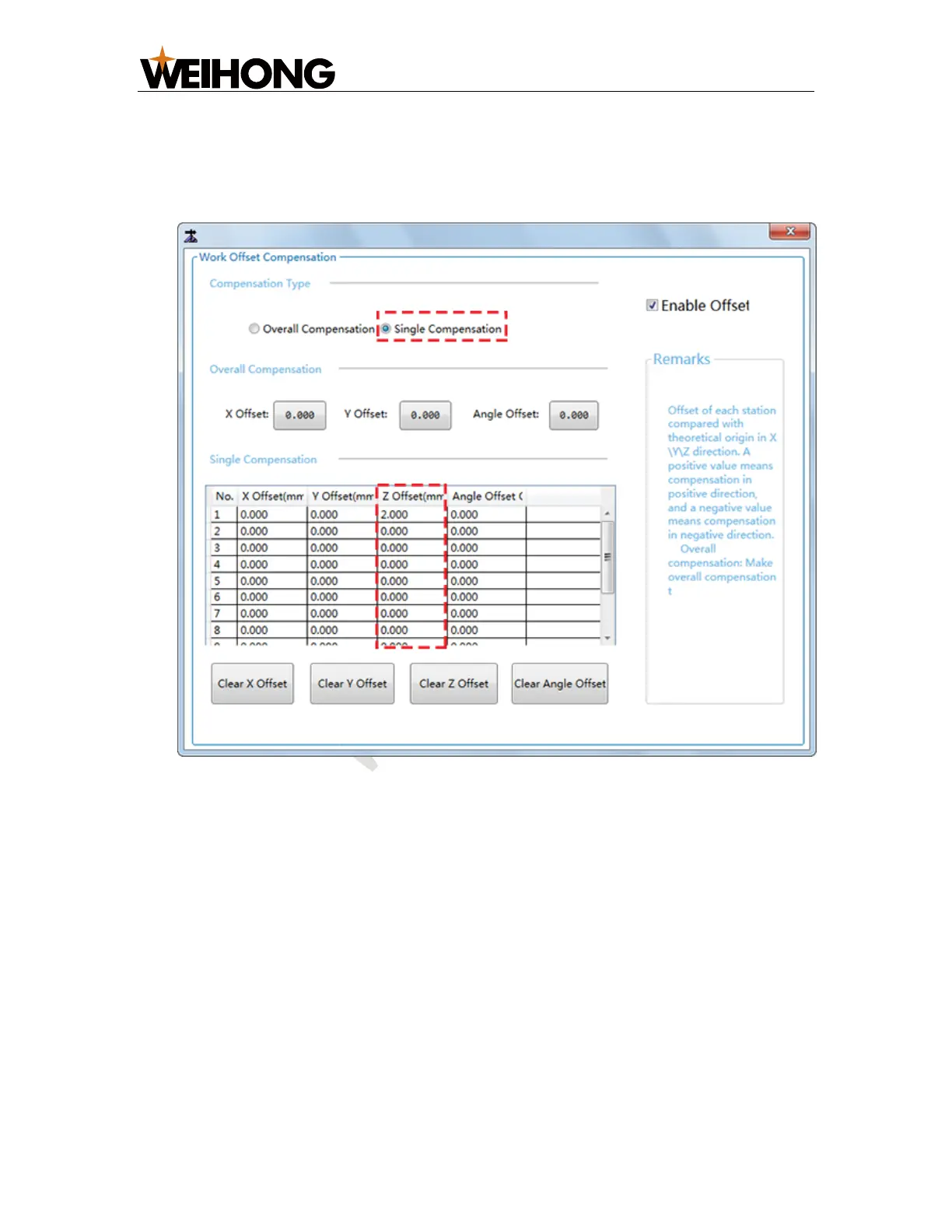

2. Click Set Part Offset Comp. Work Offset Compensation diaglog box pops up:
3. Check Enable Offset to enable offset.
4. Set Compensation Type as Single Compensation:
5. Set Z-axis offset of the corresponding station.
The station number corresponds to the shooting order.
4.4.9. Execute Simulation
After finishing all settings, you can execute simulation.
To execute simulation, click Simulate in CCD Setting window.
For differences between simulation and actual machining, please refer to What are
the Differences between Simulation and Actual Machining?.
