5.1.2 Extension Terminal Board

The port definitions of EX33A and EX31A extension terminal boards are the same in bus

or non-bus control systems.

EX33A extension terminal board

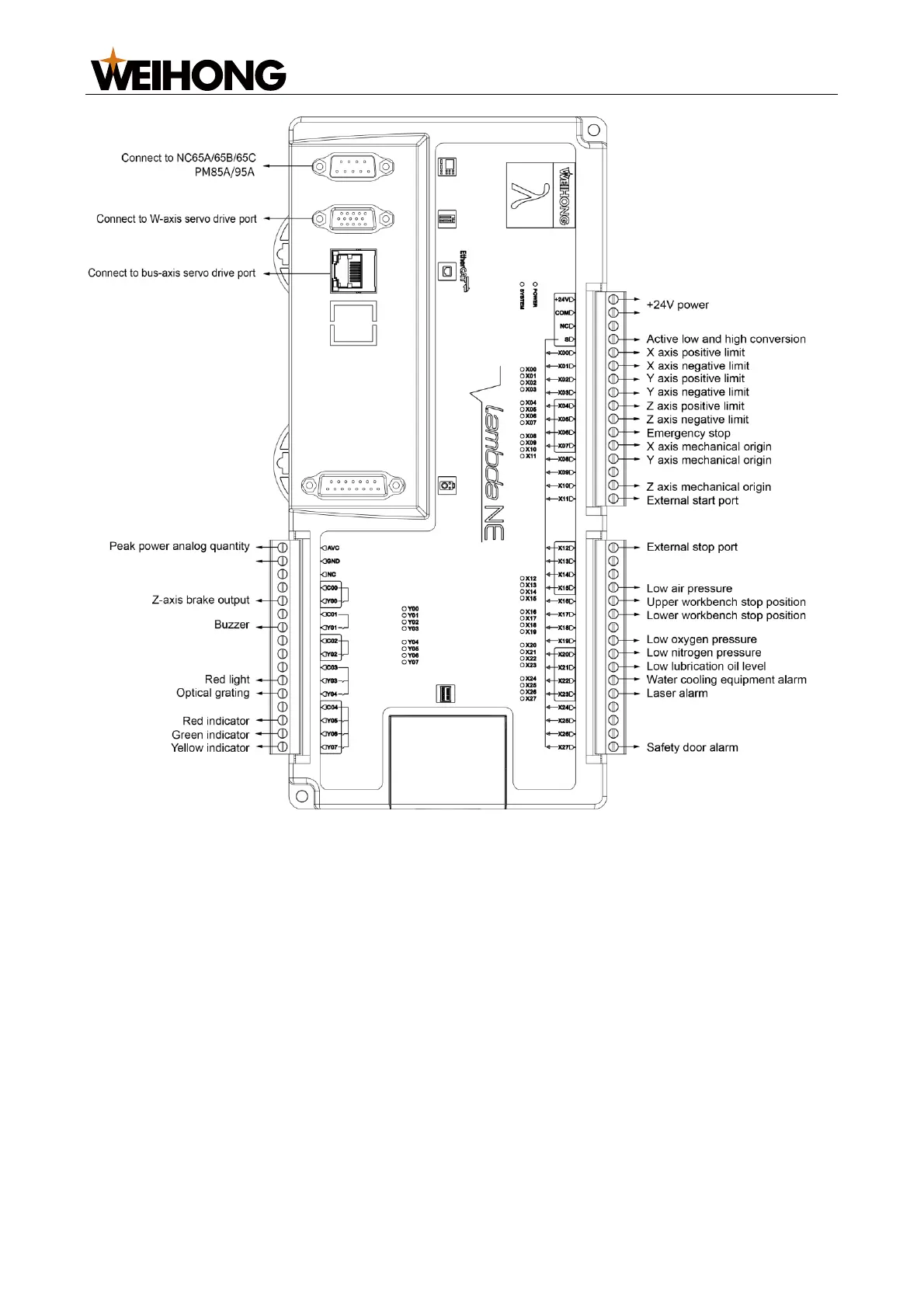

The port definitions are shown below:
