WEIHONG Ncstudio V15 User Manual

上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
69 / 116

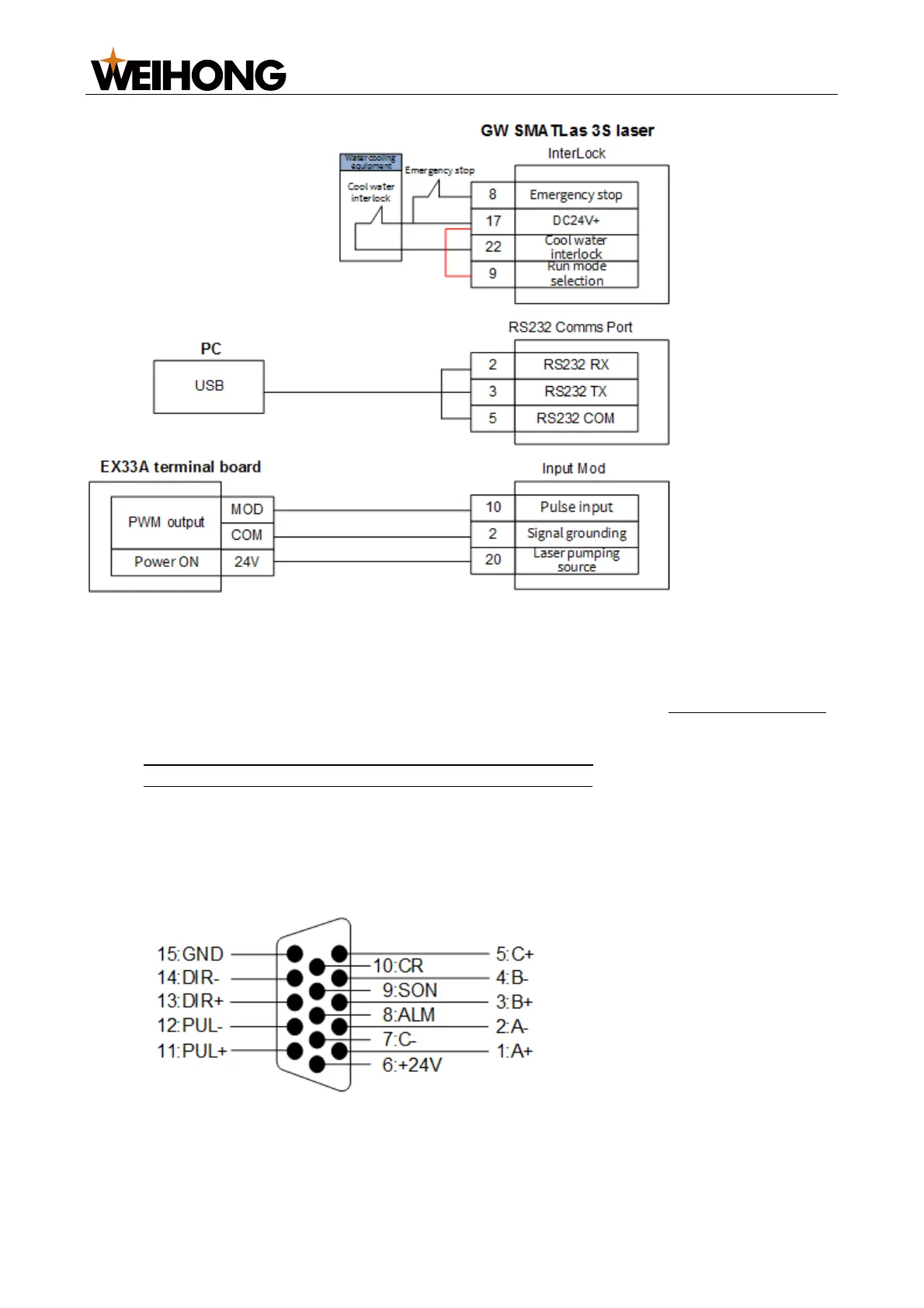

5.3 Wiring Diagram of the Drive
This section introduces how to connect WEIHONG DB15 drive port to different brands of
servo motors.
Drive wiring methods may vary based on the control mode. Check the drive port definition
before referring to the following wiring diagrams:
 Wiring Diagram of the Drive (in Position Control Mode)
 Wiring Diagram of the Drive (in Velocity Control Mode) (Exclusive for laser cutting
industry)
5.3.1 Drive Port Definition
The WEIHONG servo drive plug has three-row DB15 holes.
The definitions are shown as follows:
 Position control mode
 Velocity control mode
