2 Install the System
2.1 Overview
This section gives an overview of system installation.
2.2 Install Follow-up Amplifier
During installation of the follow-up amplifier, the external metal part of the amplifier contact
side needs to be installed correctly on the machine to shield signal interference effectively.

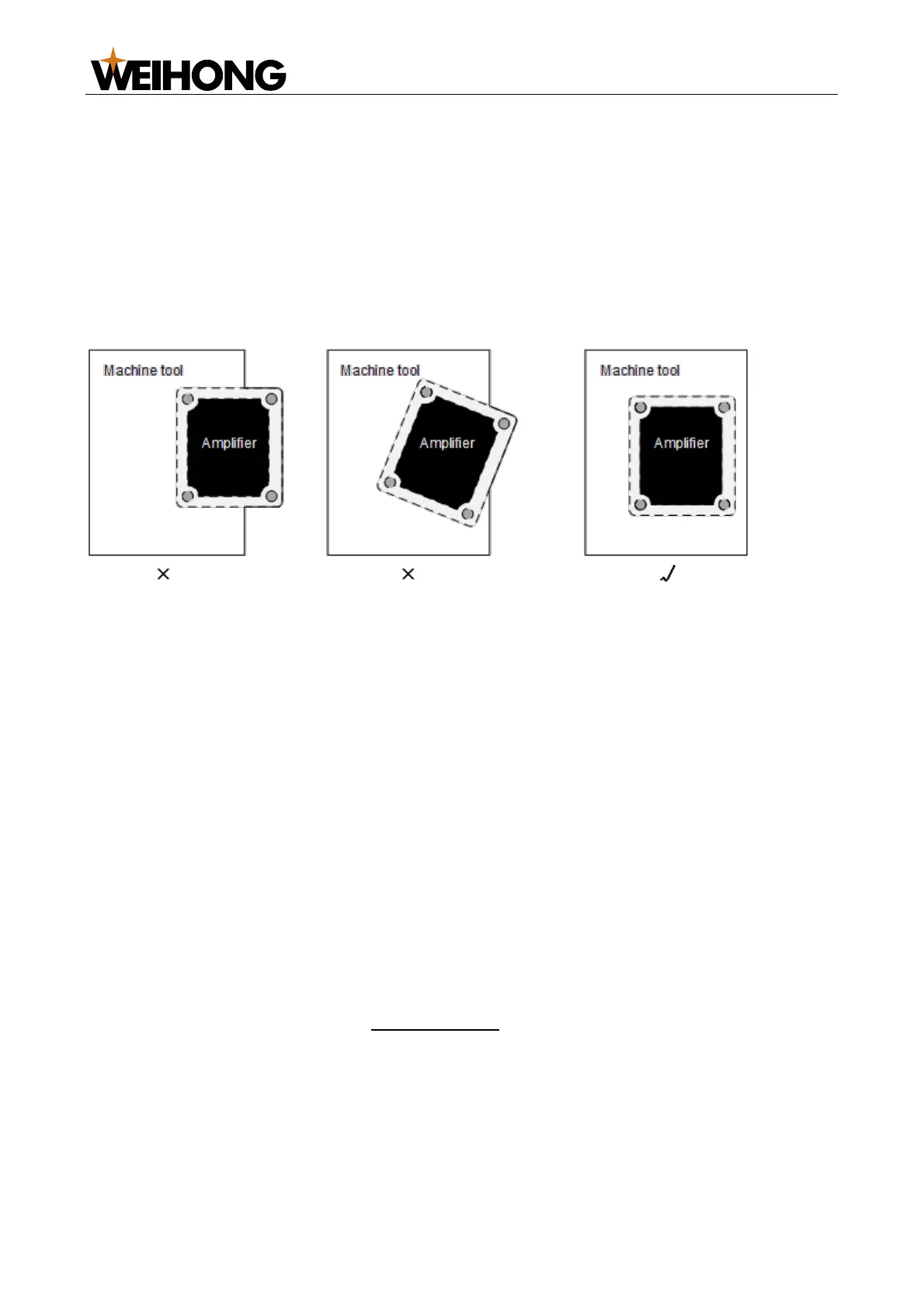

Install the follow-up amplifier as shown below:
2.3 Install Motion Control Card
PM95A motion control card is used together with the NcStudio motion control software for
a fast and accurate control of laser cutting movement.
Before installing the motion control card, ensure that:
CPU: ＞ 1G
RAM: ＞ 1G
Hard drive: ＞ 20G
Video card
Display: ≥ 14VGA
Motherboard extension slot: PCI-E slot ≥ 1
The PM95A motion control card needs to be installed on the computer.
Follow the steps below to install the PM95A control card:
1. Turn off the computer power supply and open the mainframe cover.
2. Gently press the two sides of the control card to secure it in the PCI-E slot.
3. Fix the control card screws and close the mainframe cover.
4. Restart the computer.
If the control card is installed, and Install the Drive is successful, but the NcStudio
software cannot run normally, turn off the computer and check to see if the gold fingers are
clean:
Yes: Clean them with an eraser.
No: Replace the control card.
2.4 Install the Software
This section introduces how to install the software of the NcStudio V15 laser cutting
control system.
