Welch Allyn Spot Vital Signs Service Manual

16 Overview Welch Allyn Spot Vital Signs
Connections
Use the following instructions to connect the blood pressure hose, thermometer probe,
and optional attachments to the Spot Vital Signs.

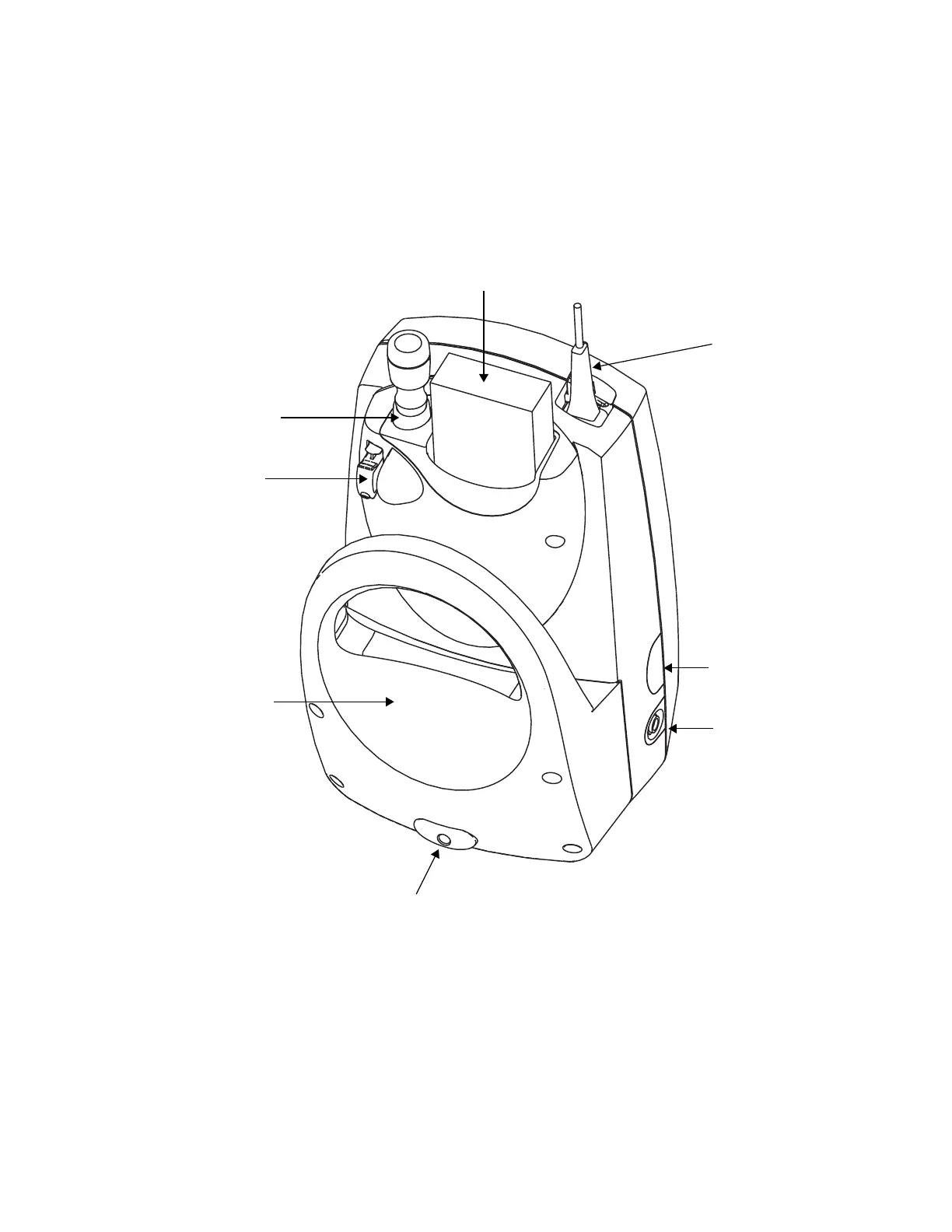

Figure 3. Spot Side and Rear Panel Connections
SpO
2
Cable Connection Port
(for units with SpO
2
only)
Probe Cover Storage Compartment: storage
space for one box of probe covers.
Temperature Probe Holder:
storage space for the
temperature probe when not in
use (for devices with SureTemp
only).
Suretemp Thermometer
Connection Port (for
devices with SureTemp only).
IR Data Interface:
Port for
communicating with
an external device.
DC Power
Connection Port
Threaded Insert: to mount the
Spot Vital Signs to a mobile stand.
Battery Door

Welch Allyn Spot Vital Signs Specifications

General

Pulse Rate Measurement	Yes
SpO2 Measurement	Yes
Display	LCD
Power Source	Rechargeable battery or AC power
Temperature Measurement	Yes
Connectivity	Optional with wireless connectivity
Pulse Rate Range	30-220 bpm
NIBP Diastolic Range	20-195 mmHg
SpO2 Range	70-100%
Temperature Range	80 °F to 110 °F (26.7 °C to 43.3 °C)
Battery Life	Approximately 8 hours of continuous operation
Weight Capacity	Not applicable
Height Measurement Range	Not applicable
