Xerox Phaser 3150 Service Manual

Parts List
8-12

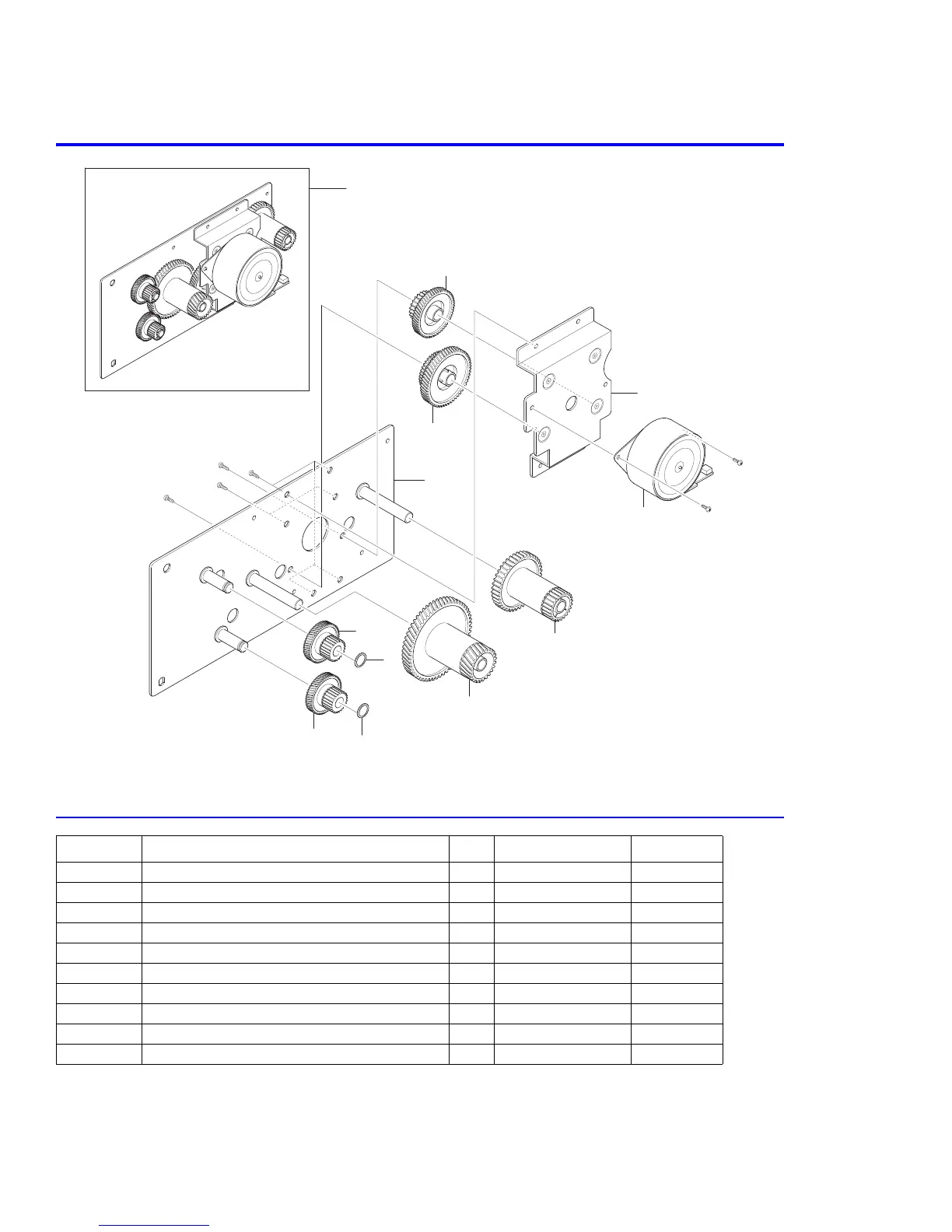

8.5 Main Drive Unit Assembly
Main Drive Unit Assembly Parts List 8.5
No. Part Name and (part description) Qty Part number Remark
0 ELA UNIT- DRIVE 1 007N01270
1 BRACKET-GEAR MAIN X
2 GEAR-RDCN 53/26 1
3 GEAR-RDCN 113/33 1
4 GEAR-RDCN 57/18 2
5 WASHER-PLAIN 2
6 BRACKET-MOTOR MAIN 1
7 GEAR-RDCN 1
8 GEAR-RDCN 1
9 MOTOR STEP-HUMMINGBIRD 1
0
1
2
3
4
4
5
6
8
7
9
5
