Xerox Phaser 3150 Service Manual

Disassembly
5-12
5.10.1 SMPS
1. Remove the front cover, see "5.2 Front Cover" on page 5-3.
2. Remove the rear cover, see "5.4 Rear Cover" on page 5-5.
3. Remove the top cover, see "5.5 Top Cover" on page 5-6.
4. Remove the left and right covers, see "5.7 Side Cover (Left and Right)" on page 5-8.
5. Remove the engine shield assembly, see "5.9 Engine Shield Assembly and Exit Board" on page 5-10.
6. Remove the 3 screws (one is to ground) securing the inlet bracket and remove the bracket.
7. Unplug 1 connector from the main board.
8. Remove the 6 screws securing the SMPS to the shield.

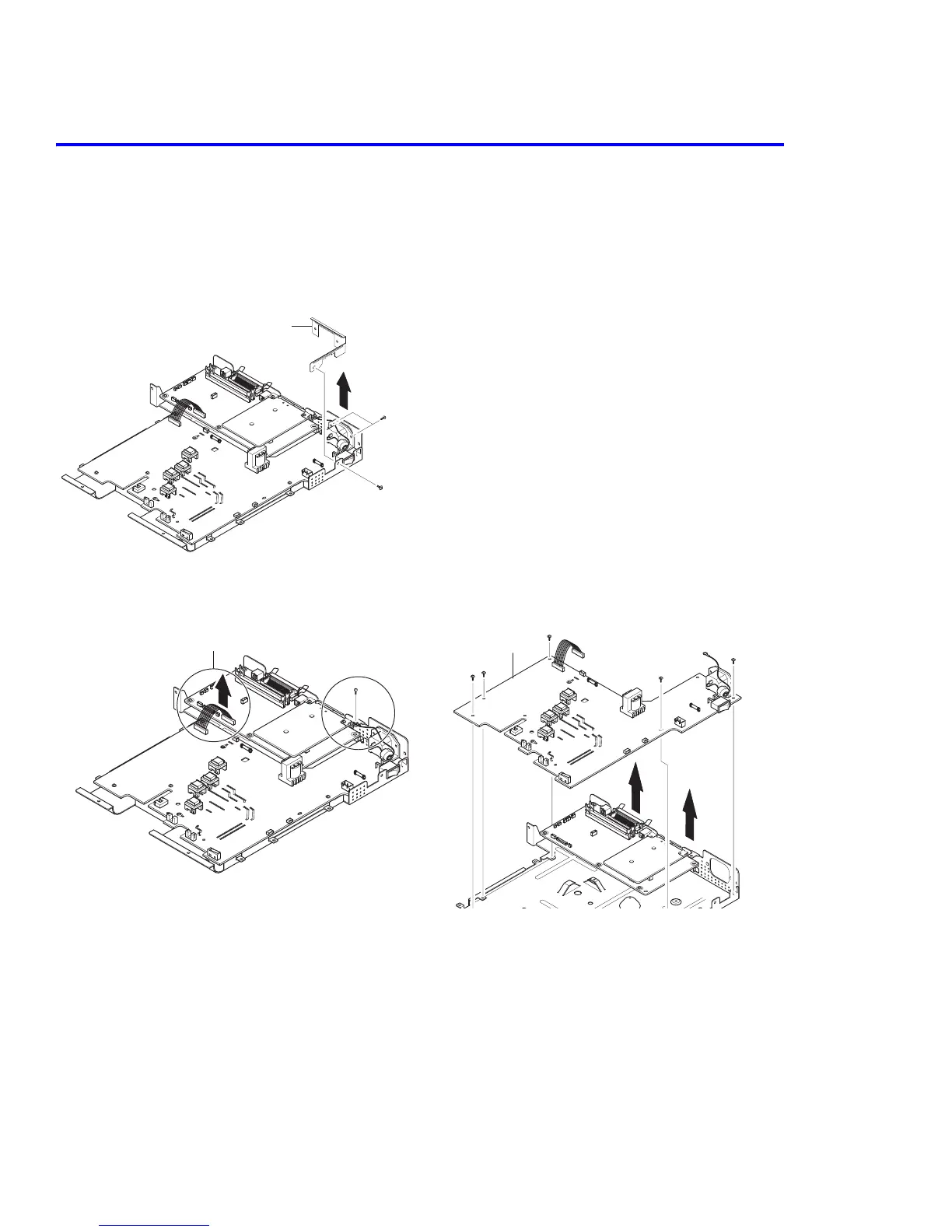

Inlet Bracket
Connector
SMPS
