Printing
WorkCentre 5300 Series Multifunction Printer
User Guide
62
Loading Envelopes in Tray 5 (Bypass Tray)
Tray 5 (Bypass Tray) accepts C5, DL, Monarch and Commercial #10 envelopes.
Tray 5 (Bypass Tray) accepts envelope paper weights from 75 g/m² to 90 g/m².
To load envelopes in Tray 5 (Bypass Tray):
1. Insert envelopes in Tray 5 (Bypass Tray) long edge feed (LEF) with flaps facing up and leading into
the printer.
2. Slide the guides so they just touch the edges of the stack.
Note: To help avoid jams, do not load envelopes above the maximum fill line.
3. On the printer touch screen, choose the envelope size, then touch Confirm.
Configuring the Envelope Tray
The optional envelope tray provides higher volume envelope capacity than the bypass tray. The
envelope tray replaces Tray 1 in the printer, and must be configured before use. When the envelope
tray is installed, the standard Tray 1 cannot be used.
This feature must be configured by the System Administrator. For details, see the System Administrator
Guide at www.xerox.com/office/WC53XXdocs.
Loading Envelopes in the Envelope Tray
The envelope tray accepts Monarch, Commercial #10, ISO C-5, DL envelopes, and custom-size
envelopes from 148 x 241 mm (5.8 x 9.5 in.) to 98 x 162 mm (3.9 x 6.4 in.). Envelope size must be set
using the touch screen.
The optional envelope tray accepts envelope paper weights from 75 g/m² through 90 g/m².
To load envelopes in the envelope tray:

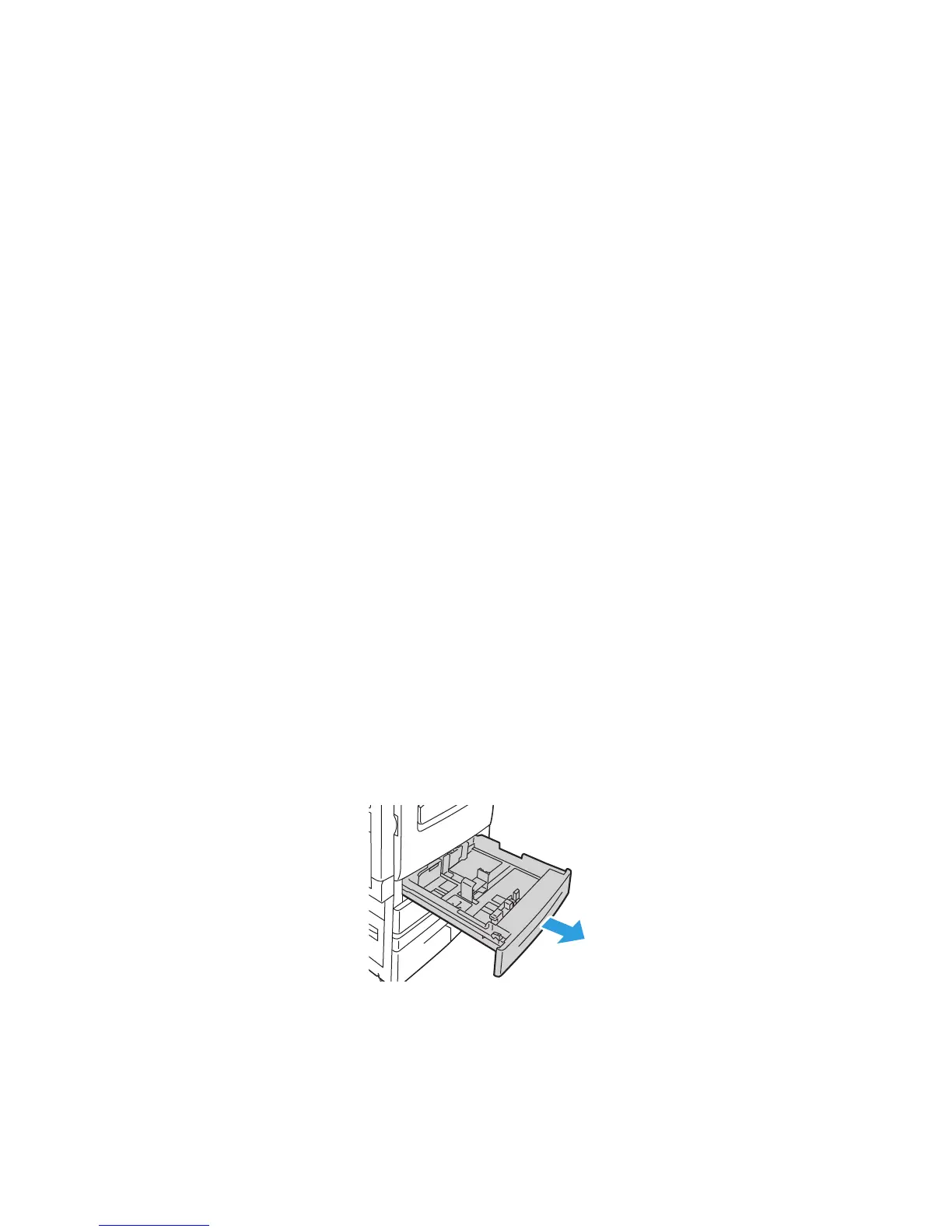

1. Pull the envelope tray out toward you.
