Xerox WorkCentre 7970 User Manual

Maintenance
Cleaning the Second-Side Scanning Lens Assembly
The second-side scanning lens assembly allows you to make 2-sided scans and copies with a single pass of
the original. The assembly is on the left side of the document cover and includes a mirrored glass strip, a
metal strip, a white-plastic strip, and rollers.
Note: Xerox recommends that you clean all parts of the second-side scanning lens assembly
regularly.
To clean the second-side scanning lens assembly:

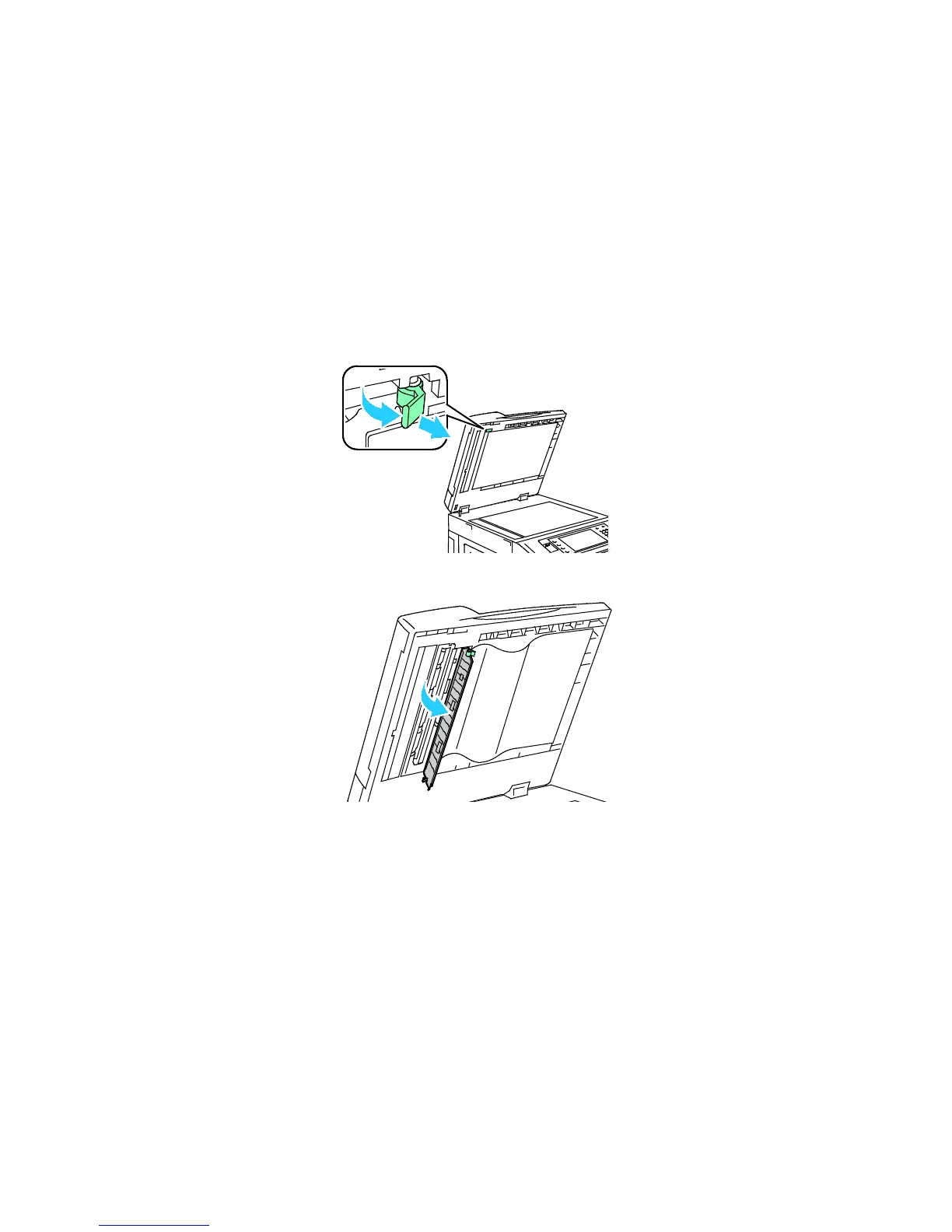

1. To access the second-side scanning lens assembly, lower the lever under the left side of the
document cover.
2. To separate the left end of the document cover from the lens assembly, continue to lower the lever.
Xerox
®
WorkCentre
®
7970 Multifunction Printer 181
User Guide
