Xinje DS2-22P3-AS User Manual

24

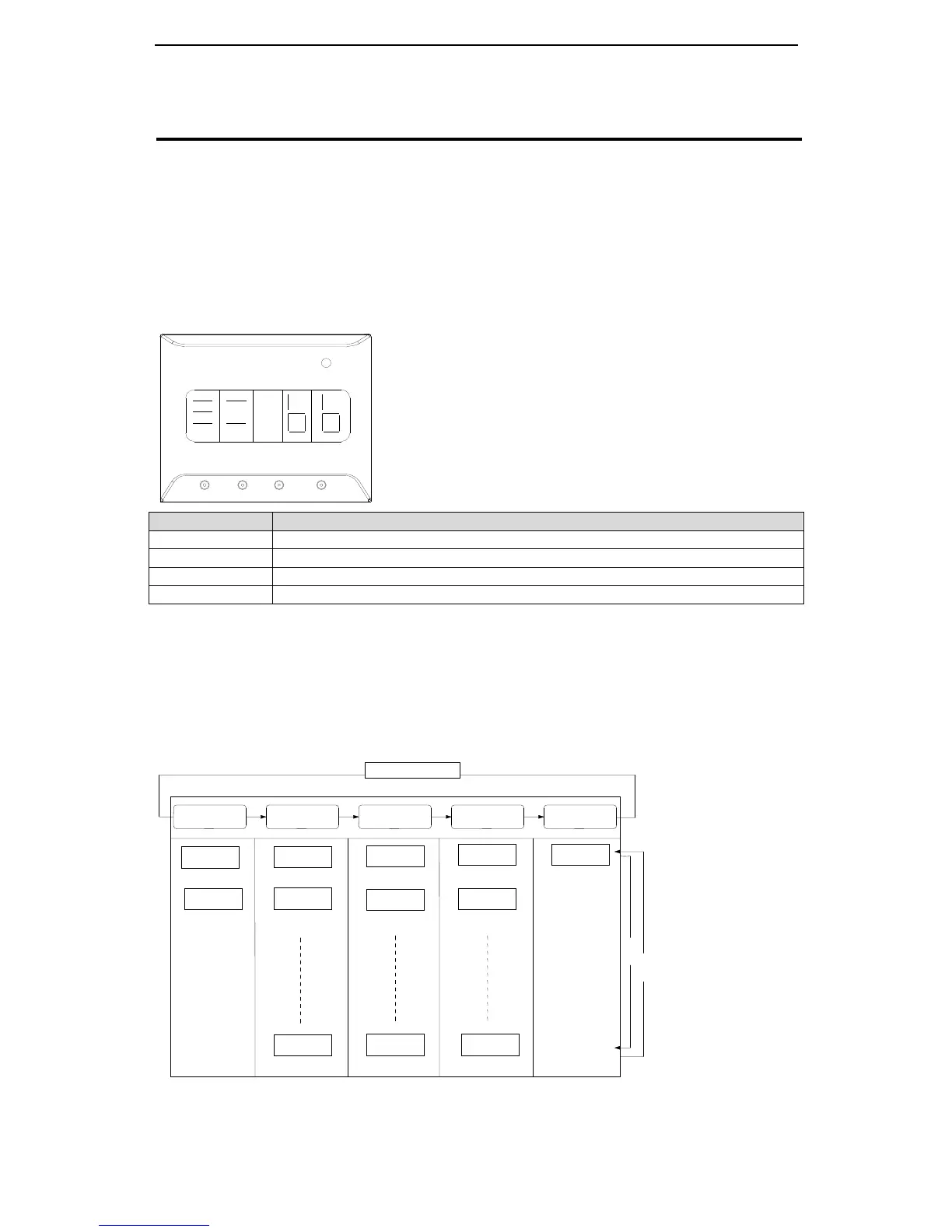

4 Use the operate panel
4-1．Basic Operation
4-1-1. Functions of operate panel
 5-bit LED: Displaying parameter settings, status or alarm.
 Power LED POWER: The LED is on when the servo drive is powered on.
Key Name
Function
STATUS/ESC
Press: Status switch, status return
INC
Press: Increase the value; Press and hold: Increase the value continuously
DEC
Press: Decrease the value; Press and hold: Decrease the value continuously
ENTER
Press: Shift the editing digit; Press and hold: Enter a status, Enter
4-1-2. Basic Mode Switching
The operate panel can display the status, set parameter and run the command by switching
the basic mode.
The running status, auxiliary function, parameter setting, and monitoring are the basic
modes. The modes switch as the below diagram by pressing STATUS/ESC.
Display mode:
 Monitor Function U－XX: XX means the number of the monitor function.
 Auxiliary Function FX－XX: The first X means group No., the last two X means the
STA/ESC
DEC
INC
ENTER
power
P0-00
State
Parameter
Monitor
Alarm
Auxiliary
U0-00
F0-00
E-00X
bb
run
Code
U-02
Torque
U-22
Run
Idle
Speed
P1-00
P5-00
F1-00
Jog
F4-00
Reset
Function
Control
Function
Terminal
STA/ESC
INC
DEC
