Xinje DS2-22P3-AS User Manual

54
5-5-9. Filter
P3-07
speed command filter time
Unit
Default
Range
Suitable mode
Modify
Effective
0.01ms
0
0~65535
3, 4, 5, 6, 7
Servo OFF
Immediately
The speed command passes the 1-time delay filter and become smooth speed command. If set it too
large, the reponse will be slow.
P3-08
speed feedback filter time
Unit
Default
Range
Suitable mode
Modify
Effective
0.01ms
0
0~65535
3, 4, 5, 6, 7
Servo OFF
Immediately
Smooth filter the speed feedback. If set it too large, the speed feedback will distort and affect the
control result.
5-5-10. Speed command input dead voltage
5-6．Speed control (internal speed)
Basic parameter
Parameter
Name
Reference
P0-01
Control mode selection
5-6-1
P5-10
Servo ON signal /S-ON
5-2-1
P3-01
Internal speed 1
5-6-2
P3-02
Internal speed 2
P3-03
Internal speed 3
P5-17
/SPD-D internal speed direction selection
5-6-3
P5-18
/SPD-A internal speed selection
P5-19
/SPD-B internal speed selection
P3-10
Speed command input dead voltage
Unit
Default
Range
Suitable mode
Modify
Effective
0.01V
0
0~100
4
Servo OFF
Immediately
Note: if the input speed command voltage is in the range of this parameter, the input voltage is
considered to be 0.

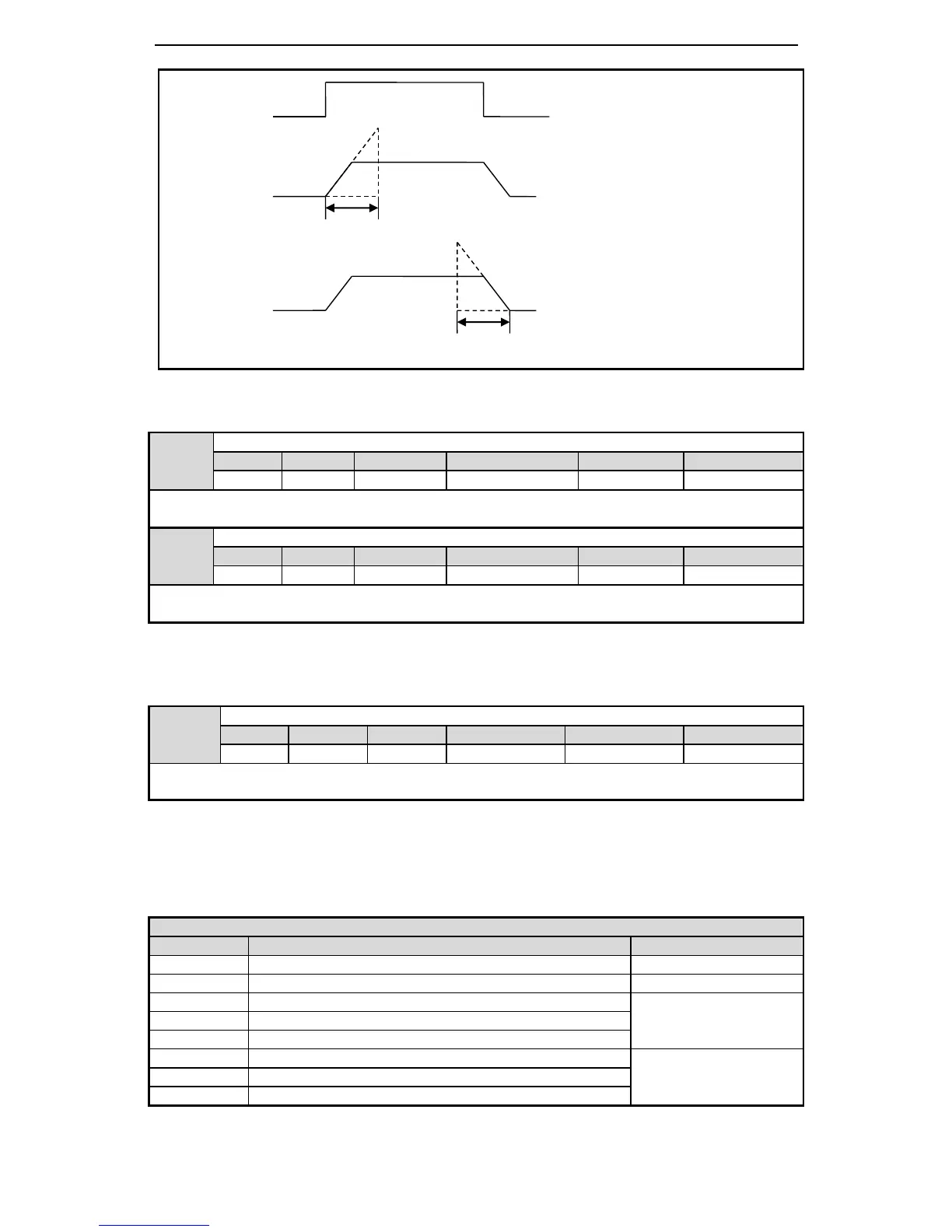

P3-06: set the time
P3-05: set the time
Speed command
Internal speed
command
Soft start
Rated speed
Rated speed
