8-7
LOWR
Lower unit

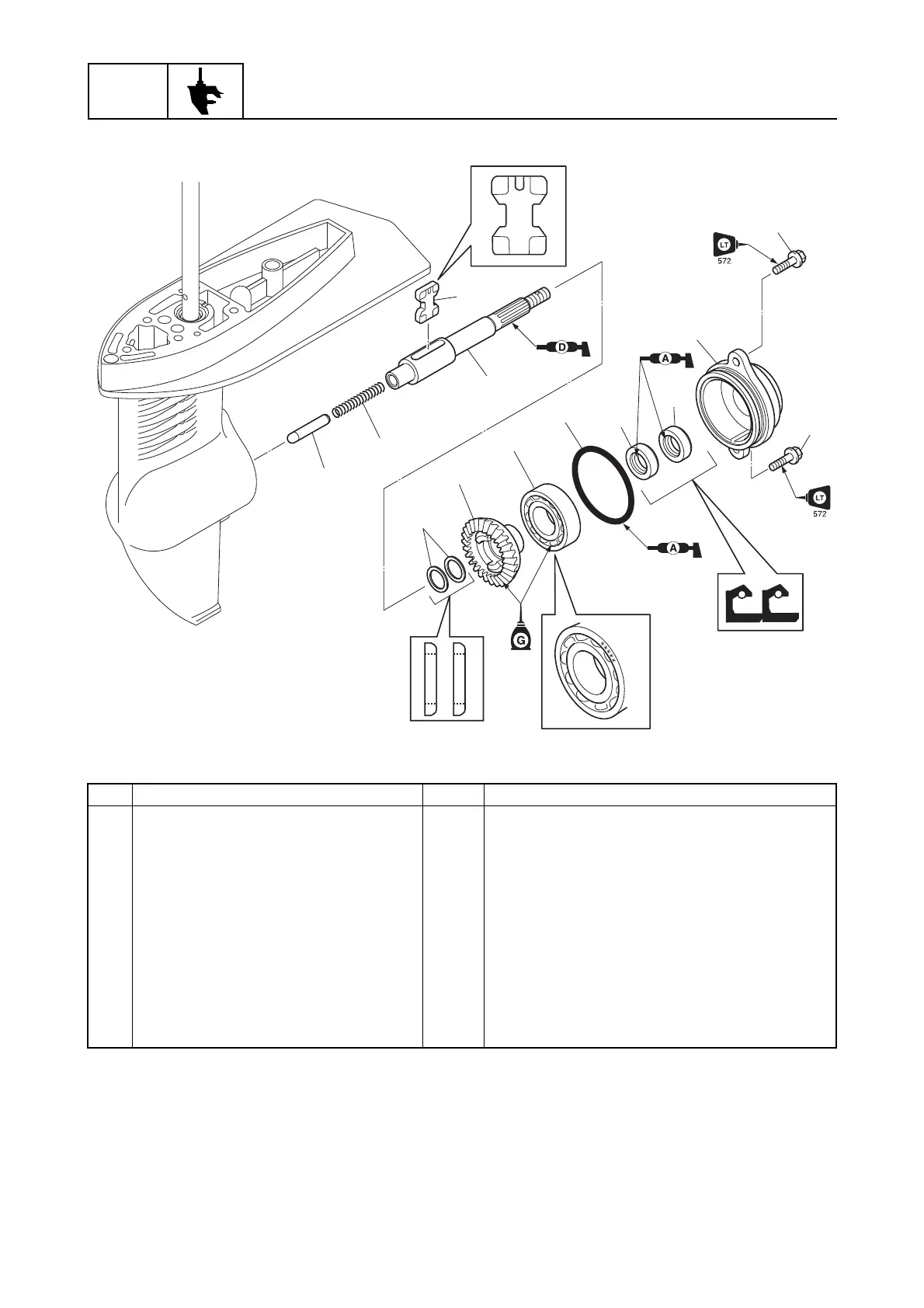

Propeller shaft housing
No. Part name Q’ty Remarks
1 Shift plunger 1
2Spring 1
3 Dog clutch 1
4 Propeller shaft 1
5 Washer 2
6 Reverse gear 1
7 Ball bearing 1 
8O-ring 1 
9 Oil seal 2 
10 Propeller shaft housing 1
11 Bolt 2 M6 15 mm
1
2
3
4
5
6
7
8
10
11
11
9
9
