3-5
Rigging information

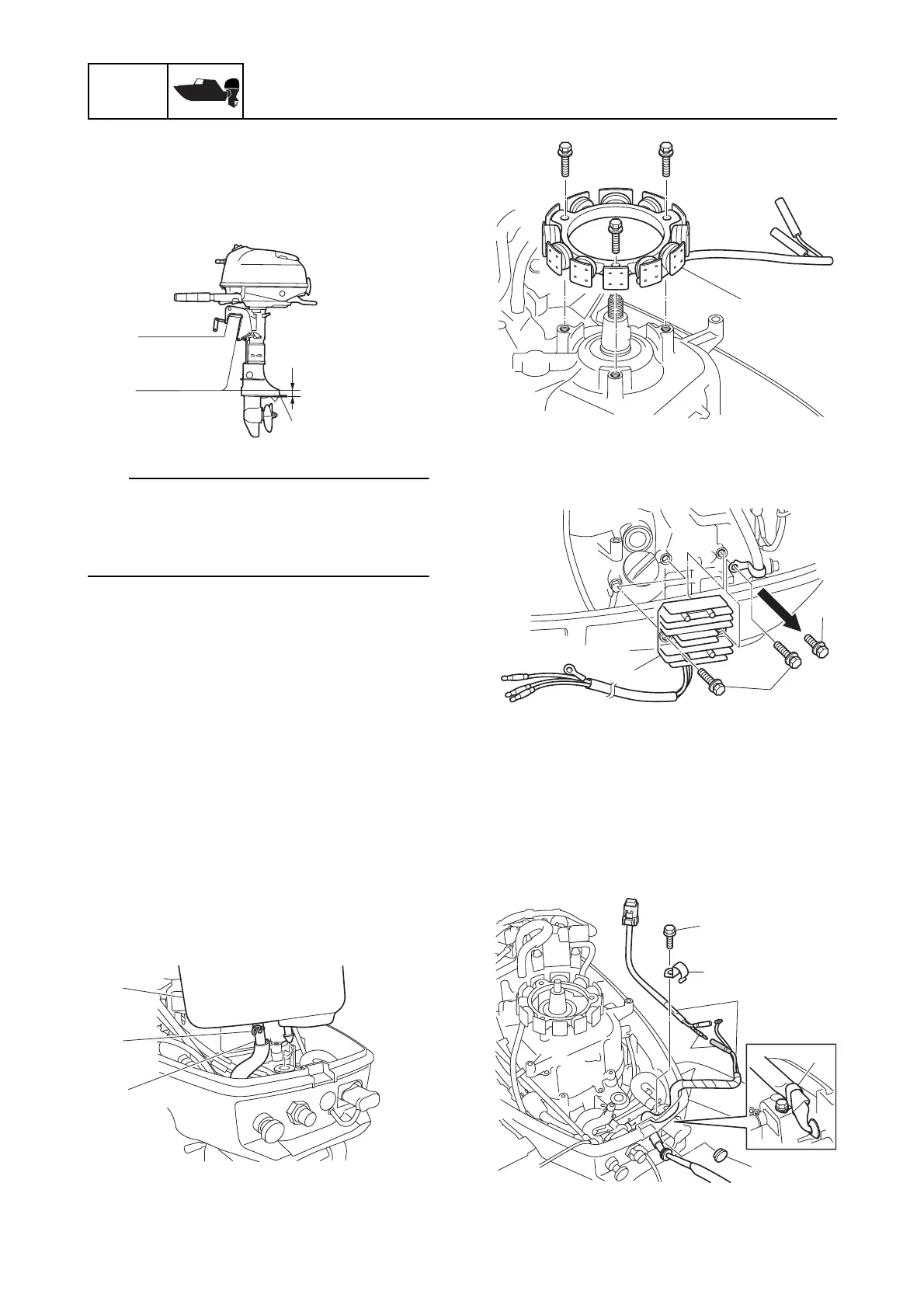

2. Adjust the position of the outboard motor
so that the height of the anti-cavitation
plate e is between the bottom of the
boat and a maximum of 25.0 mm (1.0 in)
f below it.
This mounting height information is for refer-
ence only. It is impossible to provide com-
plete instructions for every possible boat and
outboard motor combination.
3. Tighten the clamp screws.
Installing the charging system
(optional for European market)
1. Drain any remaining fuel from the fuel
tank.
2. Remove the manual starter. See
“Removing the manual starter” (7-7).
3. Remove the flywheel magnet. See
“Removing the flywheel magnet” (7-19).
4. Slide the clamp a down, and then
disconnect the fuel hose b.
5. Remove the fuel tank c.
6. Install the lighting coil d.
7. Remove the bolt e, and then install the
Rectifier Regulator f using the included
bolts g.
8. Remove the grommet h, and then route
the leads i.
9. Install the holder j using the fuel joint
bolt k, and then fasten the leads using
the holder j.
10. Connect the connector a of leads i.
To Next Page
