Yamaha F4B Service Manual

7-5
POWR
Power unit

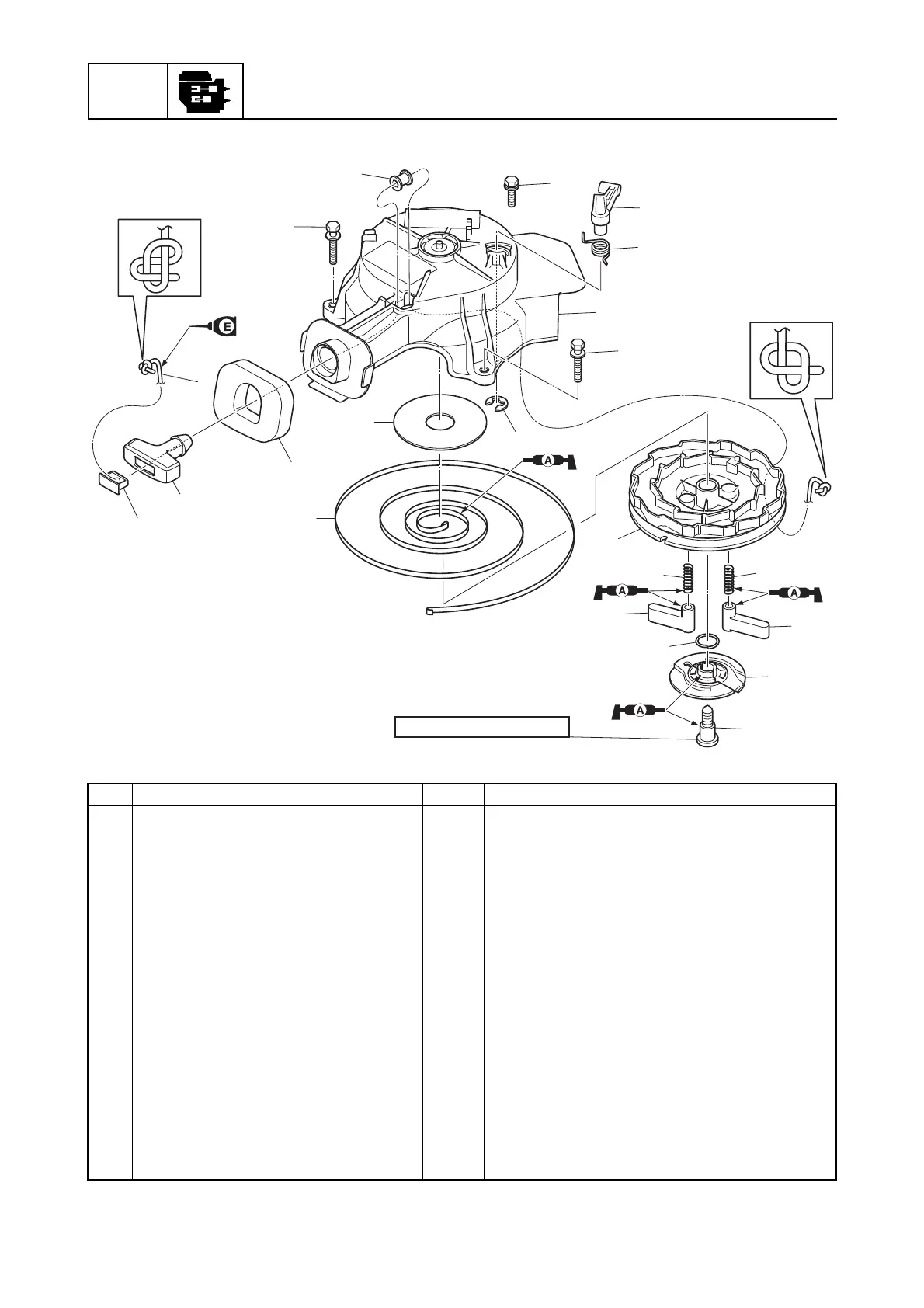

Manual starter
No. Part name Q’ty Remarks
1Cap 1
2 Starter handle 1
3 Rubber seal 1
4 Starter rope 1 1800.0 mm (70.9 in) (reference data)
5Bolt 2 M6  35 mm
6Guide 1
7Bolt 1 M6  20 mm
8 Starter plunger 1
9Spring 1
10 Cover 1
11 Sheave drum 1
12 Spring 2
13 Drive pawl 2
14 Clip 1
15 Drive plate 1
16 Drive plate screw 1
17 E-clip 1
10
5
5
7
8
9
17
18
19
11
12
12
13
13
14
15
16
1
2
3
4
6
7 N·m (0.7 kgf·m, 5.2 ft·lb)
