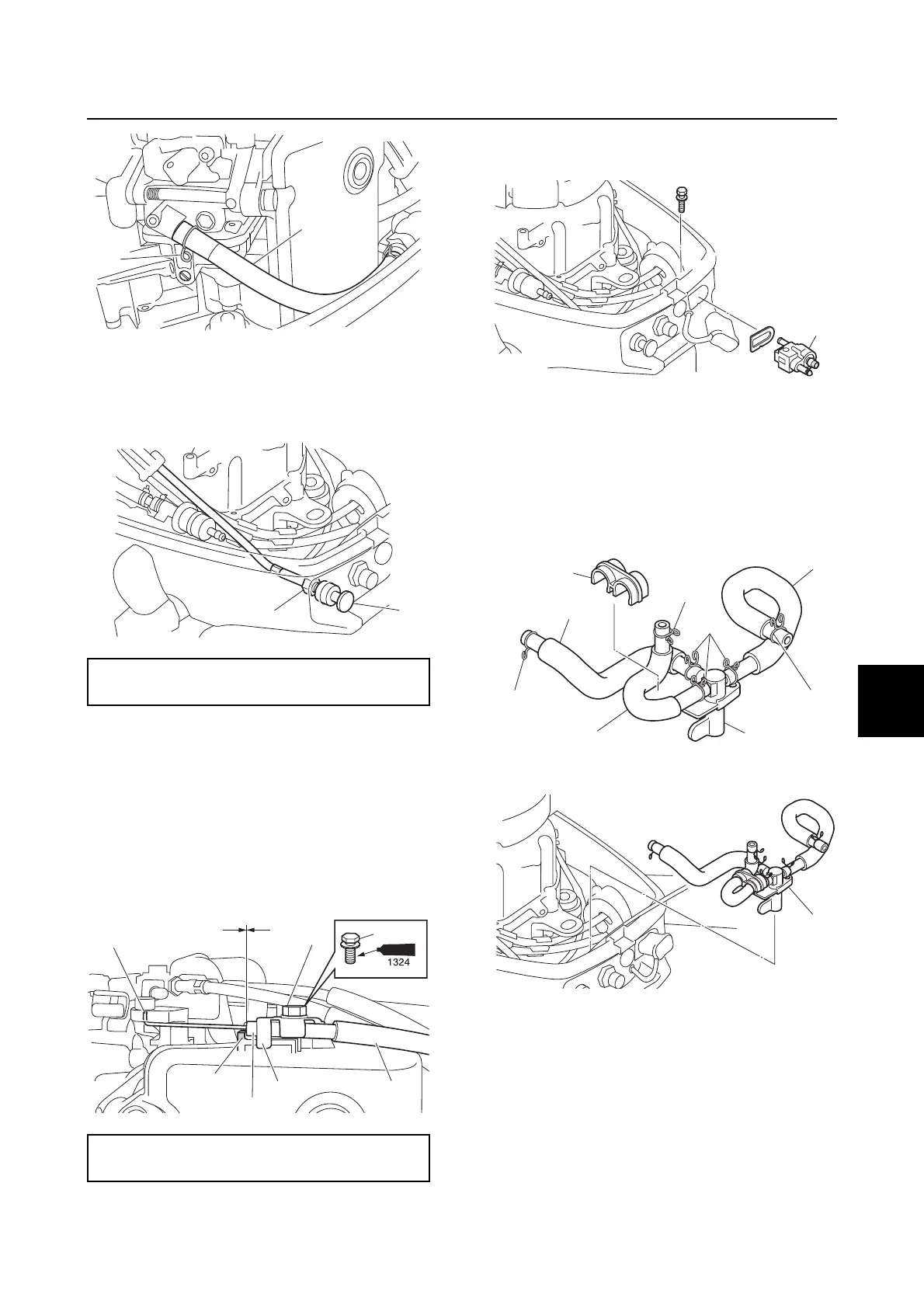

8. Pass the choke cable m through the hole
in the bottom cowling, and then tighten
the choke cable nut n to the specified
torque.
9. Insert the cable end a into the hole of
choke lever.
10. Place the outer tube end b of choke
cable m so that it contacts the stopper
c, and then install the holder n.
11. Tighten the choke holder bolt o to the
specified torque.
Installing the fuel tank
1. Install the fuel joint a.
2. Install the clamps b and c temporarily
onto the fuel hoses d, e, and f, and
then connect the hoses to the fuel cock
g.
3. Fasten the fuel hoses using the clamps
b, and then install the holder h.
4. Install the fuel cock g.
5. Tighten the fuel cock screw i to the
specified torque.
Choke cable nut n:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
Choke holder bolt o:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
