6-14
Intake silencer
0
1
2
3
4
5
6
7
8
9
10
A

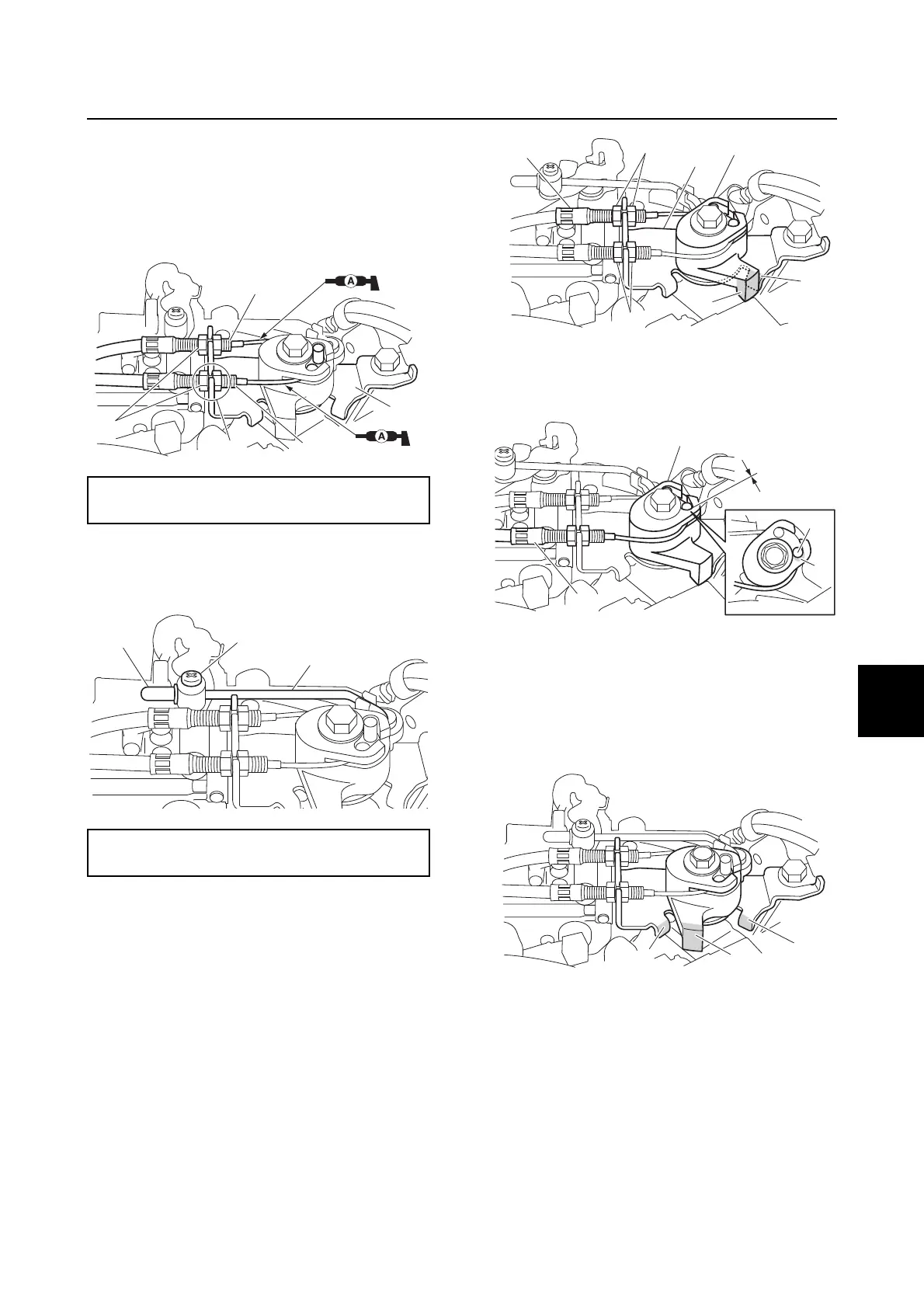

3. Install the shorter cable f to the section
a of the bracket g.
4. Install the throttle cable h, and then
tighten the locknuts b to the specified
torque.
5. Install the throttle link rod i and cap j,
and then tighten the throttle link screw k
to the specified torque.
Adjusting the throttle cable and
throttle link
1. Loosen the locknuts a.
2. Turn the throttle grip to the fully open
position.
3. Adjust the length of cable a so that the
stopper b of the throttle cam b contacts
section c of the bracket c.
4. Adjust the length of cable d so that there
is no clearance between the cable end d
and the section e of the throttle cam b.
5. Check that the section b on the throttle
cam contacts stopper c when the
throttle grip is in the fully open position,
and that the section b contacts stopper
f when the throttle grip is in the fully
closed position.
6. Tighten the throttle cable locknuts a to
the specified torque.
Throttle cable locknut b:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
Throttle link screw k:
1.5 N·m (0.15 kgf·m, 1.11 ft·lb)
a
a
b
c
c
a
b
e
d
b
d
b
c
f
