Yamaha F4B Service Manual

9-15
BRKT

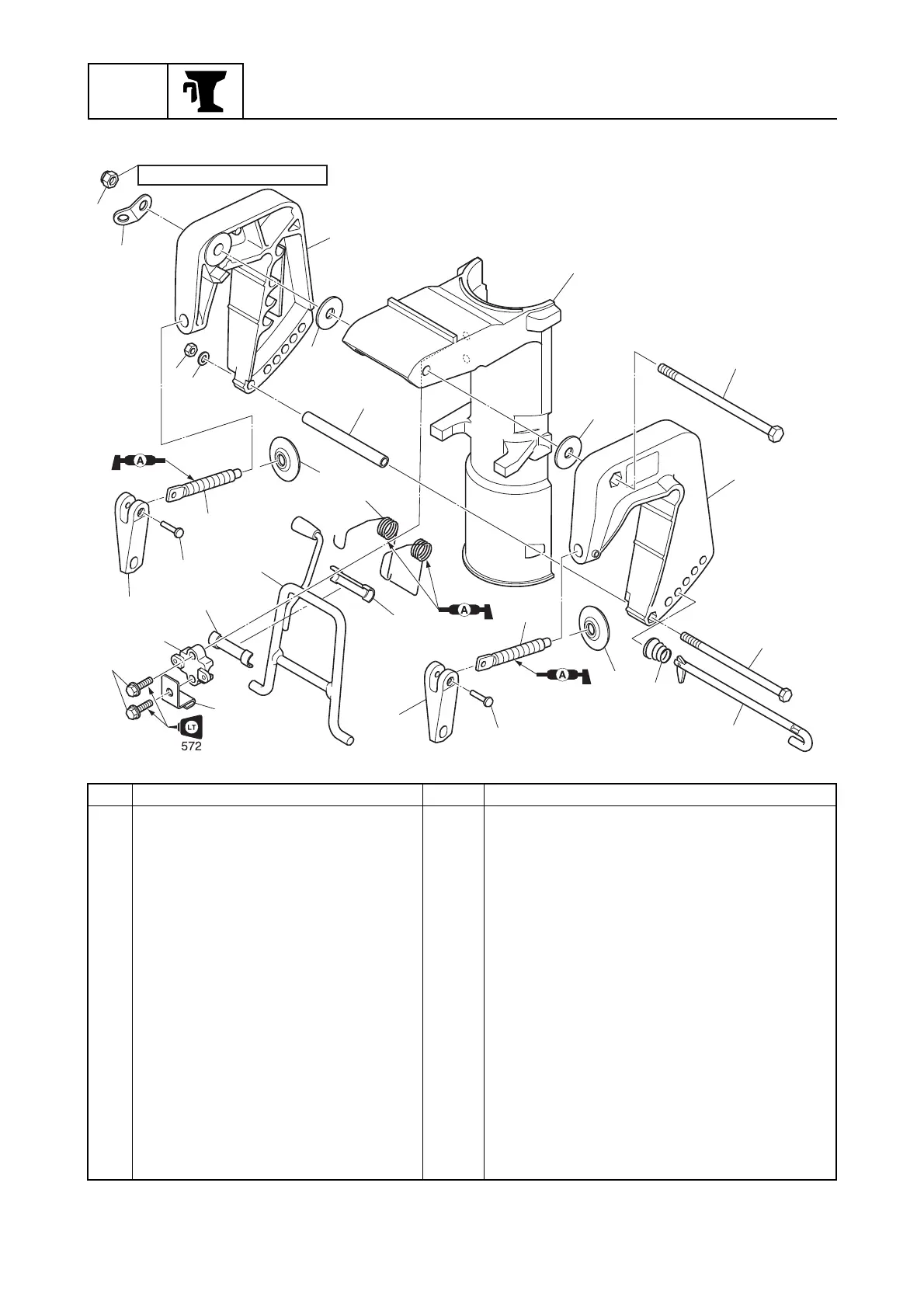

Bracket unit
Clamp bracket
No. Part name Q’ty Remarks
1 Self-locking nut 1
2Plate 1
3Nut 1
4 Washer 1
5 Clamp bracket (STBD) 1
6 Washer 2
7 Collar 1
8Swivel bracket 1
9Bolt 1 M8  135 mm
10 Clamp bracket (PORT) 1
11 Bolt 1 M6  120 mm
12 Tilt pin 1
13 Spring 1
14 Clamp pad 2
15 Clamp screw 2
16 Pin 2
17 Clamp handle 2
8
6
5
2
3
15
16
17
23
14
7
6
9
10
11
12
13
14
15
16
17
19
18
22
21
20
19
1
4
15 N·m (1.5 kgf·m, 11.1 ft·lb)
