Yamaha F4B - Assembling the Clamp Bracket; Disassembling the Clamp Bracket

9-17
BRKT
Bracket unit

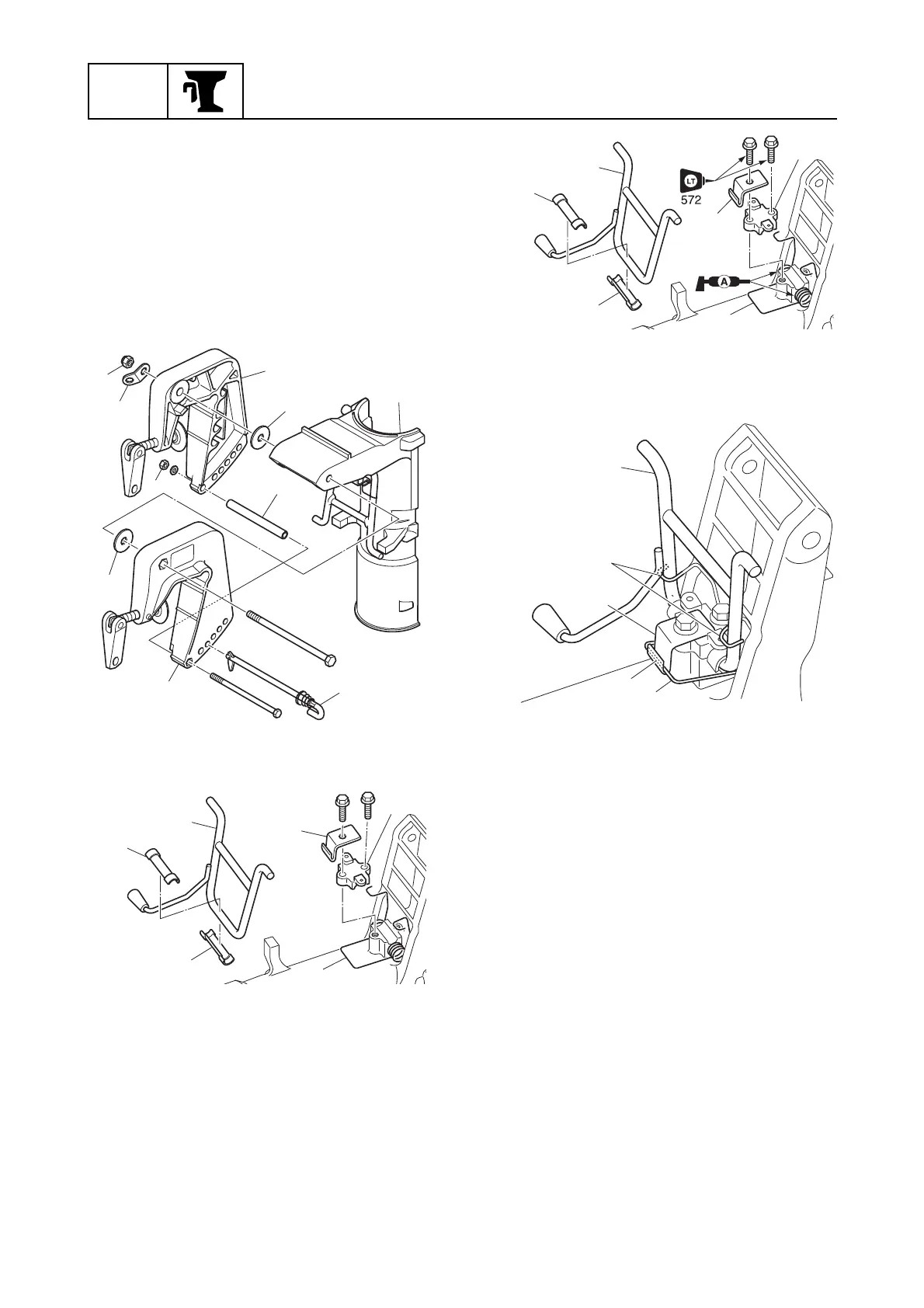

Disassembling the clamp bracket
1. Remove the tilt pin a.
2. Remove the self-locking nut b and nut
c.
3. Remove the plate d, clamp bracket
(STBD) e, washers f, swivel bracket
g, collar h, and clamp bracket (PORT)
i.
4. Remove the plate j, cover k, bushings
l, tilt lock lever m, and spring n.
Assembling the clamp bracket
1. Place the spring a.
2. Install the bushings b, tilt lock lever c,
cover d, and plate e.
3. Hook the sections a of the spring a
onto the tilt lock lever c, and then fit the
section b into the slot in the plate e.
4. Install the bolts f and g into the clamp
bracket (PORT) h.
5. Install the washers i, swivel bracket j,
collar k, clamp bracket (STBD) l onto
the bolts f and g.
6. Install the plate m, self-locking nut n,
washer o, nut p, and tilt pin q.
7. Tighten the self-locking nut n to the
specified torque.
a
b
c
d
e
f
f
g
h
i
n
m
l
l
k
j
a
c
b
b
d
e
c
a
b
e
a
