Fuel system

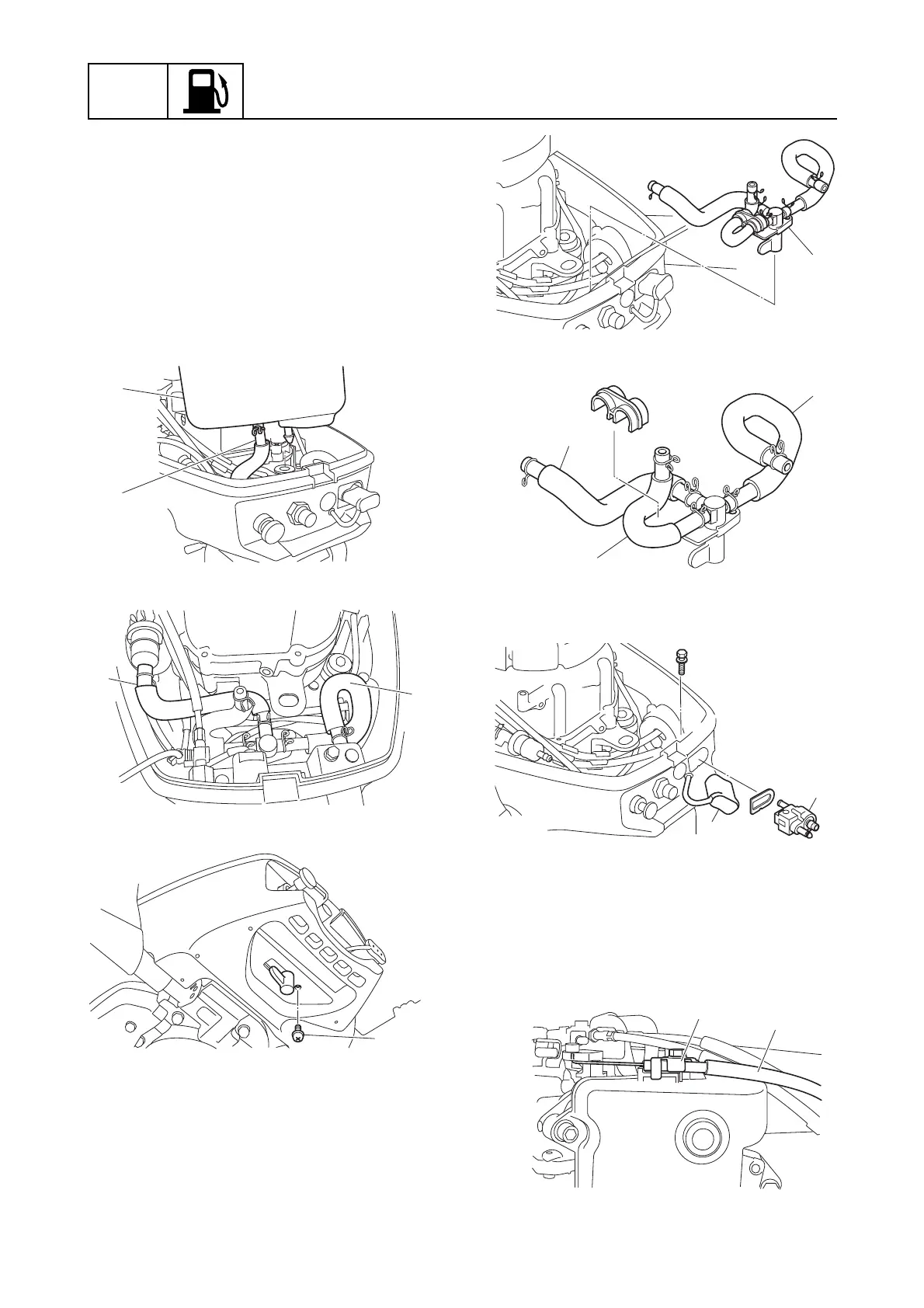

Removing the fuel tank
Cover the fuel components using a rag to
prevent fuel from spilling out.
1. Drain the fuel from the fuel tank.
2. Remove the manual starter. See
“Removing the manual starter” (7-7).
3. Disconnect the fuel hose a, and then
remove the fuel tank b.
4. Disconnect the fuel hoses c and d.
5. Remove the fuel cock screw e.
6. Remove the fuel cock f.
7. Remove the fuel hoses a, c, and d.
8. Remove the cap g, and then remove the
fuel joint h.
Removing the primer pump
Cover the fuel components using a rag to
prevent fuel from spilling out.
1. Remove the holder a, and then remove
the choke cable b.
c
d
e
c
d
a
h
g
a
b
