Drive shaft and lower case
0
1
2
3
4
5
6
7
8
9
10
A

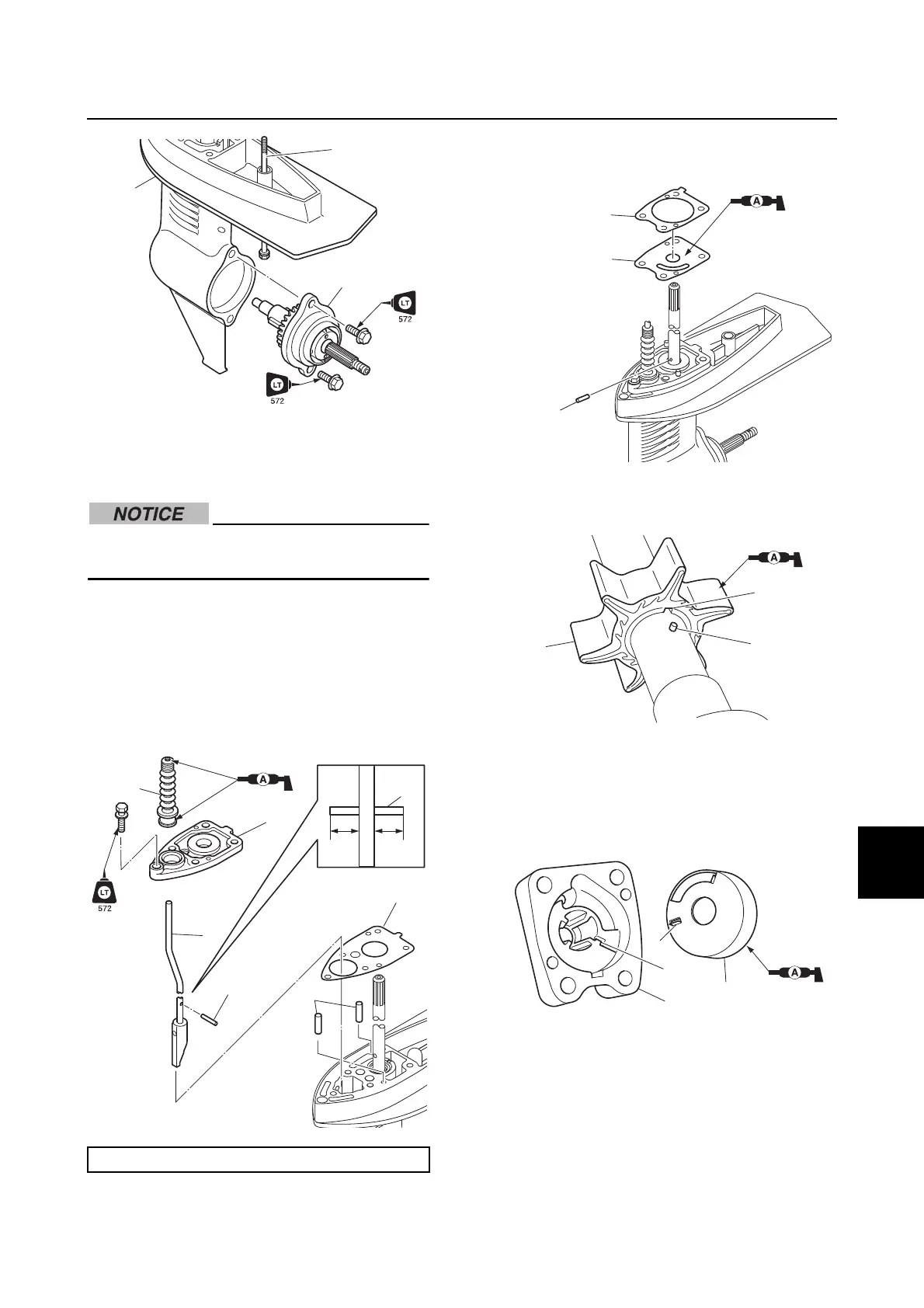

Installing the water pump and shift
rod
Do not reuse a gasket, always replace it
with a new one.
1. Install the pin a to the shift rod b.
2. Install the rubber seal c to the housing
d, and then install the shift rod b.
3. Install the dowels e, a new gasket f,
and the housing d.
4. Install the outer plate cartridge g, a new
gasket h, and then install the pin i.
5. Align the slot b in the impeller j with
the pin i, and then install the impeller.
6. Align the protrusion c on the insert
cartridge k with the groove d in the
water pump housing l, and then install
the insert cartridge.
7. Install the water pump housing assembly.
NOTICE: Do not turn the drive shaft
counterclockwise. Otherwise, the
water pump impeller could be
damaged.
a: 1.0 mm (0.04 in)
