RX-V361/HTR-6030/DSP-AX361
13
RX-V361/HTR-6030/
DSP-AX361

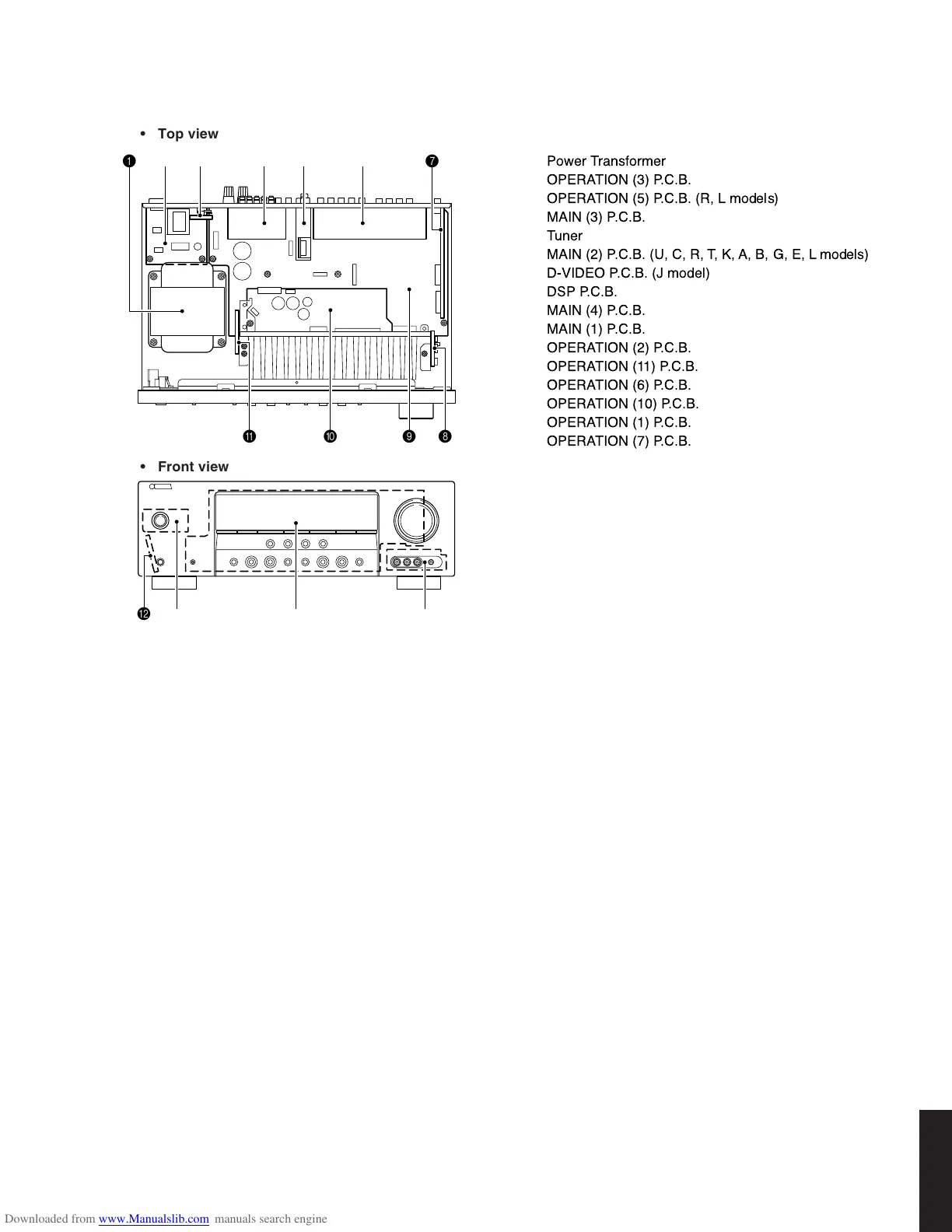

■ INTERNAL VIEW
32 4 5 6
C D E
1
2
3
4
5
6
7
8
9
0
A
B
C
D
E
Power Transformer
OPERATION (3) P.C.B.
OPERATION (5) P.C.B. (R, L models)
MAIN (3) P.C.B.
Tuner
MAIN (2) P.C.B. (U, C, R, T, K, A, B, G, E, L models)
D-VIDEO P.C.B. (J model)
DSP P.C.B.
MAIN (4) P.C.B.
MAIN (1) P.C.B.
OPERATION (2) P.C.B.
OPERATION (11) P.C.B.
OPERATION (6) P.C.B.
OPERATION (10) P.C.B.
OPERATION (1) P.C.B.
OPERATION (7) P.C.B.
1
7
8
A90
B
• Front view
• Top view

Yamaha HTR-6030 Specifications

General

Channels	5.1
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Total Harmonic Distortion	0.9%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Surround Sound Effects	Yes
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	14
Tuner Bands	FM/AM
Preset Station Qty	40
Frequency Response	10 Hz - 100 kHz
Power Output	100 W per channel
Built-in Decoders	Dolby Digital, DTS
Connector Type	Headphones, Composite video/audio input/output
Video Inputs/Outputs	composite video / audio input, composite video / audio output, HDMI input, HDMI output
Audio Inputs/Outputs	2 Optical digital inputs, 1 Coaxial digital input
