Yamaha HTR-6030 Service Manual

2
ABCDEFGH I J
1
3
4
5
7
RX-V361/HTR-6030/DSP-AX361
6
96

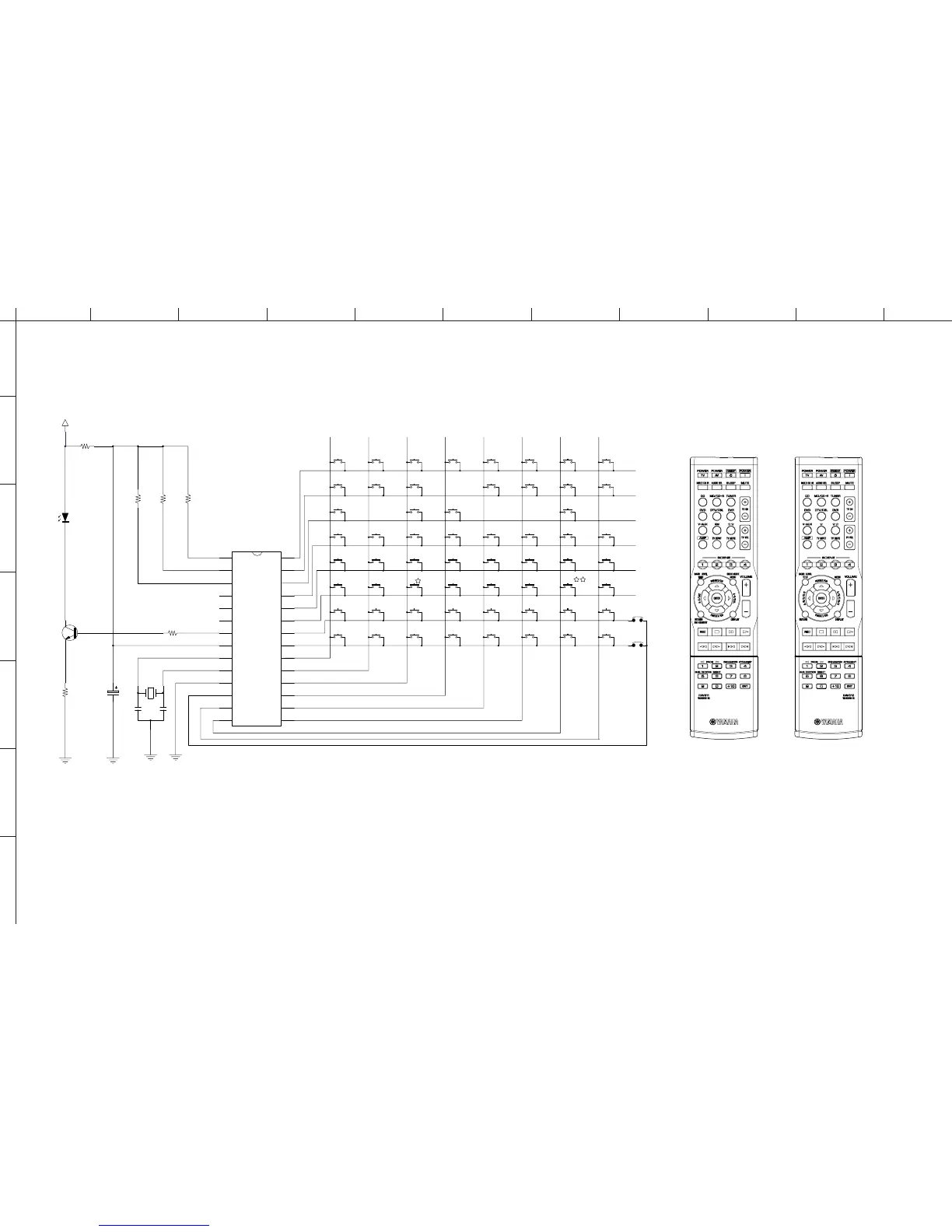

• SCHEMATIC DIAGRAM
RAV311
RX-V361 (U, C models)
HTR-6030 (U, C models)
RAV312
RX-V361 (R, T, K, A, L models)
HTR-6030 (R, T, K, A models)
DSP-AX361 (J model)
• PANELS
■ REMOTE CONTROL
● RAV311 RX-V361 (U, C models), HTR-6030 (U, C models)
RAV312 RX-V361 (R, T, K, A, L models), HTR-6030 (R, T, K, A models), DSP-AX361 (J model)
Q1
SMT
R1
1 ohm
R2
47 ohms
R3
100 ohms
R4
100 K-ohms
R5
100 K-ohms
C1
47uF
D1
IR Diode
P25
1
P26
2
P27
3
P04
4
VDD
8
XTAL2
9
XTAL1
10
P31
11
P32
12
P35
15
P05
5
P06
6
P07
7
P37
16
P36
17
P30/Pref
18
P00
19
P01
20
P02
21
VSS
22
P03
23
P20
24
P21
25
1
3
2
P22
26
P23
27
P24
28
P34
14
P33
13
U1
ZLR32300H2832G
+3V
J1
J2
R6
100 K-ohms
TV POWER MULTI CH INPUT AV POWER MUTE POWER SLEEP STANDBY AUDIO SEL.
DVD CD D-TV/CBL TV CH + TV CH - TUNER DVR MD/CD-R
V-AUX/DOCK AMP
XM (RAV311)
(RAV312)
TV VOL - TV VOL + TV MUTE TV INPUT
TITLE
SCENE
1
UP
SCENE
4
VOL up
SCENE
3
MENU
SCENE
2
5 9 6 8 ENTER +10 7 0
124 3
LEFT RETURN SELECT VOL down DISPLAY RIGHT DOWN
REW (SEARCH -) REC FF (SEARCH +) SKIP+ PLAY PAUSE SKIP- STOP
X1
8MHz

Yamaha HTR-6030 Specifications

General

Channels	5.1
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Total Harmonic Distortion	0.9%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Surround Sound Effects	Yes
Surround System Class	5.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	14
Tuner Bands	FM/AM
Preset Station Qty	40
Frequency Response	10 Hz - 100 kHz
Power Output	100 W per channel
Built-in Decoders	Dolby Digital, DTS
Connector Type	Headphones, Composite video/audio input/output
Video Inputs/Outputs	composite video / audio input, composite video / audio output, HDMI input, HDMI output
Audio Inputs/Outputs	2 Optical digital inputs, 1 Coaxial digital input
