Yealink CP860 User Manual

Using Your Phone with SIP/Cloud Account
113

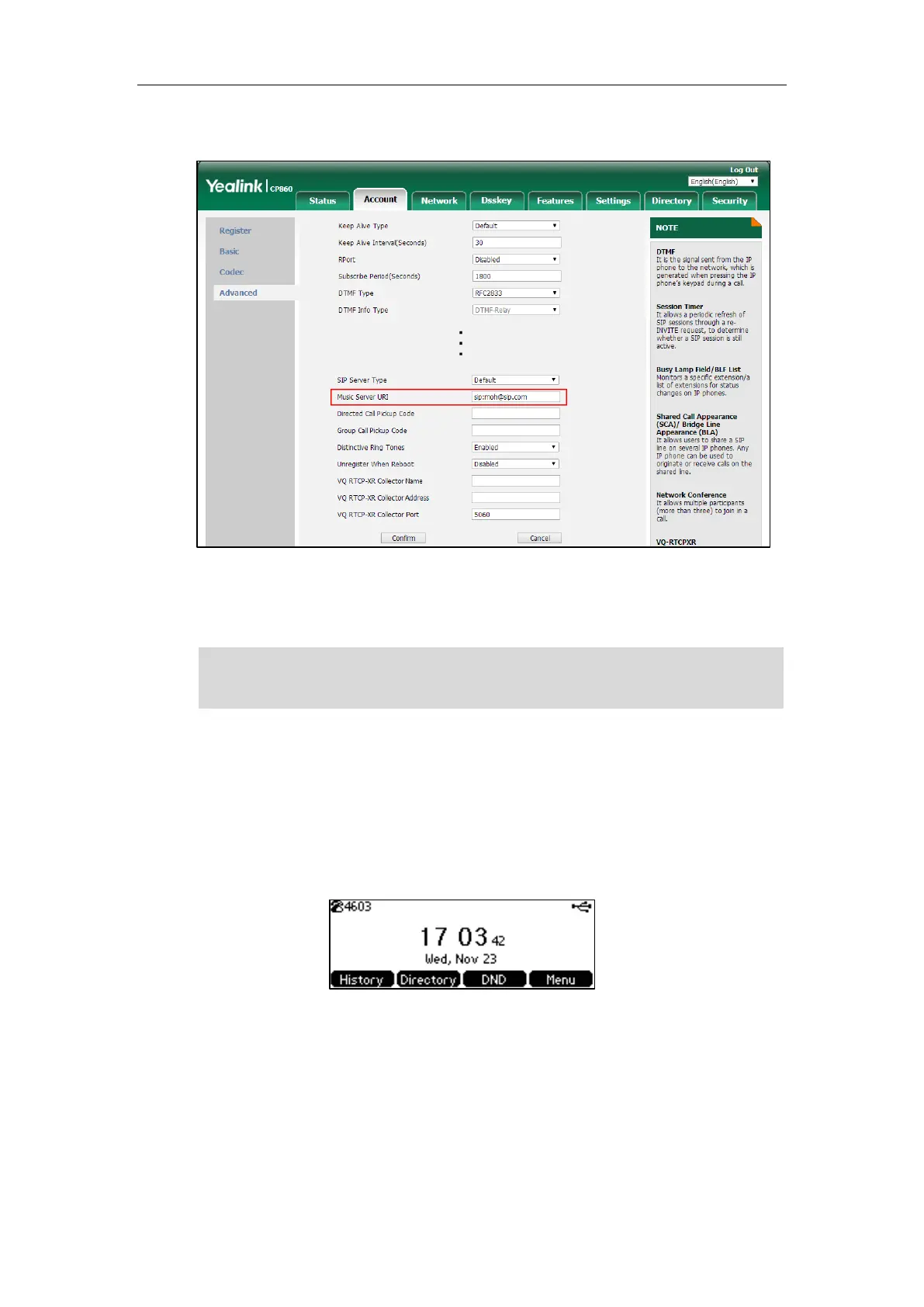

2. Enter the SIP URI (e.g., sip:moh@sip.com) in the Music Server URI field.
3. Click Confirm to accept the change.
When you have placed a call on hold, the held party can hear the music.
Note
Shared Call Appearance (SCA)
You can use SCA feature to share an extension which can be registered on two or more IP
phones at the same time. The shared line is indicated by a different line icon.
In the following figure, the registered line is shared:
If two phones share a line, an incoming call to this extension will cause both phones to ring
simultaneously. The incoming call can be answered on either phone but not both.
This feature is very useful in the boss and secretary scenario. For example, the secretary can
share the boss's extension on her phone. When there is an incoming call to the extension of the
boss, both the phones of the boss and the secretary will ring simultaneously. Either the boss or
the secretary can answer the call.
For this feature to function, all involved parties cannot use encrypted RTP (SRTP).
Music on hold server is configurable via web user interface only.

Yealink CP860 Specifications

General

Speakerphone	Yes
Voice codecs	G.711, G.722, G.729ab, iLBC
Handset type	-
Product type	IP Phone
Product color	Black
Display resolution	192 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	1
Networking standards	IEEE 802.1x, IEEE 802.3af
Supported network protocols	IPv4/IPv6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Number of handles included	- pc(s)
Storage temperature (T-T)	10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	260 mm
Width	320 mm
Height	52 mm
