Yealink SIP-T46S User Manual

User Guide for T4 Series IP Phones
132

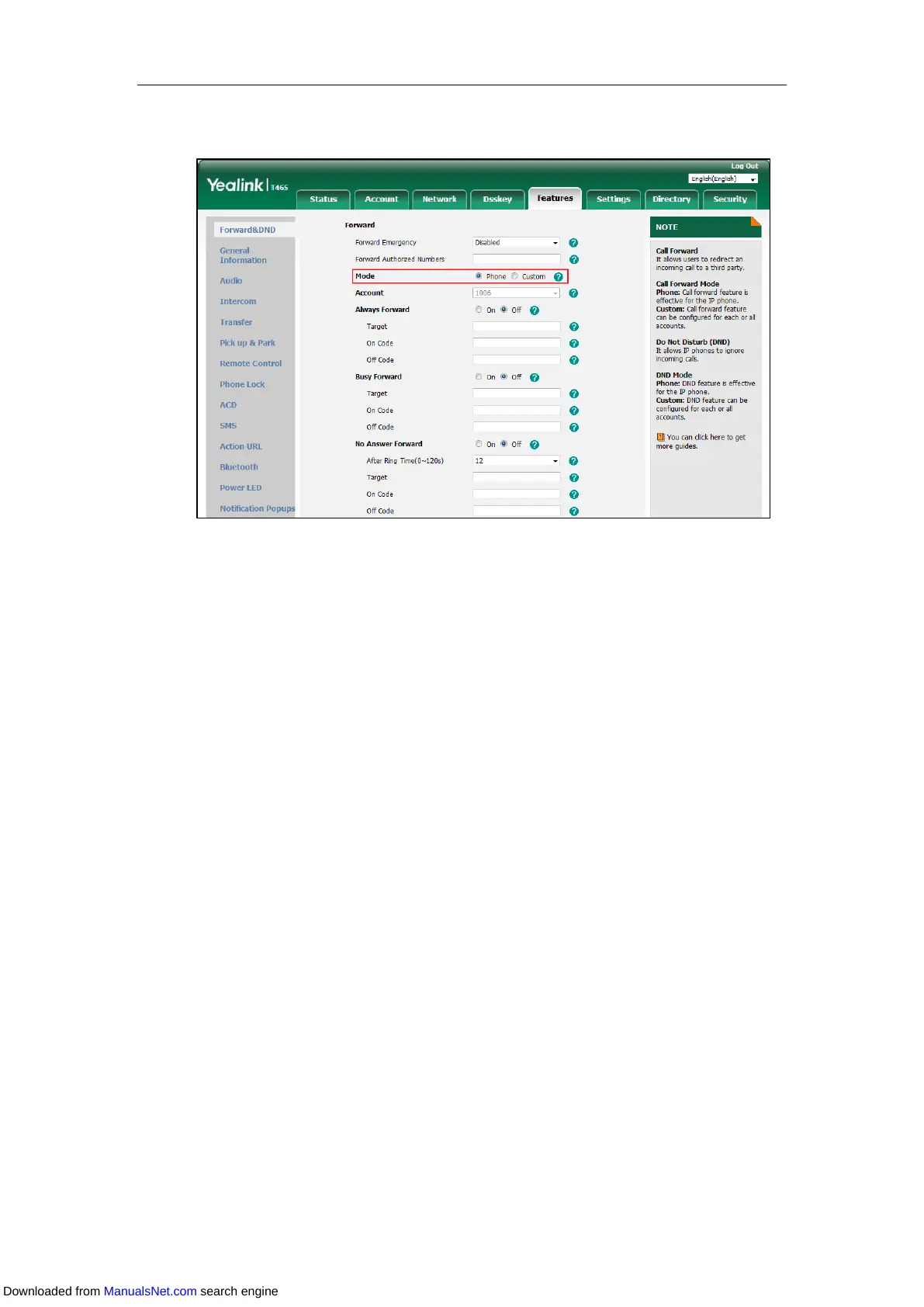

2. In the Forward block, mark the desired radio box in the Mode field.
3. Click Confirm.
Phone Mode
Activating Call Forward in Phone Mode
Procedure:
1. Navigate to Menu->Features->Call Forward, and then select a desired forwarding type.
2. Select Enabled from the Always Forward/Busy Forward/No Answer Forward field.
For the SIP-T48S/T48G IP phone, tap the On radio box of the Always Forward/Busy
Forward/No Answer Forward field.
3. Enter the destination number you want to forward incoming calls to in the Forward to field.
4. If you select the No Answer Forward option, select the desired ring time to wait before
forwarding from the After Ring Time field.
5. (Optional.) Enter the always/busy/no answer forward on code or off code respectively in the
On Code or Off Code field.
If the forward on code or off code is configured, the IP phone sends the corresponding
code to the server when a certain action takes place. For example, if you set the Always
Forward on code to be *71 (may vary on different servers), and the target number to be
1234. When you activate Always Forward on the IP phone, the IP phone sends *711234 to
the server, and then the server will activate Always Forward feature on the server side,
hence being able to get the right status of the extension.
6. Press Save.
The call forward icon on the Idle screen indicates that the call forward is activated.
Downloaded from ManualsNet.com search engine

Yealink SIP-T46S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	10
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
Package depth	255 mm
Package width	274 mm
Package height	128 mm
