TECHNICAL DATA
WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS
GENERAL
Weights of specic chiller models vary signicantly as
options are added. As a result, total weights, weights at
individual isolator positions, and actual isolator selection
at each position cannot be published due to the thou-
sands of possible combinations. This information will
be available when the specic chiller/option selection
is made from the local YORK sales ofce. Be aware,
weights will change with each option along with pos-
sible isolator changes. Weights and isolators may need
to be recalculated when option selections are changed.
Whenever the isolator option is ordered, the isolators
will be shipped loose with the chiller. Packed with
the isolators and also in the control panel information
packet is a drawing and table specically for each
chiller, based on the option selection. The drawing and
table will be similar to Figure 8 below. The drawing
will show the isolator locations along with weight in
pounds and kilograms at the specic location, isolator
position, and location measurements for each isolator.
Location X Distance inches
(mm)
Y Distance inches
(mm)
Vendor Number Weight
R1 3.75 (95) 78.0 (1981.2) CIP-C-1350 / Yellow 895.0 (405.97)
L1 3.75 (95) 10.0 (254.0) CIP-C-1350 / Yellow 895.0 (405.97)
R2 48.5 (1231.9) 87.125 (2213.0) CIP-C-1750 / Black 1454.0 (659.52)
L2 48.5 (1231.9) 1.03 (26.2) CIP-C-1750 / Black 1446.0 (655.89)
R3 113.88 (2892.6) 87.125 (2213.0) CIP-C-1350 / Yellow 1693.0 (769.93)
L3 113.88 (2892.6) 1.03 (26.2) CIP-C-1350 / Yellow 1575.0 (714.41)
R4 194.5 (4940.3) 87.125 (2213.0) CIP-C-1350 / Yellow 1595.0 (723.48)
L4 194.5 (4940.3) 1.03 (26.2) CIP-C-1000 / Black 1480.0 (671.32)
R5 265.0 (6731.0) 87.125 (2213.0) CIP-C-1000 / Black 775.0 (353.53)
L5 265.0 (6731.0) 1.03 (26.2) CIP-C-1000 / Black 769.0 (348.81)
R6 309.0 (7848.6) 87.125 (2213.0) CIP-C-1000 / Black 671.0 (304.36)
L6 309.0 (7848.6) 1.03 (26.2) CIP-C-1000 / Black 675.0 (306.18)

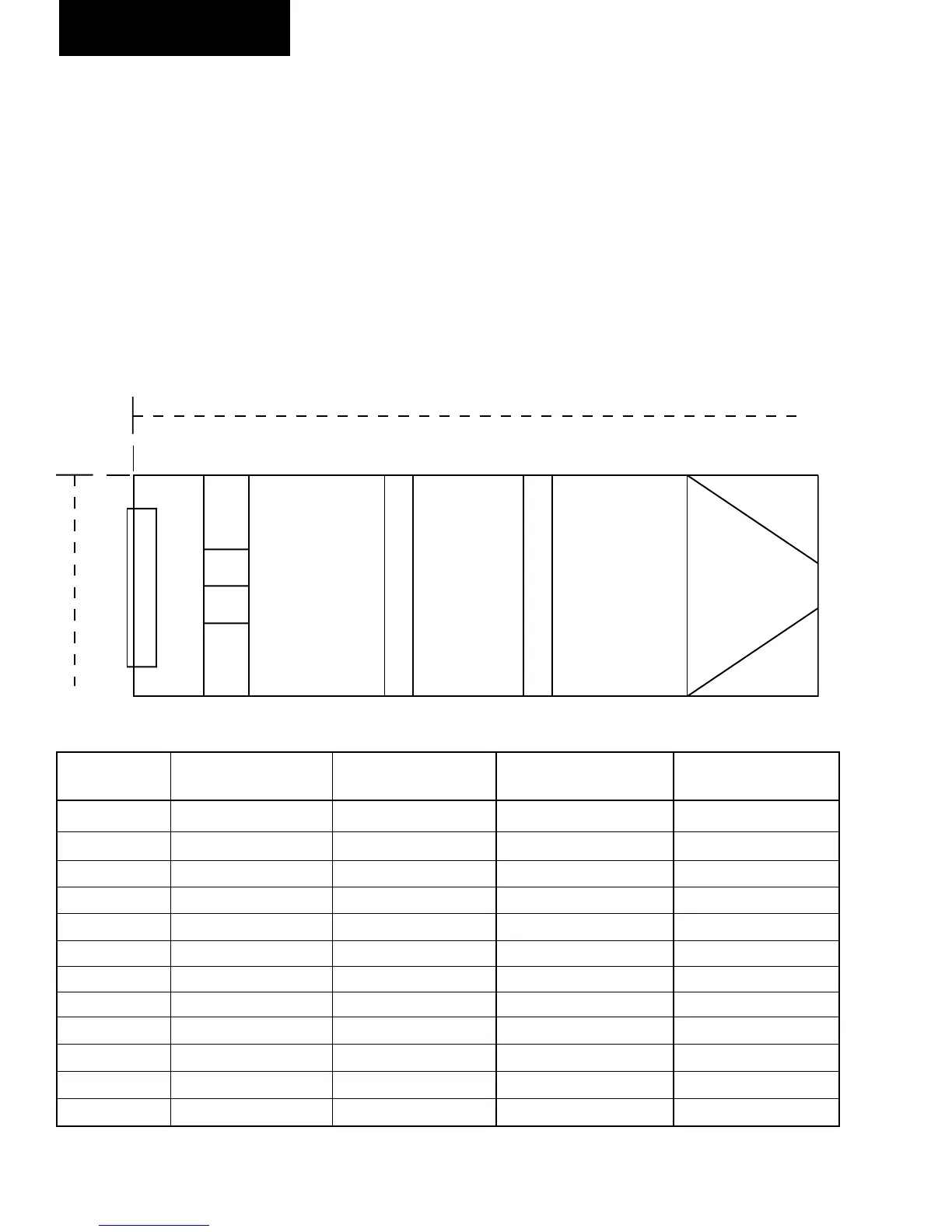

FIG. 8 - SAMPLE PRINTOUT SUPPLIED IN THE ISOLATOR PACKAGE AND IN THE CHILLER PANEL
LITERATURE PACKET
L1 L2 L3 L4 L5 L6
R1 R2 R3 R4 R5 R6
X
Y


0
0
CONTROL PANEL
LD10499
