66
JOHNSON CONTROLS
FORM 201.21-NM1 (616)

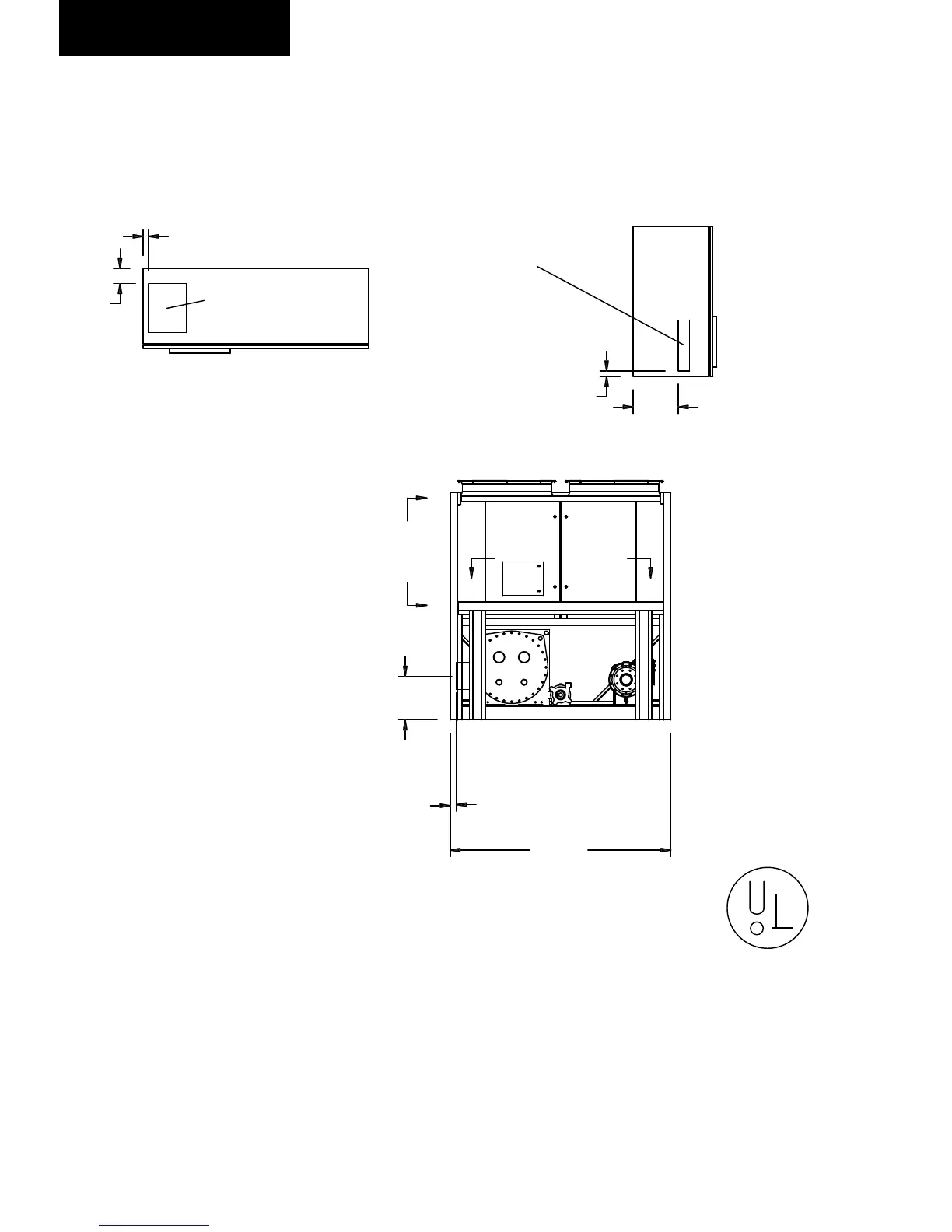

DIMENSIONS - YCAV0157S/P Standard Efîš¿ciency English
LD10520A
Notes:
1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reli-
able operation and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
air ow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high pressure safety
cutout; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit
is no higher than on spring isolators. Recommended minimum clearances: side to wall - 6’ ; rear to wall - 6’; control panel end to wall - 4’; top
– no obstructions allowed; distance between adjacent units - 10’. No more than one adjacent wall may be higher than the unit.
TECHNICAL DATA
R
88 1/8"
4 3/4" (EDGE OF
UNIT TO COOLER
CONNECTION)
VIEW A-A
17 9/16"
VIEW C-C
VIEW B-B
12"
CONTROL ENTRY
3" WIDE X 13 1/2" HIGH
1 1/2"
4"
POWER ENTRY
10" WIDE X 13" HIGH
C
C
B B
1 3/4"
POWER ENTRY IS ON BOTTOM OF PANEL
