130
JOHNSON CONTROLS
FORM 201.21-NM1 (616)
PIN 54 = N
**Weight Range (lbs) **Weight Range (kg) COLOR YORK P/N YORK P/N
UP TO 751 LBS Up to 341 kg ND-C Yellow 029-24584-001
751-1651 LBS 341 to 749 kg ND-D Yellow 029-24584-002
1651-3226 LBS 749 to 1463 kg ND-E Yellow 029-24584-003

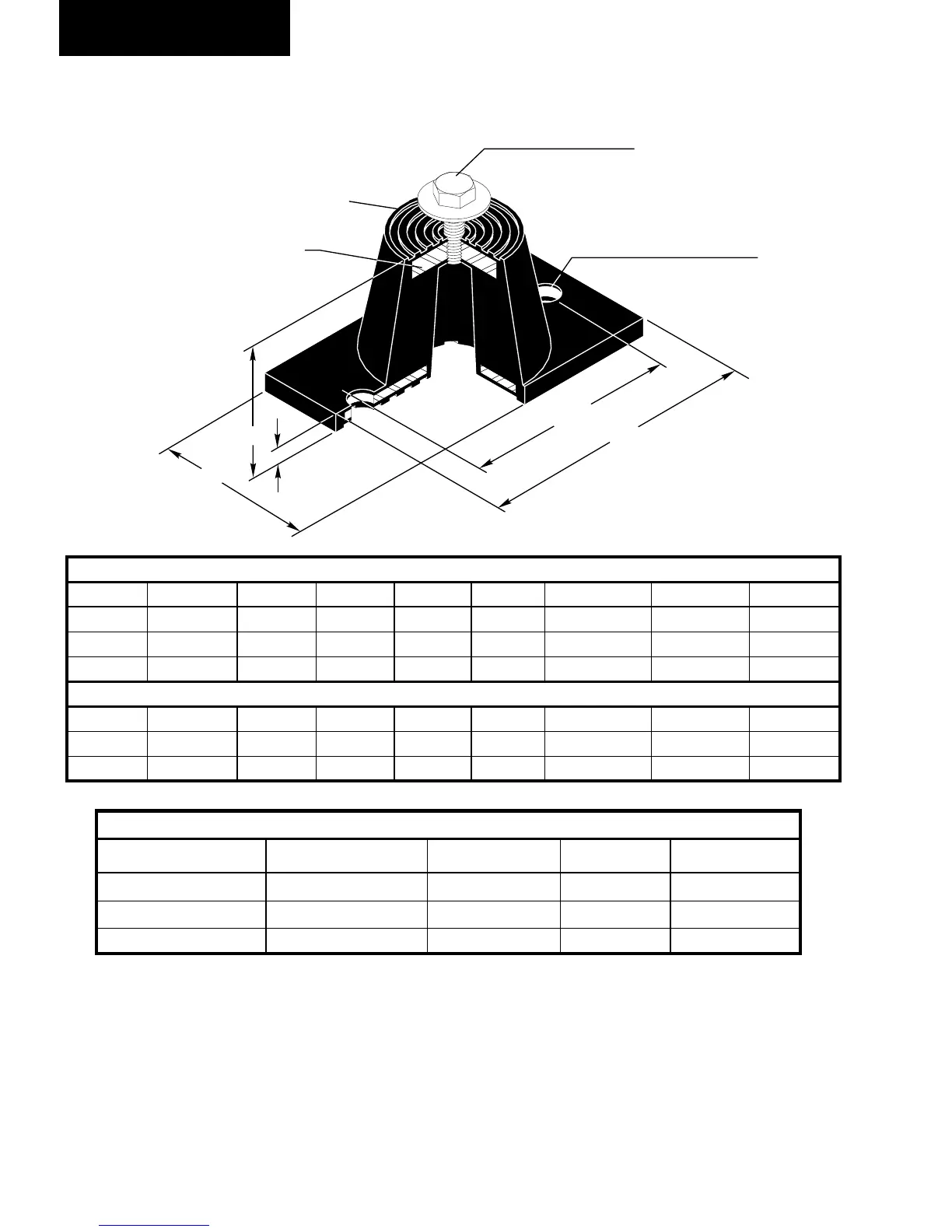

ND-X NEOPRENE ISOLATOR SPECIFICATIONS
"CS" Cap Screw
BC
"MBD" Max. Bolt Dia.
Steel Plate - Top
&
Bottom Neoprene
covered to prevent
corrosion
L
T
H
W
D
** Value is de-rated by 15%
INSTALLATION OF NEOPRENE MOUNTS
It is not neccesary to bolt the mountings to a concrete pad in most cases. Mountings should always be bolted to the
chiller rails. When mountings and the chiller are installed on steel framing above the ground, the mountings should
be bolted to the steel framework. Lower the chiller on to the mountings evenly to avoid placing excessive weight
on individual isolators.
LD10569
TECHNICAL DATA
ENGLISH
SIZE D H L T W BC CS MBD
ND-C 2-9/16 2-3/4 5-1/2 1/4 2-5/16 4-1/8 1/2-13x1" 1/2"
ND-D 3-3/8 2-3/4 6-1/4 5/16 4 5 1/2-13x1" 1/2"
ND-DS 3-3/8 2-3/4 6-1/4 5/16 4 5 1/2-13x1" 1/2"
SI
ND-C 65.1 69.9 139.7 6.4 58.7 101.9 1/2-13x1" 13
ND-D 85.7 69.9 158.8 7.9 101.6 127.0 1/2-13x1" 13
ND-DS 85.7 69.9 158.8 7.9 101.6 127.0 1/2-13x1" 13
