151
JOHNSON CONTROLS
FORM 201.21-NM1 (616)
6
COMPRESSOR COMPONENTS
LD10596

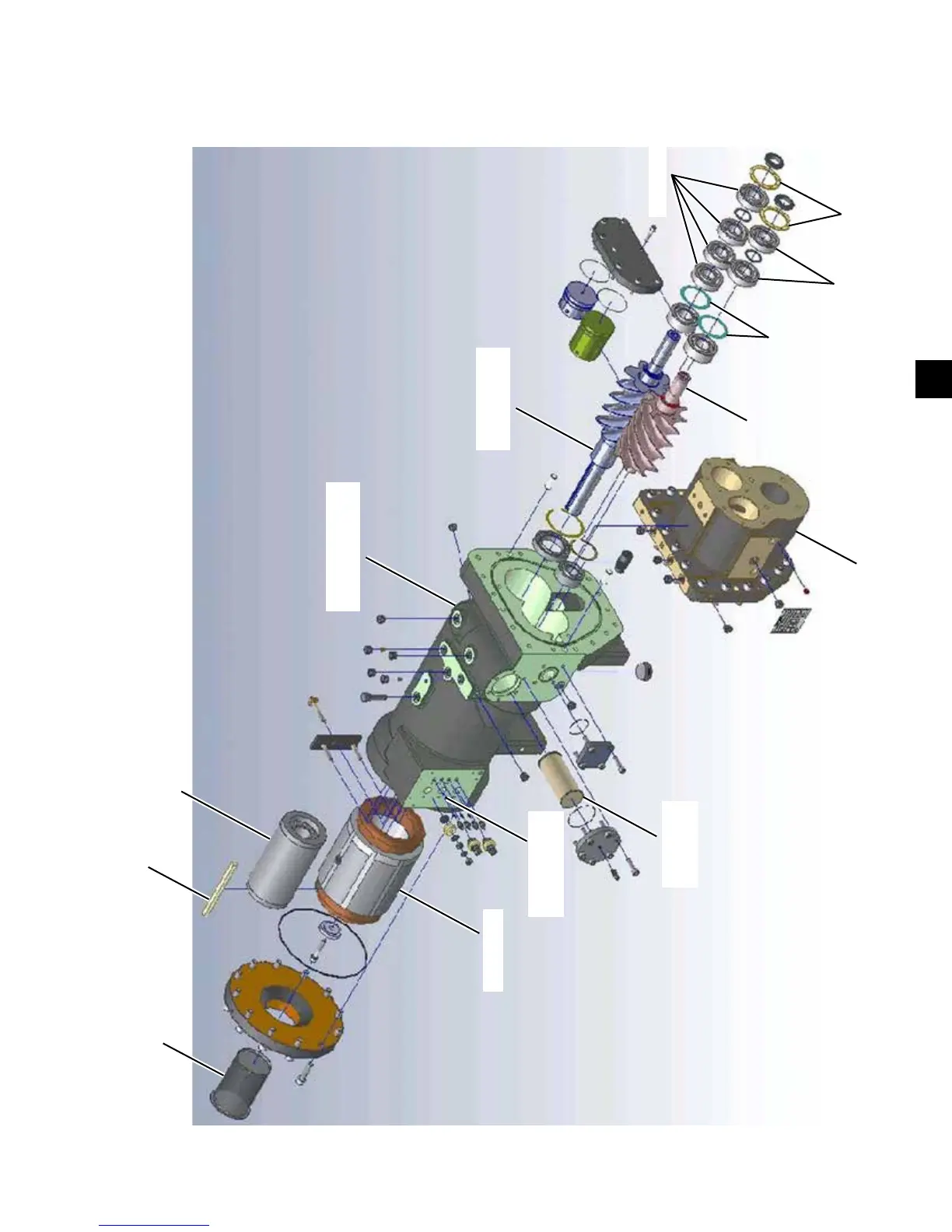

FIG. 27 - COMPRESSOR COMPONENTS
SUCTION
STRAINER
STATOR
KEY
ROTOR
MOTOR/ROTOR
HOUSING
MALE
ROTOR
FEMALE
ROTOR
BEARINGS
SHIMS
SHIMS
BEARINGS
DISCHARGE
HOUSING
OIL
FILTER
MOTOR
TERMINALS
STATOR
