102
SECTION 7 – OPTIVIEW LT OPERATION
INTRODUCTION
The 7 inch resistive touch screen HMI is used to congure unit
running parameters and for readout. It is protected by an IP55
insulation panel.
The controller is connected with the mainboard by RS485
communication port. Different access levels are available
through the button at the upper right of the screen.
The initial password for customers to access
“Operator” level is 9017. Remember the password
entry is for one-shot operation and the access level
will return back to “Viewer” as the screen dims
down.
TABLE 28 – ACCESS LEVELS

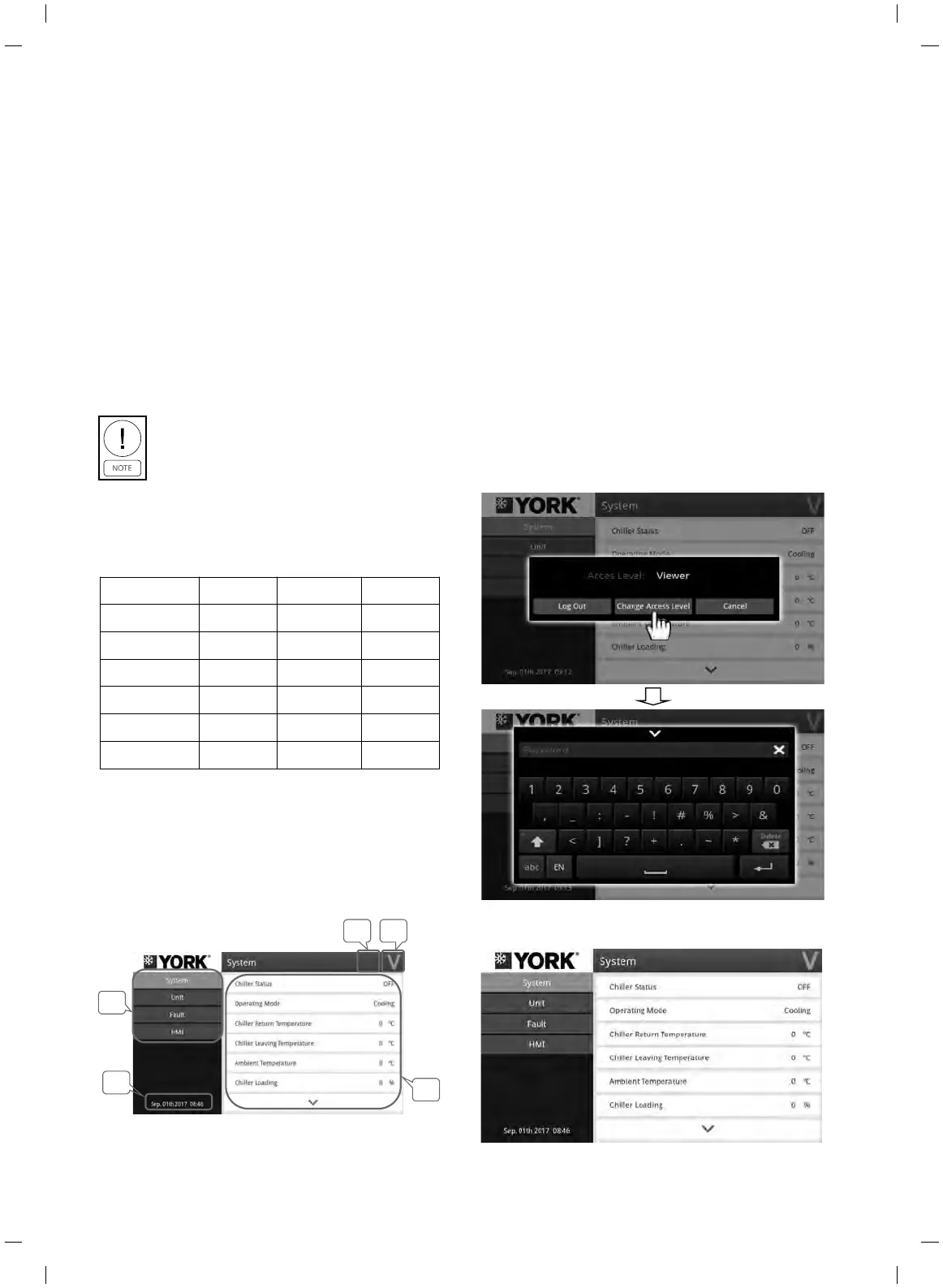

MAIN INTERFACE
A starting process of about one minute is required before the
window comes out, as shown below. The default privilege level
of operation is Visitor at the first startup and only part of the
parameters are visible. The interface is divided into ve areas.
Area 1: System operating status;
Area 2: Functions;
Area 3: Date and time;
Area 4: Faults (hide if no fault exists);
Area 5: Privilege level.
PRIVILEGE MANAGEMENT
Press the icon in Area 5 to enter the privilege management
interface. Password will be required to elevate the operation
level. A pop-up will appear if the password is incorrect and
the input will be locked for 15 minutes if wrong passwords are
keyed in for ve times consecutively.
SYSTEM
Functions Viewer Operator Service
System
√ √
√
Unit
√ √ √
Fault
√ √ √
Diagnosis
× × √
Schedule
× √ √
HMI
√
√
√
1
4
5
2
3
SECTION 7 – OPTIVIEW LT OPERATION
