FORM NO.:6U6K-B01E-NB-EN
JOHNSON CONTROLS
110

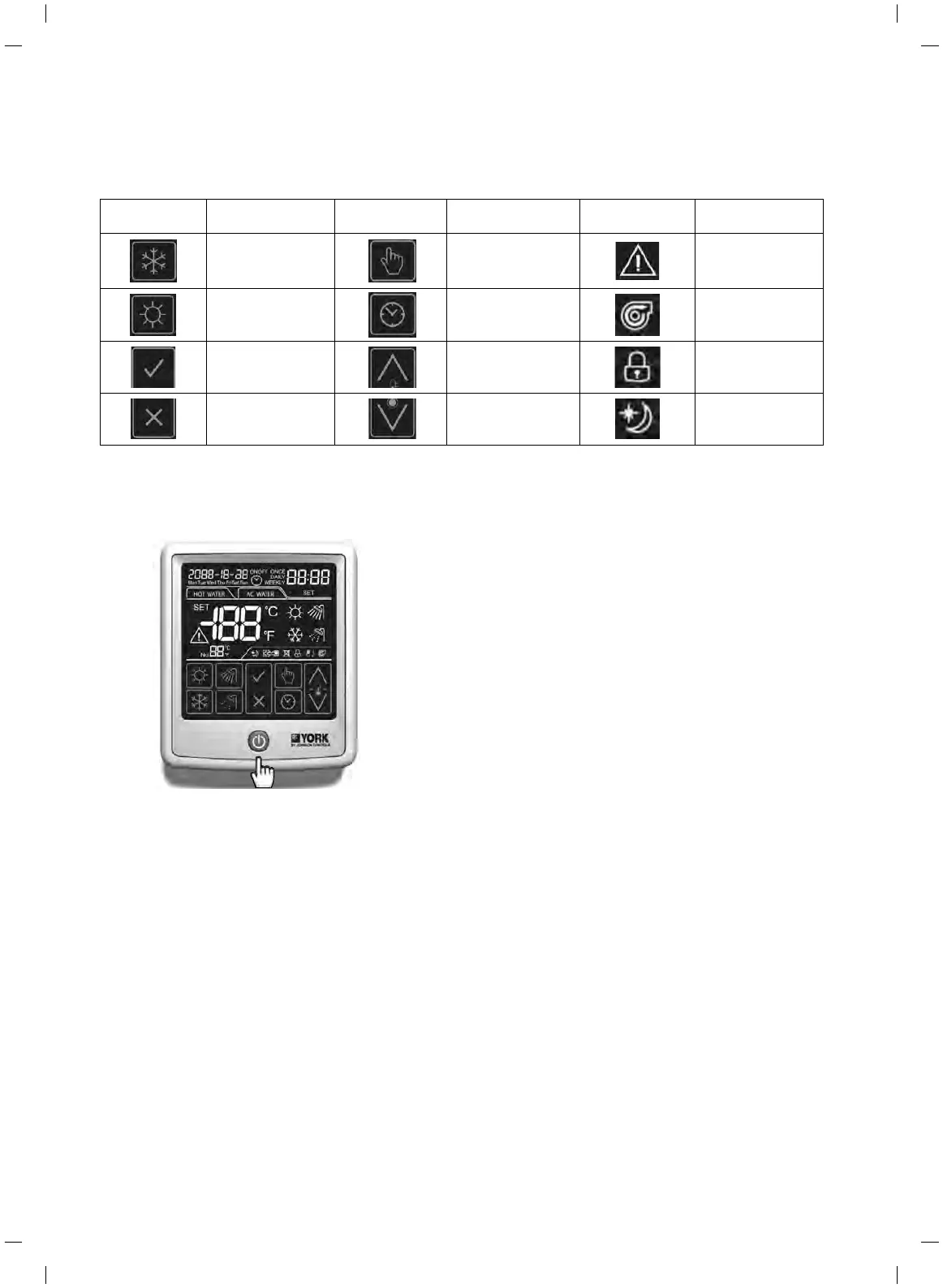

KEY MEANING KEY MEANING KEY MEANING
COOLING FUNCTION FAULT
HEATING TIMER PUMP
CONFIRM UP LOCK
CANCEL DOWN LOW SOUND
TABLE 30 – HMI DISPLAY PRIVILEGE LEVELS
BASIC OPERATIONS
Start and Stop the Unit
Press the button below the screen to start or stop the unit.
Operating Mode
Press the key of “COOLING” or “HEATING” to set or switch
operating modes. The “SET” icon will be showing during
the process. Press “CONFIRM” to finish the setting, or the
controller will autosave if there’s no operation for 10 seconds.
Press “CANCEL” to abandon the setting.
Liquid Temperature Setpoint
Press “UP” or “DOWN” key in daily display screen to set target
liquid temperatures. Press “CONFIRM” to finish the setting,
or the controller will autosave if there’s no operation for 10
seconds. Press “CANCEL” to abandon the setting.
ADVANCED OPERATIONS
Date and Time
Press the “TIMER” and “FUNCTION” keys simultaneously
for 5 seconds to enter the Date and Time setting screen. The
“TIMER” and “SET” icons will flicker while the function is
activated.
Press “TIMER” to toggle between Year, Month, Day, Hour and
Minute. Press “UP” and “DOWN” icons to modify the values.
Touch and hold the icons to increase or decrease the values by
5 each time.
Press “CONFIRM” to save the value and auto switch to the
next setting. Press “TIMER” to cancel the operation and auto
switch to the next setting.
The setting will terminate if there’s no operation for 5 seconds
or “CANCEL” is pressed.
Schedule Timer
Press the “TIMER” key for 5 seconds to enter Schedule Timer
setting screen. The “TIMER”, “SET” and “ON” icons will
icker while the function is activated.
The Schedule Timer will toggle between Timer ON, Timer OFF
and Timer Mode.
Press “FUNCTION” to select Hour and Minute which are
able to be set by “UP” and “DOWN” keys. Once the setting is
nished, press “CONFIRM” to save the value and auto switch
to the next setting. Press “TIMER” to cancel the operation and
auto switch to the next setting.
SECTION 8 – WIRE CONTROLLER OPERATION
