FORM NO.:6U6K-B01E-NB-EN
JOHNSON CONTROLS
76

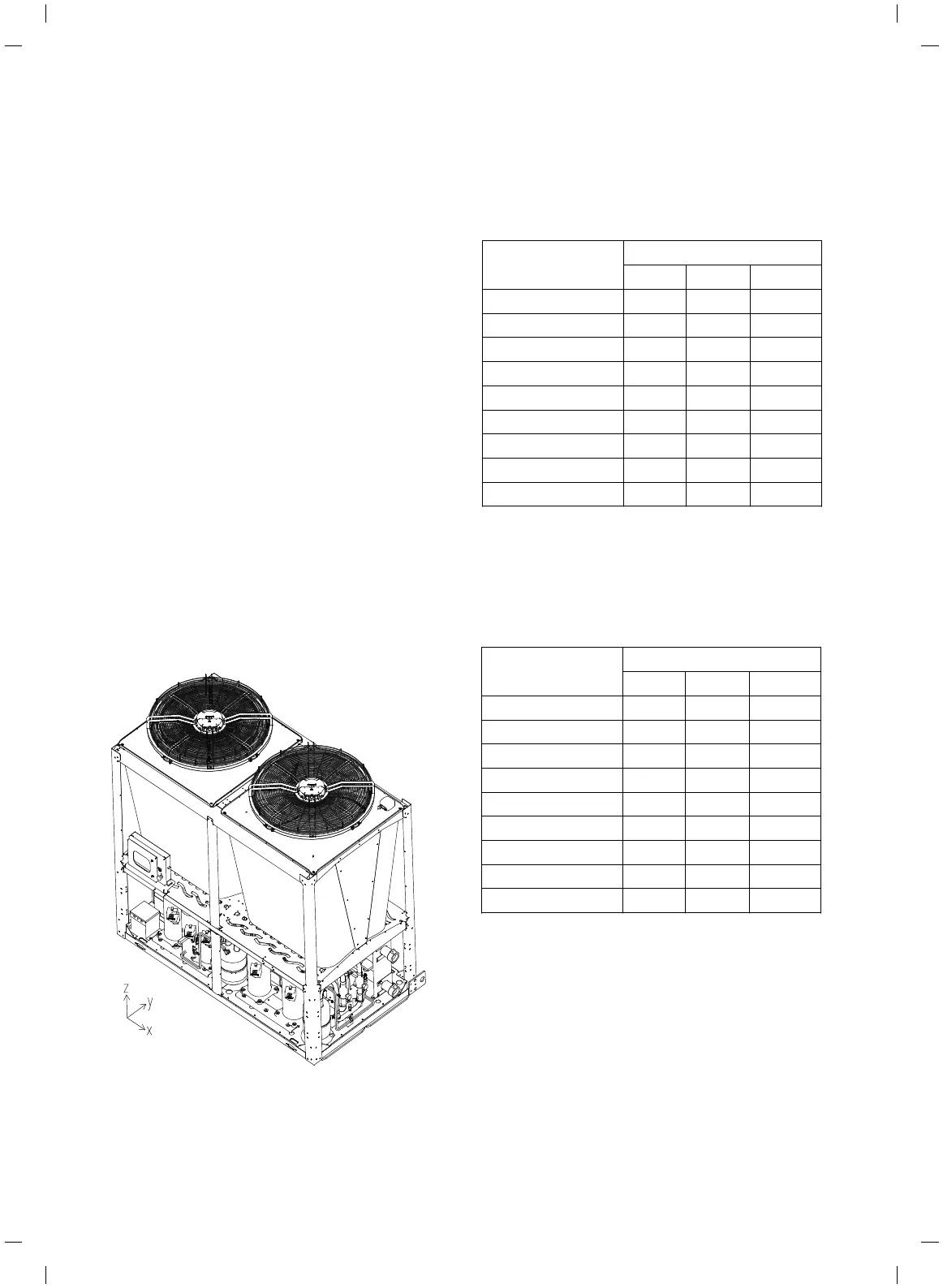

TABLE 24 - GRAVITY CENTER OF STANDARD UNIT
Note
Co-ordinates measured from geometric center of the unit.
TABLE 25 - GRAVITY CENTER OF UNIT WITH HYDRO
KIT
Note
1.Co-ordinates measured from geometric center of the unit
(excluding Hydro Kit);
2.The units with xed speed pump have the same dimensions
and weight distributions as base models.
ISOLATORS – WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS
GENERAL
Weights of specic unit models vary signicantly as options are
added. As a result, total weights, weights at individual isolator
positions, and actual isolator selection at each position cannot
be published due to the vast number of possible combinations.
This information will be available when the specic unit/ option
selection is made from the local Johnson Controls sales ofce.
Be aware, weights may change with each option along with
possible isolator changes. Weights and isolators may need to be
recalculated when the option selections are changed.
Whenever the isolator option is ordered, the isolators will be
shipped loose with the unit. Packed with the unit is a mass
distribution label indicates the loads specically for each unit,
based on the option selection. The label will be similar to the
ones shown below. The label will show the isolator locations
along with the weight in kilograms at the specific location,
isolator position, and location measurements for each isolator.
CENTER OF GRAVITY
SECTION 5 – TECHNICAL DATA
YMAA/YMPA
Without Hydro Kit
Gravity Center (mm)
x y z
0045 -1.1 -20.6 -104.3
0065 7.1 -2.1 -126.2
0080 33.1 -25.3 -98.5
00100 40.6 -27.7 -115.8
00130 3.6 -46.8 -142.2
0160 5.4 -71.6 -139.1
0200 -11.2 -112.9 -132
0230 -2.8 34.5 -147.1
0260 -11.4 -4.2 -148.8
YMAA/YMPA
With Hydro Kit
Gravity Center (mm)
x y z
0045 236.3 -30.4 -368.9
0065 222.2 -12.8 -376.2
0080 253.6 -20.7 -221.9
00100 248.5 -23.6 -325.4
00130 218.4 -43.4 -302.9
0160 10.6 -65.5 -134.6
0200 -4.3 -102.9 -129.6
0230 8.1 32.7 -160
0260 -0.2 -3.2 -161.2
Note
X-axis is in parallel with liquid outler direction.
