103JOHNSON CONTROLS
FORM NO.: 6U6K-B01E-NB-EN

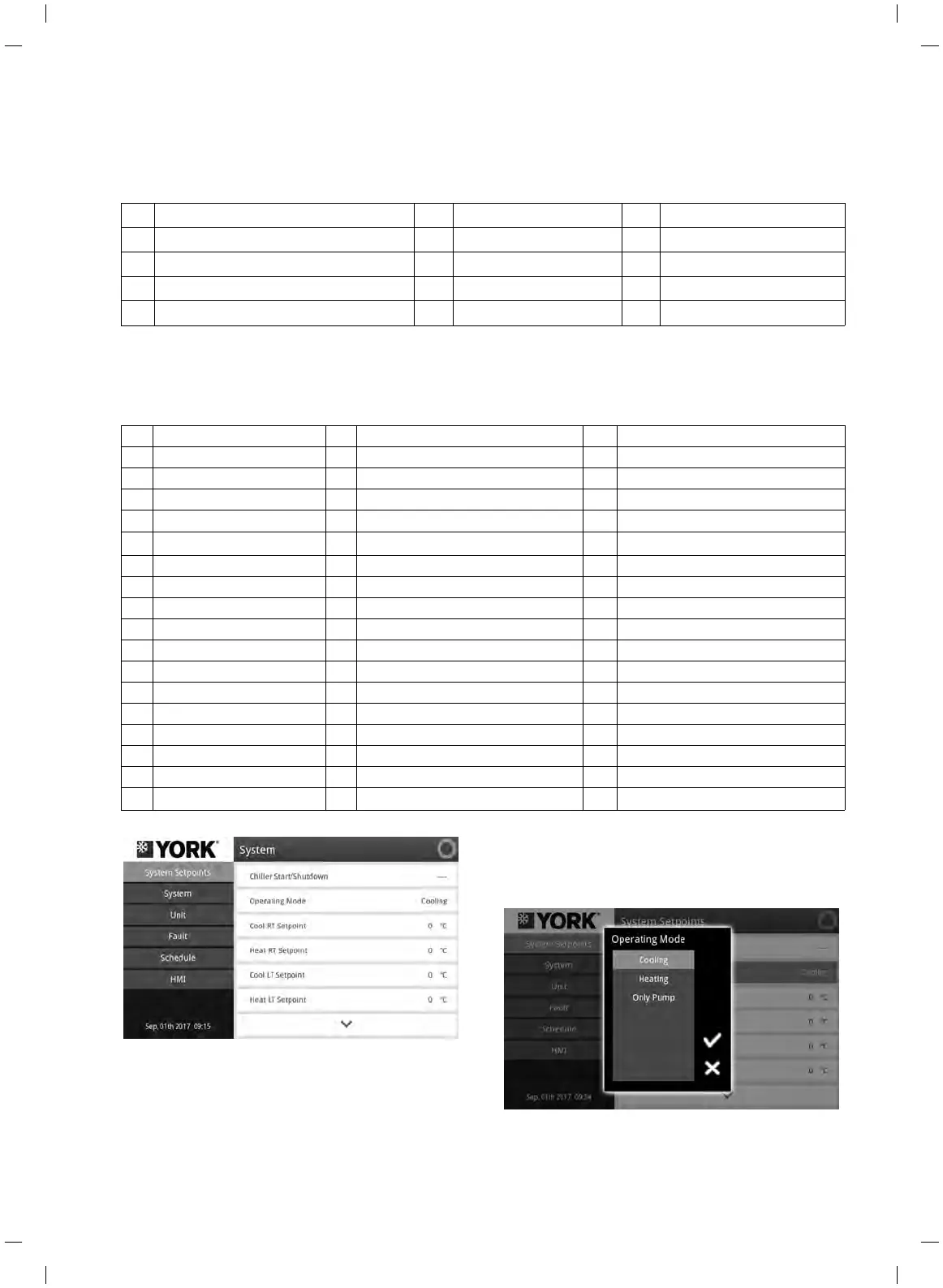

This is used for system running status readout. The following parameters will be displayed in order:
SYSTEM SETPOINTS
The user can set unit running mode and water temperature set points in this display page. This is for Operator and Service level
permissions. Following is the order of the programmable parameters that will appear:
1 Chiller Status 6 Chiller Loading 11 Low Noise
2 Operating Mode 7 Available Mode 12 Pump Status
3 Chiller Return Temperature 8 Total Run Hours 13 Comp. Run Status
4 Chiller Leaving Temperature 9 Anti-freezing 14 Oil Preheat
5 Ambient Temperature 10 Defrosting
There are three basic inputs to change unit running modes and
parameters.
Option:
SECTION 7 – OPTIVIEW LT OPERATION
1 Chiller Start/ Shutdown 19 Heater Off Water Temp Diff. 37 Oil Pre-heat Time
2 Operating Mode 20 Heater On Ambient Temp. 38 Unit Cooling Target SSH
3 Cool RT Setpoint 21 Low LT Alarm 39 Unit 1 Heating Target SSH
4 Heat RT Setpoint 22 High LT Alarm 40 Manual Defrost Unit
5 Cool LT Setpoint 23 Defrost Temp. (Ambient Temp.＜0℃) 41 Limited Hours
6 Heat LT Setpoint 24 Defrost Temp. (Ambient Temp.≥0℃) 42 Cooling Min. Ambient Temp. Limit
7 Noise Reduction 25 Defrost Time LimitDefrost Interval 43 Heating Max. Ambient Temp. Limit
8 Default Setting 26 Coil Temp. After Defrost 44 Cooling LT Setpoint A (CE Standard)
9 Cooling Control Select 27 Mode Control Select 45 Cooling LT Setpoint B(CE Standard)
10 Heating Control Select 28 ON/ OFF Control Select 46 Cooling LT Setpoint C (CE Standard)
11 Temp. Control Cycle 29 Memory In Power Off or On/ Off 47 Cooling LT Setpoint D (CE Standard)
12 Water Temp. Control Diff. 30 Clear Running Time 48
13 Unit Quantity 31 ModBus Termina
l Quantity 49
14 BAS Modbus Address 32 EXV Cooling Initial Steps 50
15 Chiller RT Offset 33 EXV Heating Initial Steps 51
16 Chiller LT Offset 34 EXV Cooling Min. Steps 52
53
17 WT Pulldown Rate 35 EXV Heating Min. Steps
18 Heater On Water Temp Diff. 36 EXV Defrost Initial Steps
Cooling LT Setpoint D (CE Standard)
Heating LT Setpoint A (CE Standard)
Heating LT Setpoint B (CE Standard)
Heating LT Setpoint C(CE Standard)
Heating LT Setpoint D (CE Standard)
Heating LT Setpoint E (CE Standard)
