Conrm Action:
Use “Unit Selection” to switch between the units if modular
connected.
UNIT

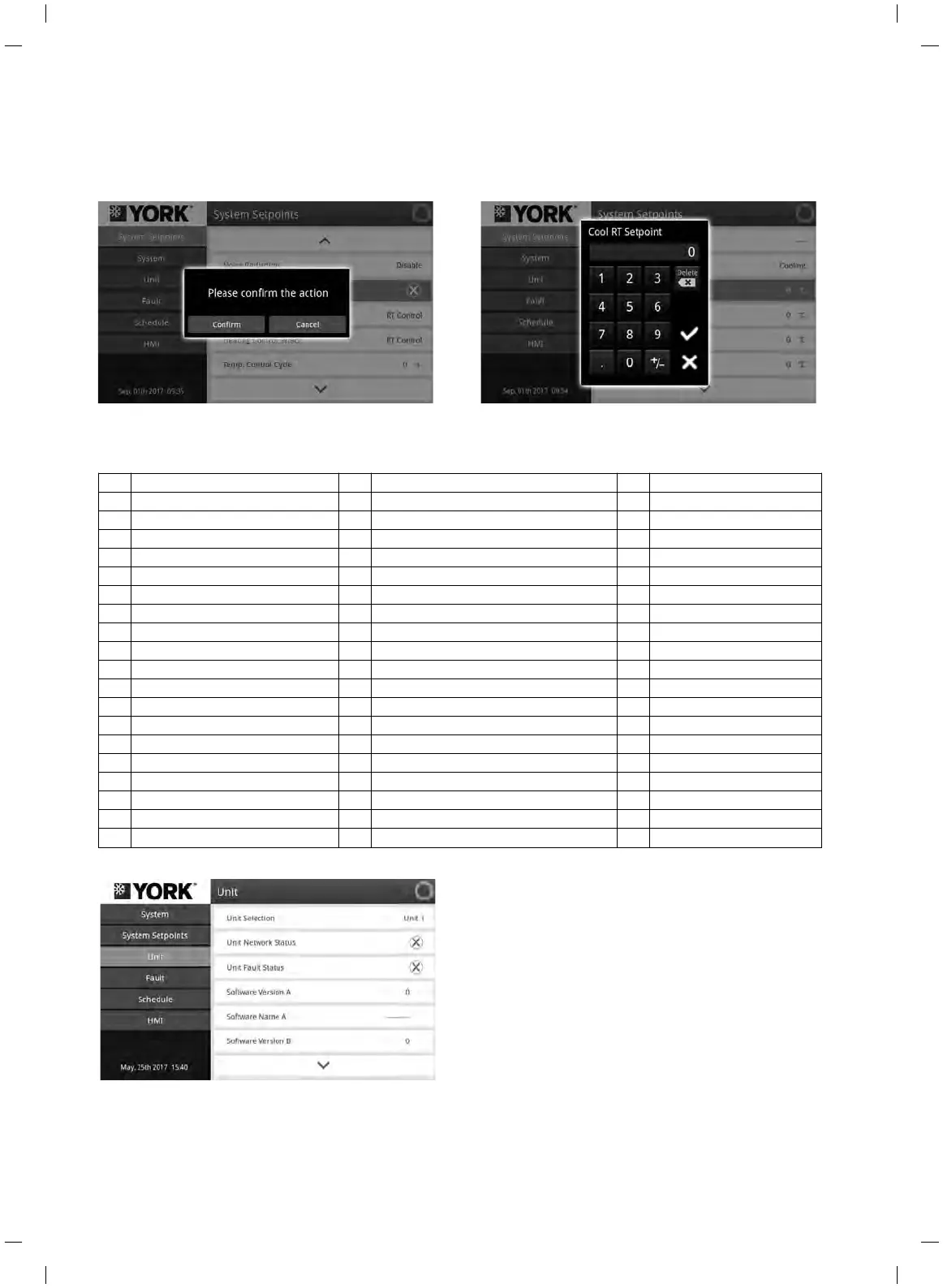

Selection unit to view the operating status of different modules in the network. The following parameters will appear in order:
Inlling:
2 Unit Network Status 22 Ckt2 Suct Pr 42 Ckt1 Fan Motor
3 Unit Fault Status 23 Ckt1 Disch Pr 43 Ckt1 Fan Motor Speed
4 Software Version A 24 Ckt2 Disch Pr 44 Ckt1 Comp.1
5 Software Name A 25 Ckt1 Fan Motor Fault 45 Ckt1 Comp.2
6 Software Version B 26 Ckt2 Fan Motor Fault 46 EVA Heater
7 Software Name B 27 Ckt1 HPS and Comp.1/2 Overload 47 Ckt1 Oil Heater
8 Unit Loading 28 Ckt1 LPS 48 Fault Output
9 Chiller Return Temperature 29 Chiller WFS 49 Chiller Pump
10 Ambient Temperature 30 Cool/Heat Sw
itch 50 Water Heater
11 Ckt1 Coil Temp. 31 ON/OFF Switch 51 VSD Cooling Fan
12 Ckt2 Coil Temp. 32 External Interlock 52 Ckt2 Fan Motor
13 Unit Leaving Temperature 33 Power Protector 53 Ckt2 Fan Motor Speed
14 Chiller Leaving Temperature 34 Ckt2 HPS and Comp1/2 Overload 54 Ckt2 Comp.1
15 Ckt1 Suct Temperature 35 Ckt2 LPS 55 Ckt2 Comp.2
16 Ckt2 Suct Temperature 36 Unit WFS 56 Ckt1 FWV
17 Ckt1 Comp1 DPT 37 Ckt2 EEV 57 Ckt2 FWV
18 Ckt1 Comp2 DPT 38 Ckt1 Fan Speed 58 Ckt1 EEV
20 Ckt2 Comp2 DPT 40 Inverter Compressor Speed
SECTION 7 – OPTIVIEW LT OPERATION
