41JOHNSON CONTROLS
FORM NO.: 6U6K-B01E-NB-EN
SECTION 4 – INSTALLATION
CONTROL WIRING
Communication Wiring – Optiview LT
Communication Wiring – Wire Controller

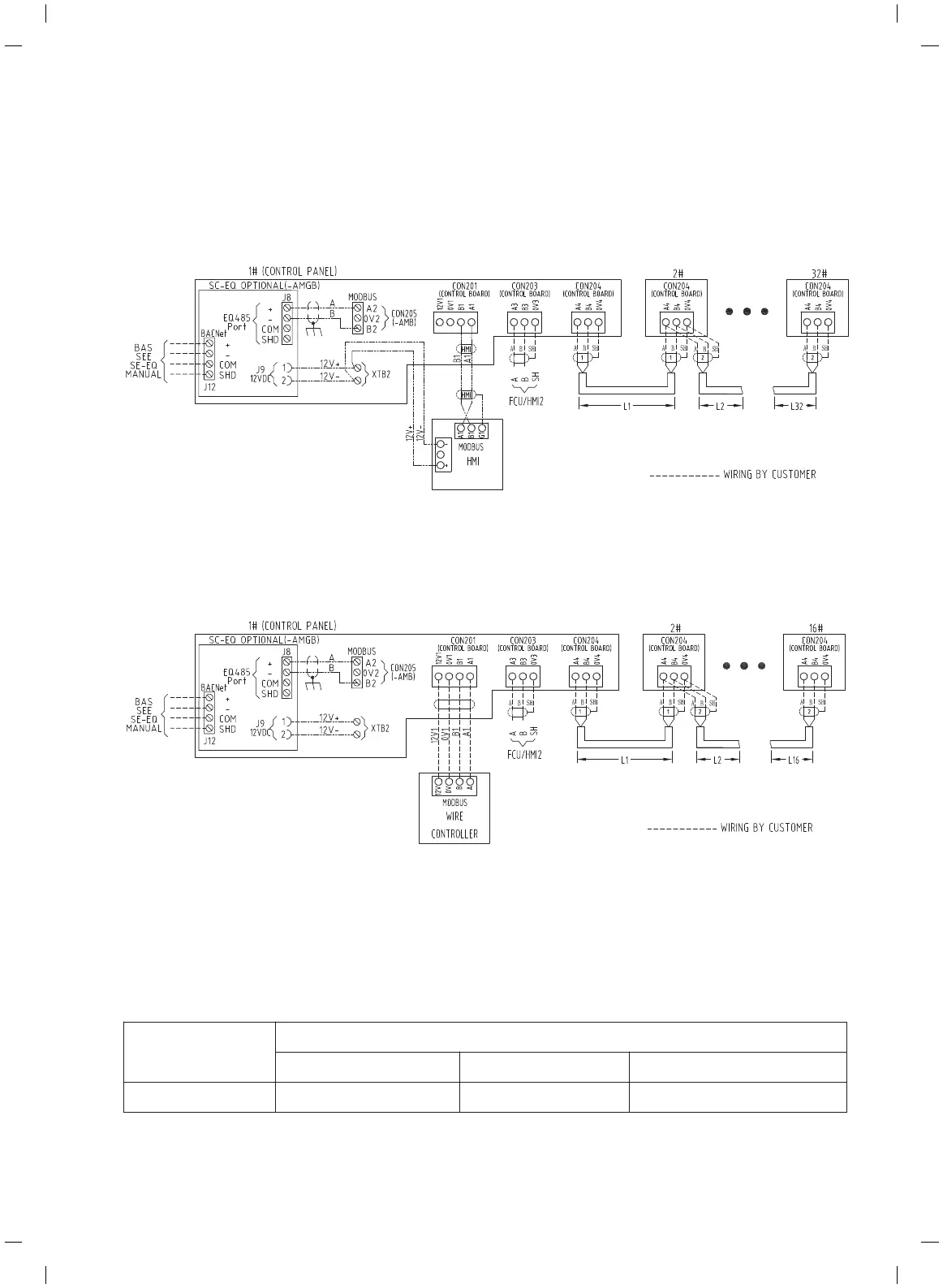

FIGURE 22 – OPTIVIEW LT COMMUNICATION WIRING
FIGURE 23 – WIRE CONTROLLER COMMUNICATION WIRING
Note
Optiview LT can be rewired to CON203 if wire controller is connected.
TABLE 3 – COMMUNICATION CABLE REQUIREMENT
TOTAL LENGTH
L﹤100 m 100 m﹤L﹤500 m L﹥500 m
CABLE TYPE RVVPS 2×0.75mm
2
RVVPS 2×1.0mm
2
CONTACT JCI SERVICE
L=L1+L2+L3+…+Ln (n=32 or n=16, unit: m)
