63JOHNSON CONTROLS
FORM NO.: 6U6K-B01E-NB-EN
DIP SWITCH SETTING
SECTION 5 – TECHNICAL DATA
Microboard DIP Switch
Two DIP switches, SW301 and SW302, are located on the IPU3 micro board. SW301 is an eight-digit switch and the first five digits are
used to set communication addresses for each module. It is converted from decimalism to binary.
Address Setting
The control system allows a maximum of 32 micro boards combined as a communication network. The addresses are set

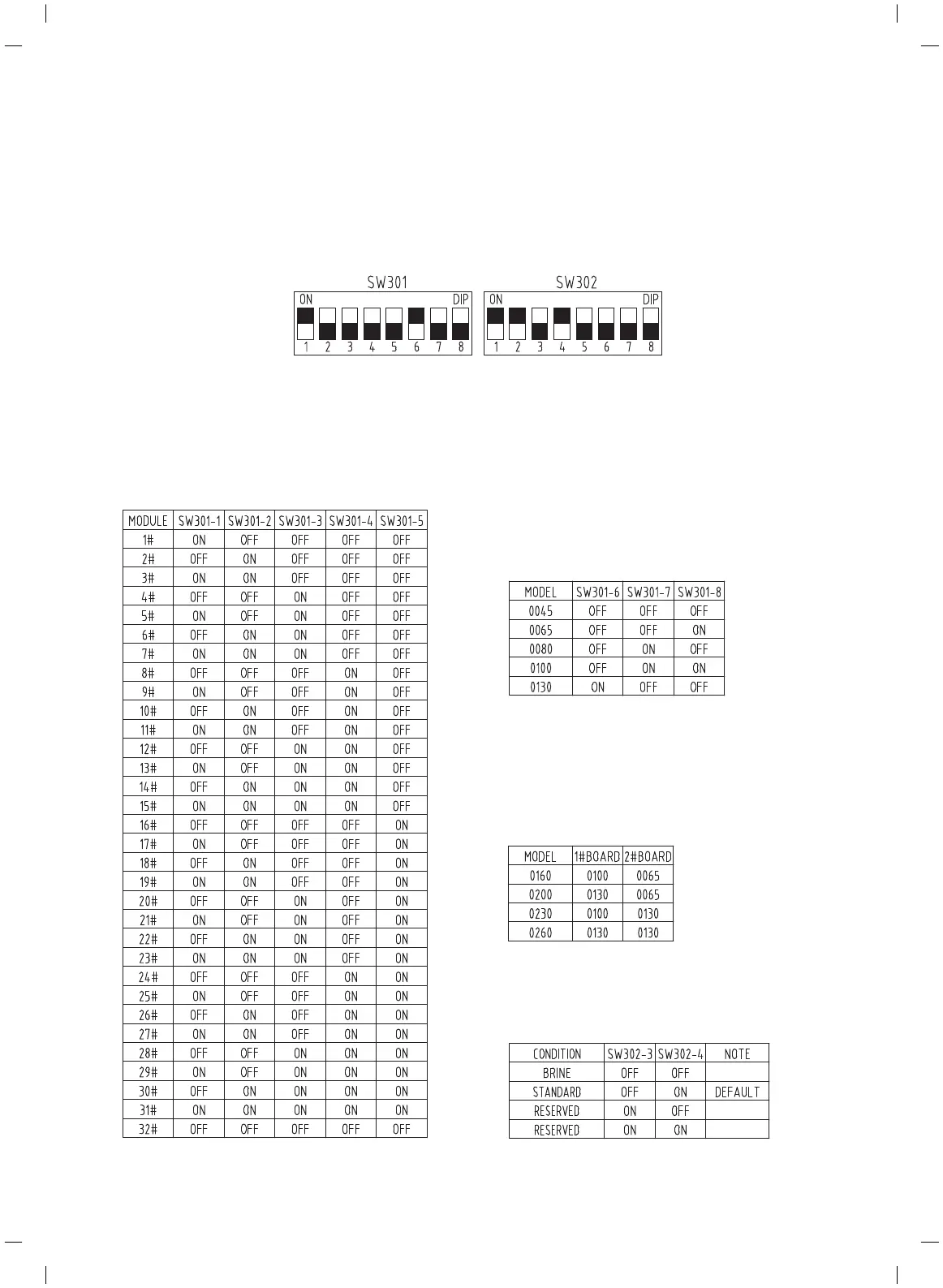

FIGURE 34 - MICROBOARD DIP SWITCH
TABLE 19 - DIP ADDRESS SETTING
Model and Function Setting
The last 3 digits of SW301 are used to set models.
TABLE 20 - MODEL SETTING
as follows.
SW302-3 and SW302-4 are used to set applications.
TABLE 22 - FUNCTION SETTING
Note
connected thus with two mainboards individually and differently
set before delivery.
Large models above 130 kW are smaller models physically
TABLE 21 - LARGE MODEL SETTING
