Data Capture
122

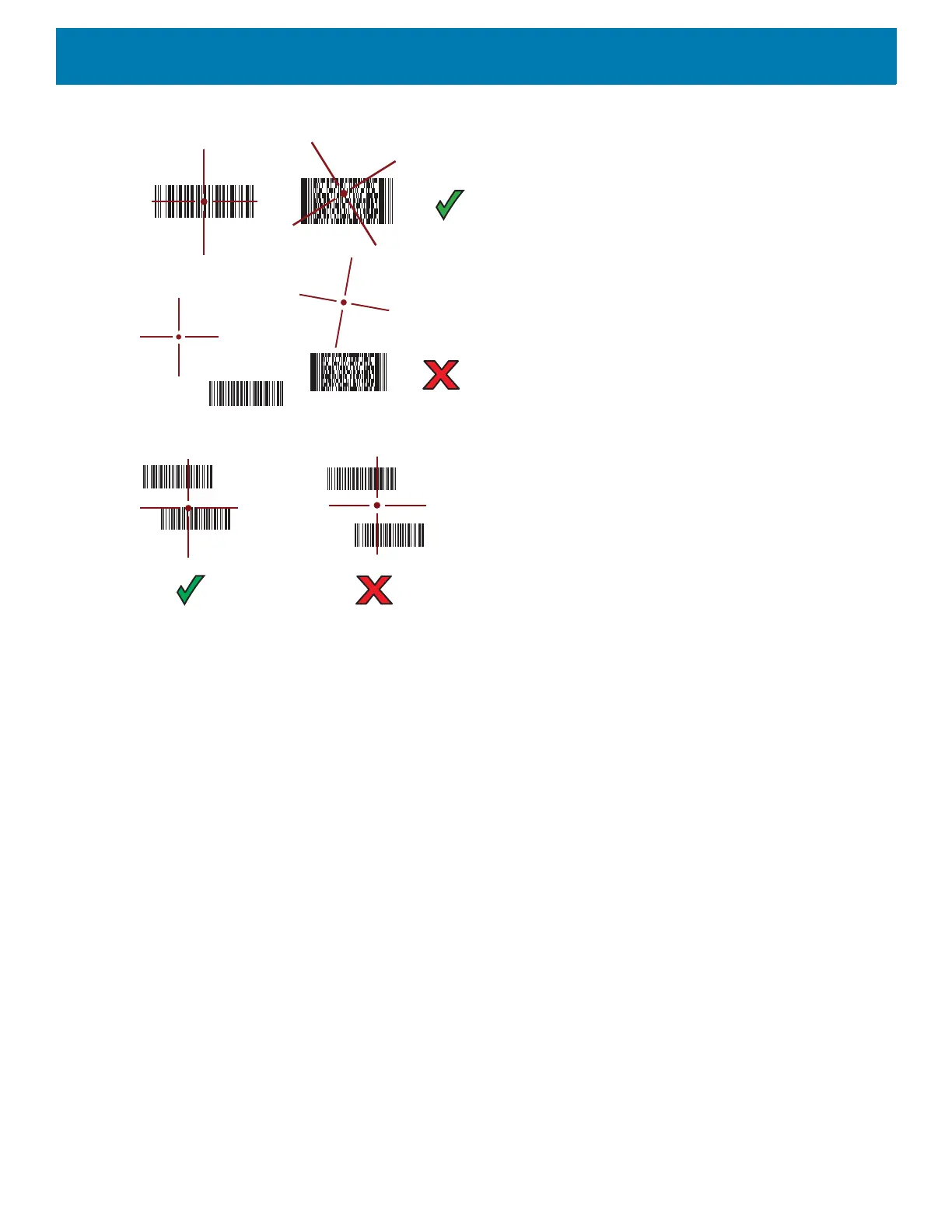

Figure 93 RS6000 Aiming Pattern
Figure 94 RS6000 Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
Scanning with RS507/RS507X Hands-Free Imager
To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows the
user to enable the scanner to decode barcode data and display the barcode content.
To scan with the RS507/RS507X:
1. Pair the RS507/RS507X with the device. See Pairing Using Simple Serial Interface on page 128
or Pairing
in HID Mode Using Near Field Communication on page 127
for more information.
2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).
To Next Page
