Zebra TC52 User Manual

Accessories
177

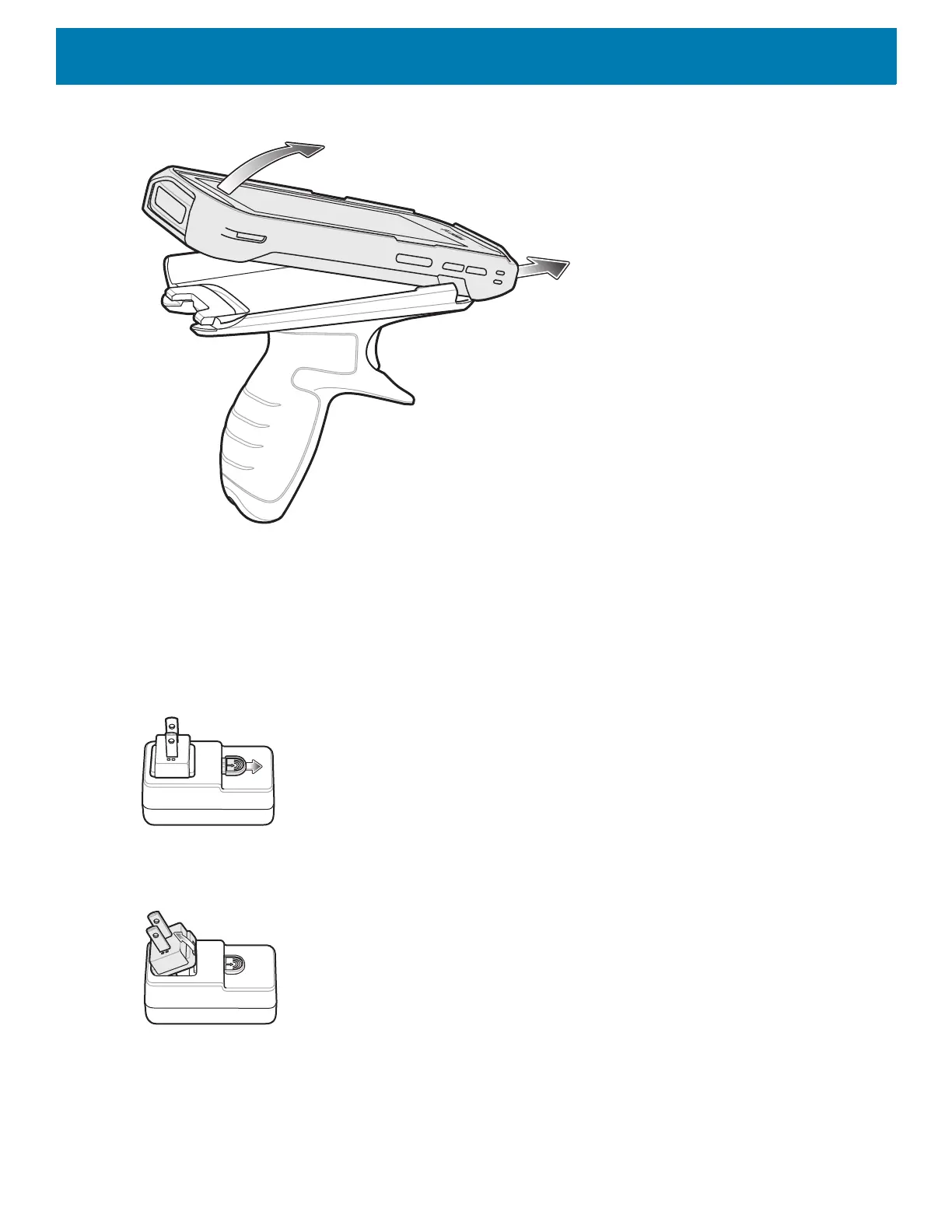

Figure 167 Remove Device from Trigger Handle
Power Supply
Use the power supply with the Rugged Charge/USB Cable to charge the device. The power supply comes in
various configuration with different plug adapters for use internationally. To change the plug adapters:
1. Pull the release button down.
Figure 168 Pull Release Button
2. Rotate the plug adapter up and out of the power supply.
Figure 169 Lift Plug Adapter
3. Insert the replace plug adapter into the power supply.

Zebra TC52 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black
Phone function	Yes
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
USB 2.0 ports quantity	1
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4150 mAh
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
GPS (satellite)	No
Operating system installed	Android
Bluetooth version	5.0
Rear camera aperture number	2.2
Front camera aperture number	2
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
