INTRODUCTION
SPECIFICATIONS
1 - 9
Weight
AV1 1.84 kg (4.06 lbs)
AV2 (standard) 2.32 kg (5.11 lbs)
AV2 (explosionproof) 2.95 kg (6.51 lbs)
Temperature limits
Operating
AV11/2 -40°C to 82°C (-40°F to 180°F)
3
AV15/6 -20°C to 127°C (-4°F to 250°F)
3
AV2 -20°C to 82°C (-4°F to 180°F)
3
Storage
AV11/2 -40°C to 93°C (-40°F to 200°F)
AV15/6 -20°C to 127°C (-4°F to 250°F)
AV2 -20°C to 82°C (-4°F to 180°F)
Humidity limits
Operating 0% to 95% noncondensing
Storage 0% to 95% noncondensing
NOTES:
1. Performance testing performed on a ABB Type UP10 actuator.
2. Tested according to ISA-S75.13-1989
3. For operation below 4.4°C (40°F), dew point of the supply air must be 10°C (18°F) lower than the lowest expected operating temperature.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Table 1-3. Type AV1/2 Positioner Specifications
1
(continued)
Property Characteristic/Value

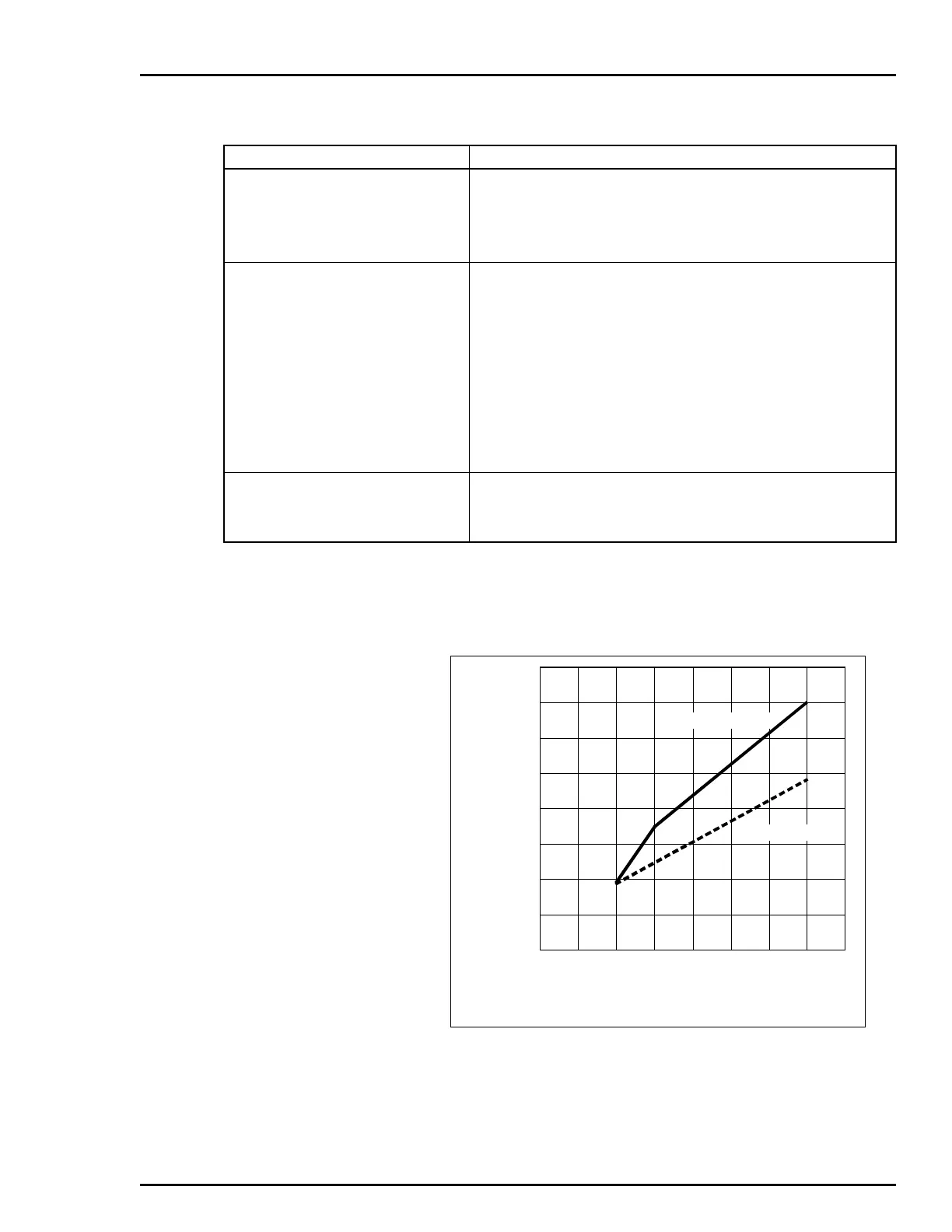

Figure 1-1. Capacity (Exhaust to Atmosphere)
FLOW
(SCFM)
SUPPLY PRESSURE
(PSIG)
40
30
20
T00769A
10
0
0 20304010 50 60 70 80
SUPPLY CAPACITY
EXHAUST CAPACITY
