INSTALLATION
MOUNTING TYPE AV POSITIONERS
3 - 4
NOTE: For Type AV27, the 4-20 mA input signal wires shall be
connected through an explosion-proof conduit entrance directly
to the I/P converter.
MOUNTING TYPE AV POSITIONERS
The Type AV positioner can be used with double acting or single acting
actuators. Mounting and external dimensions are shown in Figure 3-1.
Figure 3-5 shows a typical mounting arrangement using a ABB mounting
kit. Refer to Figure 9-23 for an exploded view and complete parts list of

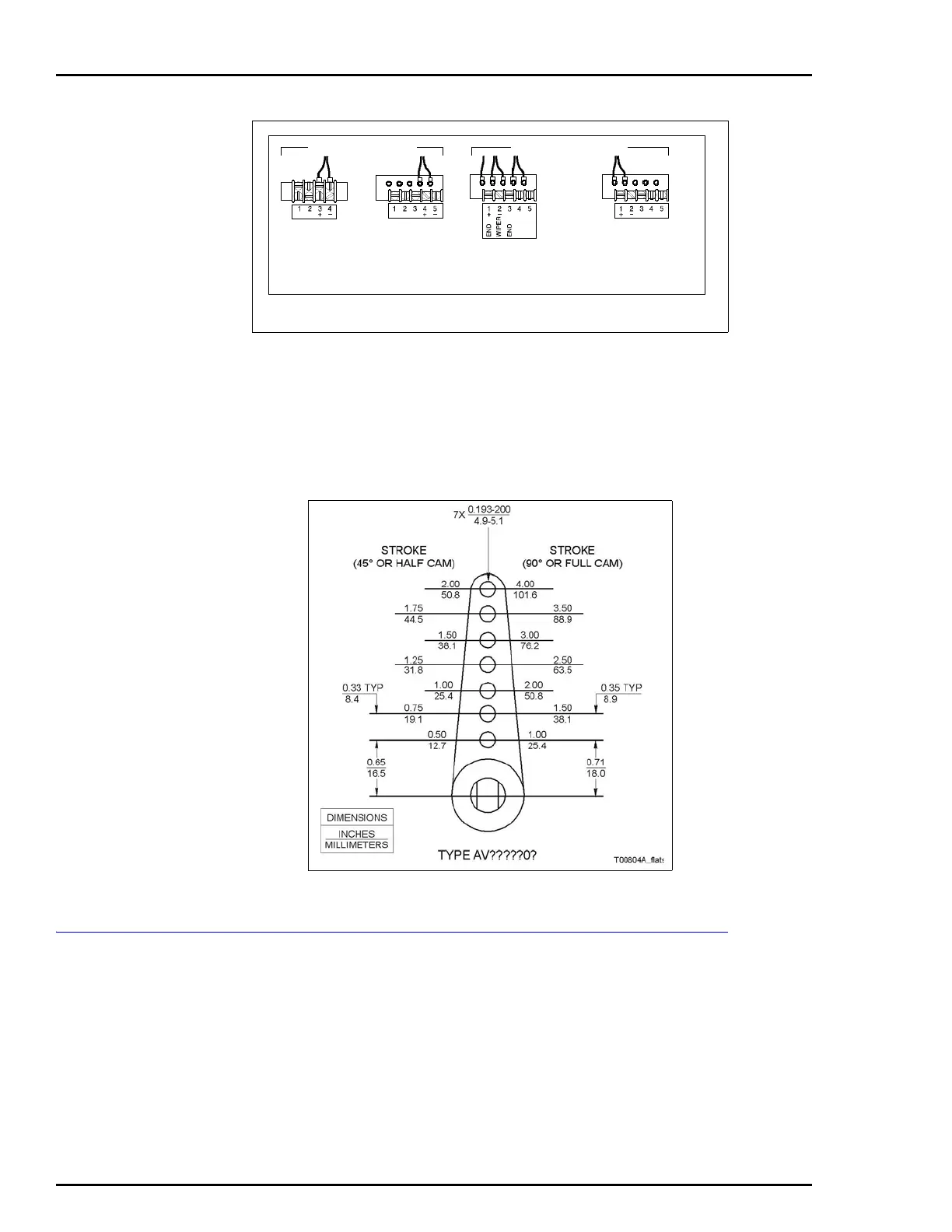

Figure 3-2. Electrical Connections
Figure 3-3. Drive Arm Connections
ELECTRICAL CONNECTIONS
CUSTOMER-SUPPLIED
SIGNAL
AV 2 3 ?? ??
WITH 5400253_1
HOUSING
AV23???? AV????2?
4-20 MA OUTPUT
POSITION
TRANSMITTER OPTION
AV????1?
P OT E N T IO M E T R IC R E S IST IV E
OUTPUT POSITION
TRANSMITTER OPTION
SIGNAL FROM POSITION
TRANSMITTER
T00928A
